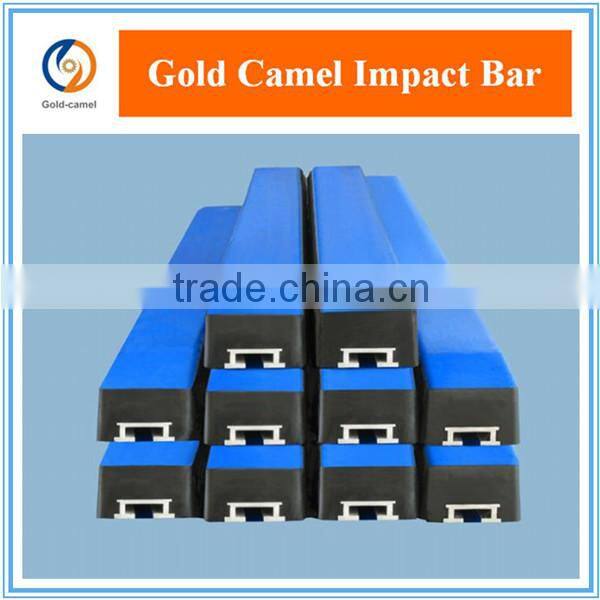

China Rubber Impact Bar for Conveyor Belt

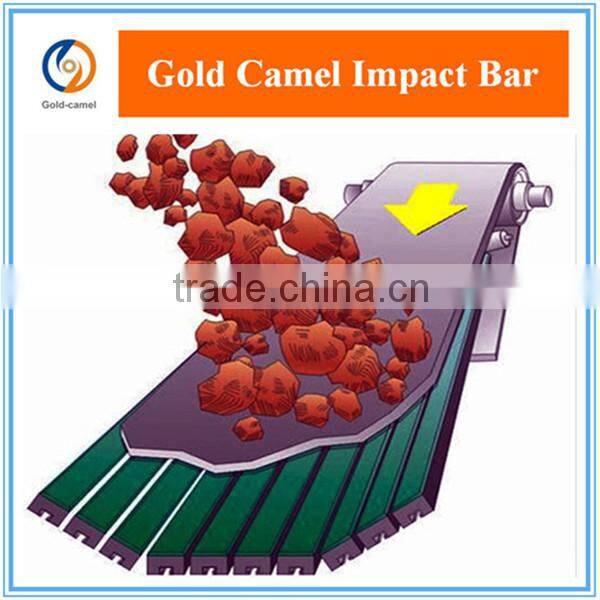

Impact bar is used in the loading area of the belt conveyor to replace the traditional cushion rollers. It’s designed to absorb impact loading which will dramatically reduce shock and stress loading to the structure.
Features
1. Avoids the damage to the belt through the contact between the bar and surface of belt.
2. The conveyor belt is stressed evenly in the loading area, which will reduce the daily maintenance cost. It effectively eliminates the spillage or scattering of the material caused by inequality of the stress on the belt.
3. The UHMW polyethylene surface has outstanding sliding properties, to reduce the frictional resistance to the minimum.
4. Ultra elastic rubber absorbs the impact in the maximum.

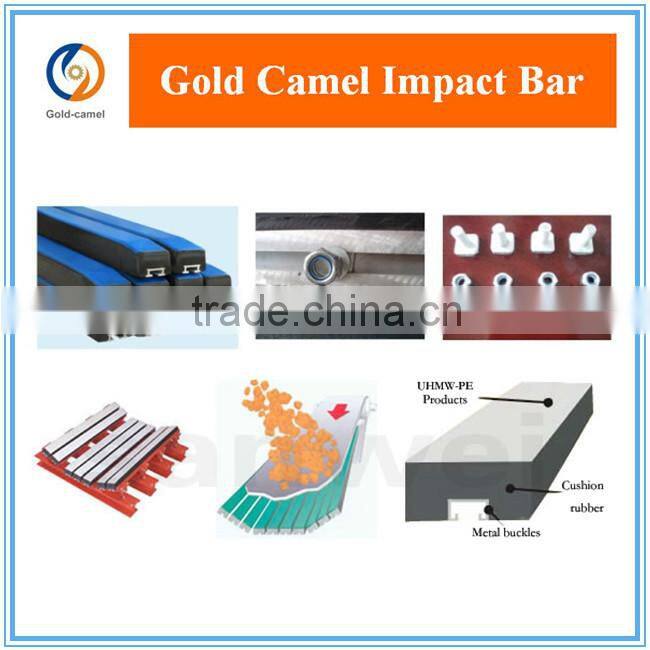

5. Each part of the impact bar is closely jointed by hot vulcanization.
6.“T-track” fastening device has different tightening points along the bar and make the joining strong and reliable, easy to install and remove.
TECHNICAL DATA:
| Item | Index | ||
| Normal |
High Elastic (H) |
Flame Retardant (S) |
|
| Rubber Hardness (Shore A) | 60±5 | 50±5 | 60±5 |
| UHMWPE Color | Blue | Blue | Brown |
| Coefficient of Surface Friction for UHMWPE | 0.07 | 0.07 | 0.10 |
| Surface Resistivity (Ω) | ≤3.0 x 108 | ||
| Flame Resistance Ability(Combustion by Alcohol Burner) | Average test time by flame combustion ≤6S | ||
| Adhesion (N/mm)≥ | Rubber & UHMWPE: 6.0 | ||
| Rubber &"T-slot" extruded metal construction:6.0 | |||

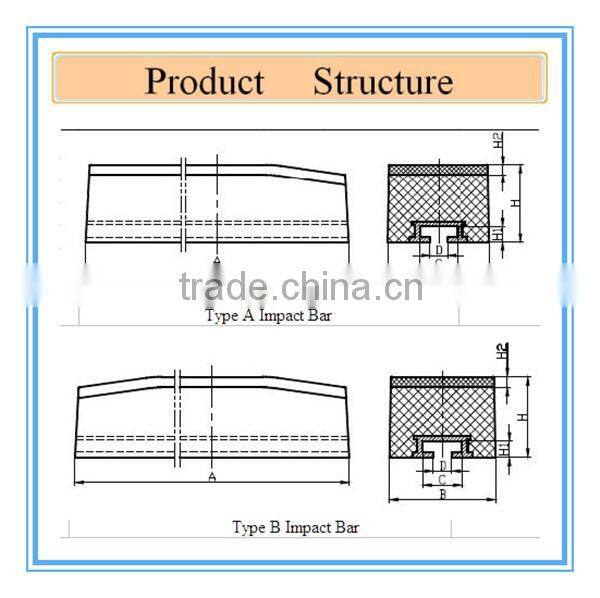

SPECIFICATIONS:
| Type |
A (mm) |
B (mm) |
H (mm) |
UHMWPE Thickness H2 (mm) |
| A Type Impact Bars | 600 | 100 | 50,75,100 |
12, 15(Flame Retardant Bar) |
| 700 | ||||
| 750 | ||||
| 800 | ||||
| 900 | ||||
| 1220 | ||||
| 1400 | ||||
| 1524 | ||||
| B Type Impact Bars | B1220 | |||
| B1400 | ||||
| B1524 | ||||
| B1600 | ||||
| B1800 |
For more details, please view our website: . Thanks.
