automatic cnc 400W aluminum laser spot welder
laser welding machine is also called laser automatic welder, which mainly adopts computer's programme; It can complete automatic or semi-automatic spot welding, butt welding, overlapping welding and sealing welding as well as accomplish welding of complex plane and straight line, arc and arbitrary tracks. Automatic laser welding machine uses high energy impulse laser to weld the material. It through laser power discharge to Xe lamp impulse to form light wave. The light wave radiate to Nd3+: YAG crystal issued pulse laser of the 1064 nm through resonance; After expanding, reflecting and focusing,it can weld the materials.
JOY-200W automatic laser welder suitable for mold repair, and welding all kinds of electronic products; The main advantages as follows:
(1) Electric regulate the lever of laser focus: It is convenient to regulate lever of laser rapidly through the manual button on the panel, which makes the laser focusing become simple and fast.
(2) positioning function of welding spot: It through the red light direction to find the rough place of welding spot on the workpiece, aiming at the location of welding spot accurately by using Binocular high-magnification microscope observation.
(3) Electric regulating multiple size of scattering mirror (regulating the facula size).
(4) Manual control the movement of XY mobile worktable, optional automatic welding function of Electric control at the same time, which can realize automatic welding of products in high speed. .
(5) Integrative design, small size, compact structure, so it's Convenient and practical.
Parameters Name Parameters Datas
Max. laser average power 400W
Laser peak value power 6KW
Laser wavelength 1064nm
Max.single pulse energy 90J/10ms
Pulse width 0.3-20ms
Welding frequency 1-100Hz
Pump source Xenon lamp
Cooling Mode Water-cooling
Welding Spot size 0.2-2mm
Welding depth 0.1-2.3mm
Working table dimension 200mm X 100mm
Power consumpted ≤6KW
Electrical demand 220V±5% / 50Hz / 40A
Usage environment Clean,no shaking,Temperature 13 °C -28 °C, humidity 5% -75%
Consumable material krypton lamp / filter / water / electricity

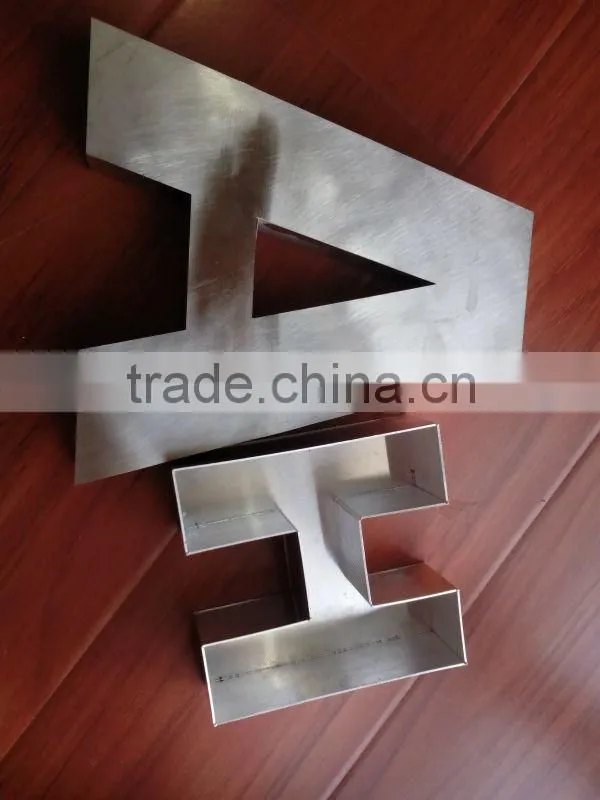

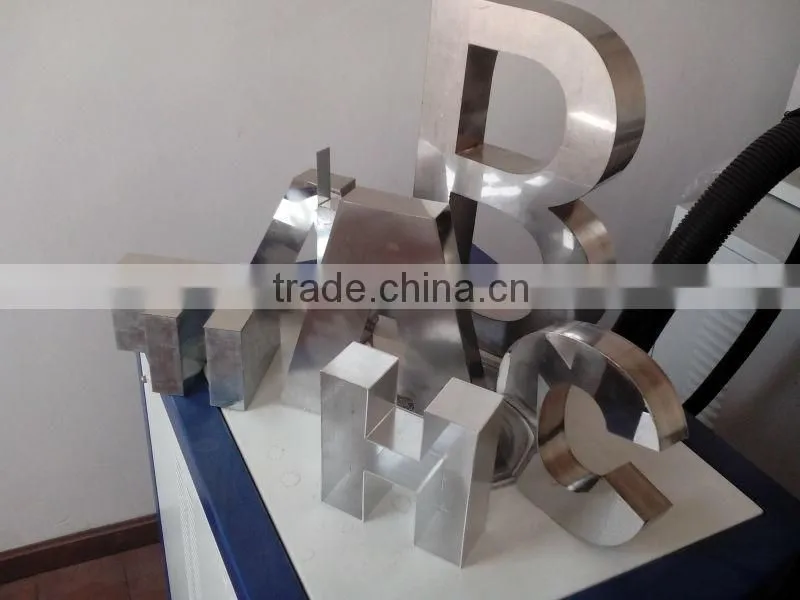

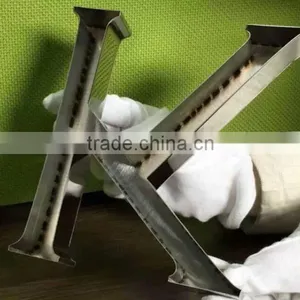

Images:
One year Warranty, all in English, engineer can go to your factory. 24 hours on line after service.
