JOY Manufacture Super 200p Inverter Welder Welding Machine Price Competitive

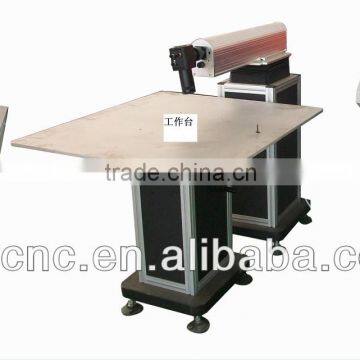

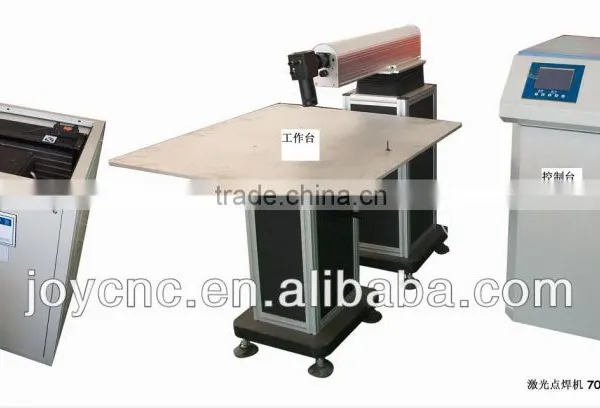

JOY Laser Welding Machine
Introduce:
a. By turning a knob, laser cavity can move backward and forward freely for the convenience
of big size letters welding
b. Laser cavity can move left and right easily for more space when welding big letters
c. The adjustment of parameter setting is very easy, up to 10 sets of parameters can
be memorized for your option
Features:
1. red light fast positioning, CCD display, microscope optional
2. Adjustable working table allows welding from small size to big size of work piece
3. Fast working speed; professional jig ensures the focus fixed and makes welding easier
without using CCD or microscope
4. Slight distortion and affect by heating.
5. Capable of partial heating process.
6. Able to deal with complex, profiled, or tiny letters.
7. Low noise and no pollution.
8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
9. New metal processing technology brings higher quality of end products.
10. Light point,large letter can be seperate finish by the handle fiber welding,standard power is300w,fiber is 100w,total power is 400w. So it is the so good type for choice.
Parameters:
Model No. |
JOY-F400HZ |
Machinery Part |
Optical system moves 800mm distance and 90° rotate |
Bench Stroke |
Working area 750*1000 |
Bearing of bench |
≤200KG |
Power supply |
220V±10%/50/60Hz OR 380V±10%/50/60Hz |
Laser type |
Pulsed Nd:YAG (xenon lamp) |
Adjustment range of light spot |
0.1~0.3mm |
Size of light spot |
0.2~3.0mm |
Laser wavelength |
1064nm |
Pulse width |
≤15ms |
Max laser power |
400W(optional:200-600w) |
Pulse frequency |
≤50Hz |
Laser output |
200mm |
Laser cooling |
Water cooling |
Observation system |
CCD( microscope for option) |

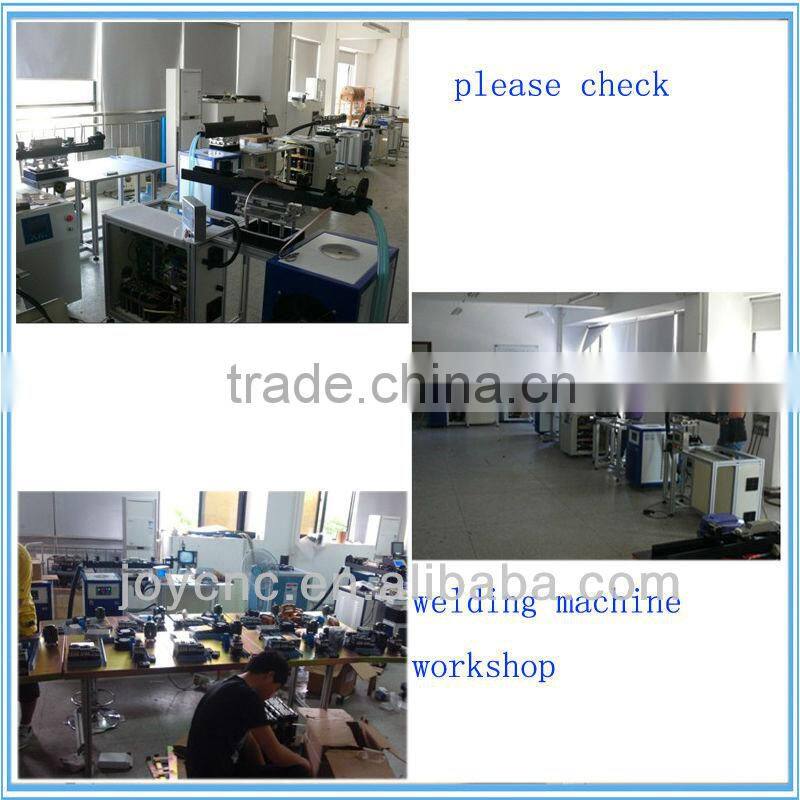

Our professional workshop:

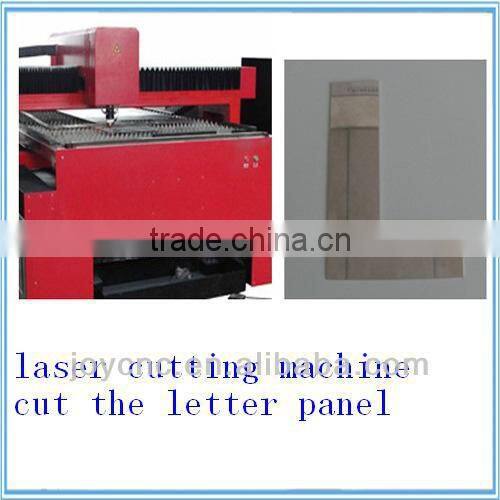

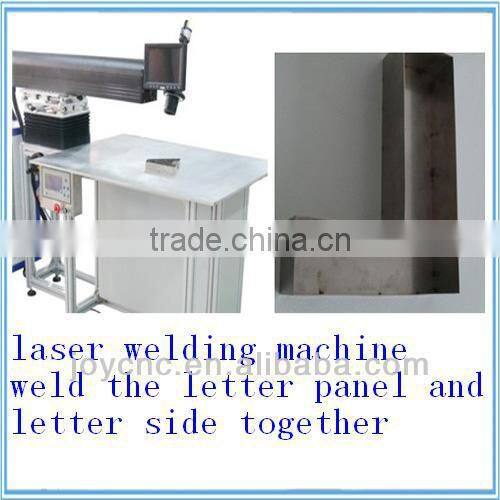

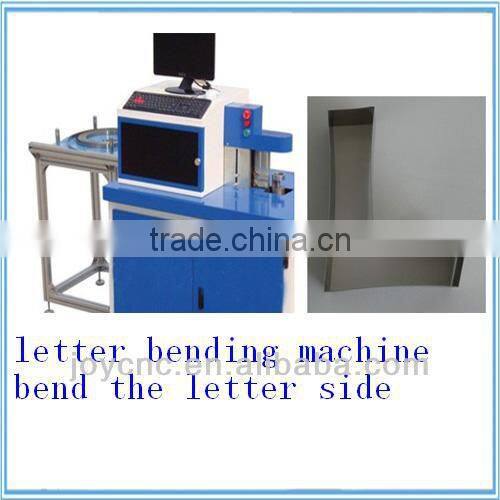

A full letter making processing and relative machines:

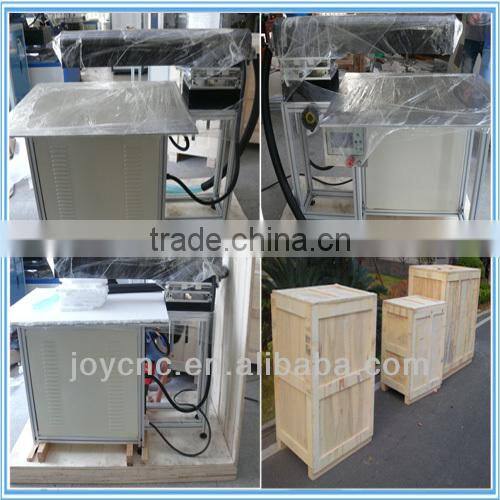

Machine pack and inner fix:

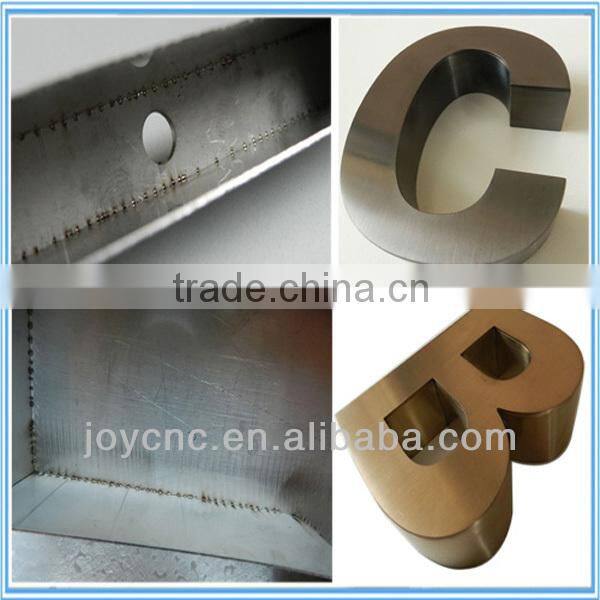

Welding Samples:
CE:
Clients:
One-year after-sales service includes:
1. We will offer some of the parts for free in the first year.
The buyer needs to pay for the shipping cost for the parts.
The user needs to send us pictures of the broken one, then we will send out the part they need.
2. In the first year, if the buyer needs our engineers to come to the local to fix some problems of
the machine that they cannot fix by themselves; we will send our engineers for free.
The buyer needs to pay the flights, housing and meals for the engineers in the local.
3. We will offer our service through email and phones if the buyer needs any help on technical problems.
Welcome to contact with us !
We will do our best to assit you !
