Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Cheap Laser Welding Pipe Machine
Cheap Laser Welding Pipe Machine
US$ 2,000 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
JOY
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Frequency Spot Welding Machine For SalesUS$ 320 - 7,000MOQ: 1 Set -
Manufacture Aluminum Laser Welder Machine Used To Weld Copper Iron And AluminumUS$ 2,000 - 9,000MOQ: 1 Set
-
Chinese Golden Supplier Selling Mini Laser Spot Welder Machine Used On AluminumUS$ 4,200 - 7,800MOQ: 1 Set
-
Easy Operation 400w Portable Aluminum Laser Welding Wire MachineUS$ 4,200 - 7,800MOQ: 1 Set
-
China Factory Portable Aluminium Welding Machine With Low CostNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Hubei, China
Brand Name
JOY
Model Number
JOY180
Single Pulse Energy
40J
Pulse Width
0.2-20ms
Wavelength
1064nm
Focal Spot Diameter
0.-3.0mm
Max. Output Power
180/200W
Dimensions
750*1000mm
Usage
WELDING
Power(W)
200W
Certification
CE, ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Cheap Laser Welding Pipe Machine

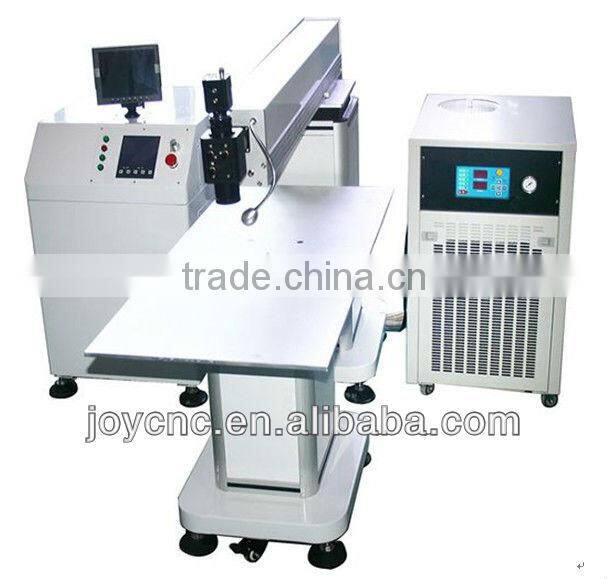

JOY Laser Welding Machine
Features:
- The working principle of this laser deposition welding system is to use laser high thermal energy and the melting technology in spot to process the welding and repairing of minute parts.
- It makes up the shortage of traditional hydrogen arc welding in repairing precision surfaces, avoids the two difficulties of thermal strain and after-treatment, and saves the production period of mould.
Advantages:
It is specially designed for the mould industry and the technology is imported from Germany. With unique structure design, it is suitable for repairing of large, medium and small moulds.
- 1.Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.
- 2.Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.
- 3.The laser head and optics part can be rotated for 360°, upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.
- 4.The parameters are controlled by intelligent remote controller, which is simple and convenient. 5.The work bench can be lifted, and moved in three dimensions. 6.The size of light spot can be adjusted.
Technical parameters:
-
Model HTP-WY180 3-axis stroke of work bench X=300mm, Y=200mm (X, Y can be adjusted manually and Z-axis can be lifted) Bearing of work bench ≤200kg Device weight 300kg Power supply 220V±10%/50Hz or 380V±10%/50Hz Laser parameters Laser parameters Laser type Nd:YAG pulse Adjusting range of light spot 0.1-0.3mm Size of light spot 0.2-3.0mm Laser wavelength 1064nm Pulse width ≤20ms Maximum laser power 180W Pulse frequency ≤50Hz Laser output focus length 50mm/100mm/120mm (optional) Laser cooling Water cooling Observing system Microscope (360° adjustable) Protection gas One line (xenon) Welding wire diameter 0.1mm-0.8mm
Suitable materials:
- The materials that can be welded are extensive: cold work alloy steel, hot work alloy steel, nickel tool steel, high grade steel, steel alloy, high tenacity aluminum alloy, etc.

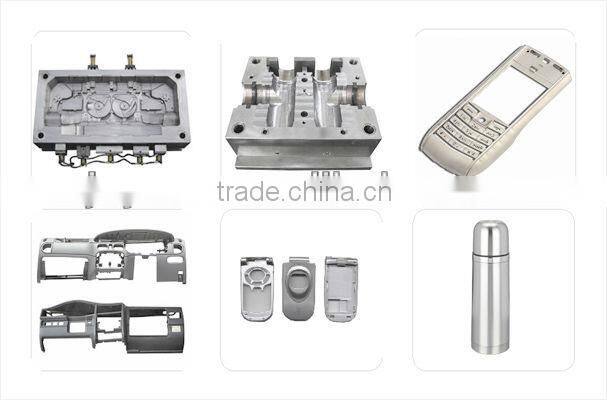

- Samples:
Welcome to contact with us !
We will do our best to assit you !
