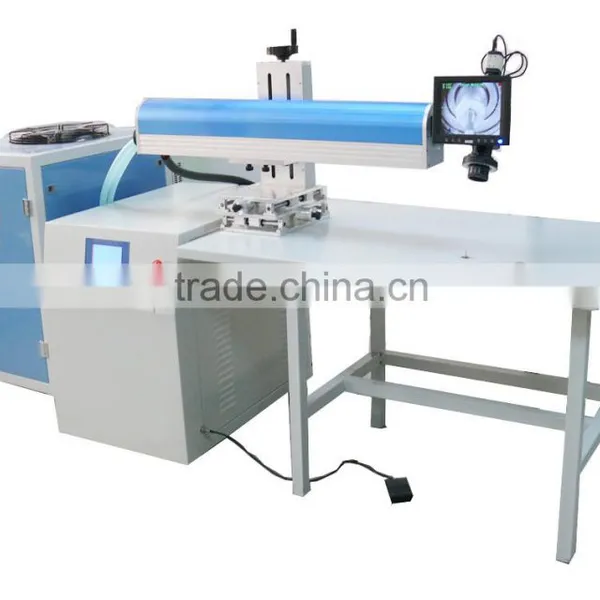

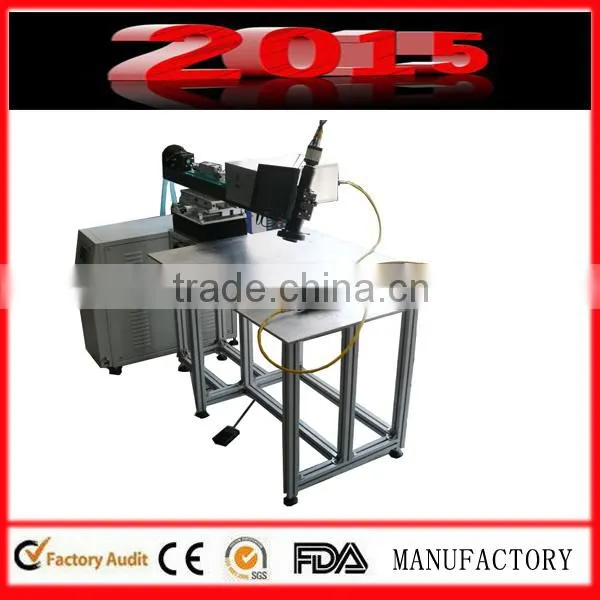

High power 500w auto laser welder ss/aluminum welding machine
Application:
Applied for the welding of various metal letters, LED illuminated letters, customized metal signage,
and exterior billboards.
Features:
1. red light fast positioning, CCD display, microscope optional
2. Adjustable working table allows welding from small size to big size of work piece
3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope
4. Slight distortion and affect by heating.
5. Capable of partial heating process.
6. Able to deal with complex, profiled, or tiny letters.
7. Low noise and no pollution.
8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
9. New metal processing technology brings higher quality of end products.
Technical Parameters:
Model No. |
WF500HZ |
Power Consumption |
Max 16KW |
Facula diameter |
0.1-3.0mm |
Welding pool diameter: |
0.3-3.0mm |
Current Range |
60A——600A |
Pulse Duration |
0.2ms——20ms |
Laser Frequency |
0Hz——100Hz |
Observing system |
CCD with red guide beam |
Work table scale: |
1000*750mm |
3-axis travel distance: |
X=700mm,Y=150mm,Z=200mm |
Details directions:
a. By turning a knob, laser cavity can move backward and forward freely for the convenience of big size letters welding
b. Laser cavity can move left and right easily for more space when welding big letters
c.The adjustment of parameter setting is very easy, up to 10 sets of parameters can be memorized for your option
3-3 Control System
Operation Interface: English/Chinese, 7’ 65536 color LED touch screen
Loading Period: 1 minute
Program Memorization: 100 settings quick selecting
Additional Features: flow alert, boot self-check, fault history memory, remote upgrade
3-4 Optics System:
Extending ratio: 8 times
Focus length: 150mm
Protective Glass: 40mm,thickness 2mm
3-5 Cooling System
The equipment employs water cooling system in which the magnetic pump drives the circulating water to cool the laser crystal and pumping lamp, with overheat and overflow protection. The deionized water with resistance rate more than 0.5MΩ-cm is used as the circulating water, 15 liters for each time. The circulating heat is taken away by the refrigerating machine and finally discharged into the outside atmosphere by the fan.
3-6 Power Supply: 3-phase 380V±10%,water chiller 1-phase 220V±10%, 50Hz
3-7 Working environment and continuous operation time
Working environment should be clean, oily fog and dust free, far from vibration, temperature 5℃-32℃,humidity 90%. Continuous working time up to 16 hours.
>1000*750mm
3-axis travel distance:
X=700mm,Y=150mm,Z=200mm
Samples:
Machine parts:
Remarks:
Above price includes: One-year after-sales service
English version operating manual
A series of Videos about how to operation
One-year after-sales service includes:
1. We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user needs to send us pictures of the broken one, then we will send out the part they need.
2. In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot fix by themselves; we will send our engineers for free. The buyer needs to pay the flights, housing and meals for the engineers in the local.
3. We will offer our service through email and phones if the buyer needs any help on technical problems.
