High Quality Serial 4E1 to Ethernet Converter Manufacture

Name: High Quality Serial 4E1 to Ethernet Converter Manufacture
Brand: TINCAM
SKU: 103827227
Availability: InStock

Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

TINCAM

Shenzhen Tianbo Communication Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name TINCAM

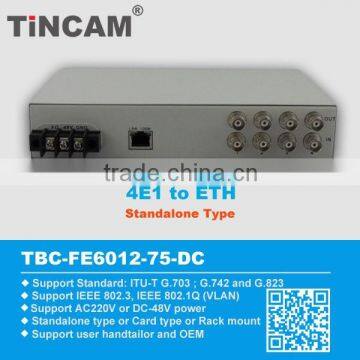

High Quality Serial 4E1 to Ethernet Converter Manufacture

Product Description

Monitor and control of remote equipment, OAM management data did not take up user’s timeslot and save E1 bandwidth
E1 supports any timeslot set, the rate is 64K-2048K
Have the function of E1 interface loop back check
Have indicator light when the device is power-off or E1 line is broken or lose signal
Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken
Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering
Ethernet interface supports10M/100M, half/full duplex auto- adaptable and AUTO-MDIX
Ethernet monitor self-reset function
Achieve the remote device setting any 5 mode of Ethernet and can closed the AUTO-MDIX function
E1 master clock and E1 line clock;
Have three Loop Back Mode: E1 interface Loop Back (ANA),Ethernet interface Loop Back(DIG),Command the remote Ethernet interface Loop Back(REM)
75 Ohm unbalance and 120 Ohm balance
Support SNMP Network Management
Can realize monitor of remote equipment temperature and voltage from local equipment

Specifications

E1interface	Interface Standard:Comply with protocol G.703
	Interface rate:n*64Kbps±50ppm;Interface Code: HDB3;
	E1 Impedance: 75Ω (unbalance), 120Ω (balance);
	Jitter tolerance: In accord with protocol G.742 and G.823
	Allowed Attenuation: 0~6dBm
Ethernetinterface (10M/100M)	Interface rate:10/100 Mbps,half/full duplex auto-negotiation
	Interface standard:Compatible with Ieee802.3,IEEE802.1Q9(VLAN)
	MAC Address Capability:4096
	Connector:RJ45,support Auto-MDIX
EM 2/4 Line	AD:odB
	DA:-3.5dB
	Two/Four-line impedance:600 ohm
	Return loss:20dB
Power	power supply:AC180V-260v;DC-48V;DC+24V
	Powerconsumption:≤10W
Working environment	working temperature:-10°C ~ 50°C
	Working Humidity:5%~95 % (no condensation)
	Storage temperature:-40°C ~ 80°C
	Storage Humidity:5%~95 % (no condensation)
Dimension	product size: 216X138X31 mm(WXDXH)
	Simple packaging :274X193X84 mm(WXDXH)
	Piece Weight :1.1KG
