Specifications
co2 acrylic laser cutting machines price. Video instruction, high cutting precision, smooth incision.2. High security,CE/ISOco2 acrylic laser cutting machines price
Product Feature:
1. Double efficiency of high-speed engraving and high-speed cutting.
2.It runs steadily equipped with import guide rail and advanced DSP control system of triphase motor and drive.
3. The running system adopts the beeline contrail in order to make sure the process accuracy.
4 .The engraving depth can be adjusted automatically.
Applicable Material:
Fabrics, acrylic, leather, paper, bamboo and wood, MDF, film, canvas, perspex,etc.
Applicable Industry:
Crafts and stone engraving, garments sampling, large width tailoring, leather industry, shoemaking, decoration, furniture, advertisement, packing and printing, model industry, craftwork and gift, etc.

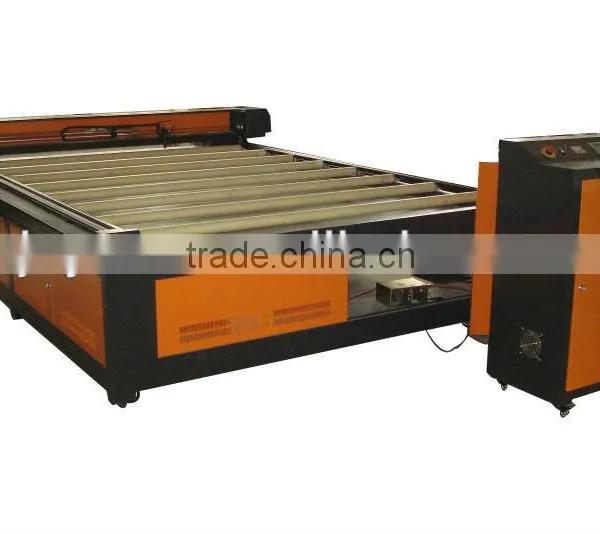

Technical Parameters:
modle |
1325 |
Laser style |
sealed CO2 laser tube |
Power of laser |
100W |
Cutting area |
1300*2500mm |
Size of the machine |
3000*1600 * 990mm |
Cutting speed |
0 - 24,000mm/min |
Resolution accuracy |
±0.1mm |
Voltage |
AC 110 - 220V±10%, 50 - 60Hz |
power |
<1,500W |
Working temperature |
0 - 45°C |
Working humidity |
5- 95% |
Minimum shaping character |
English 1 x 1mm |
Supported Graphic Format |
BMP,PLT, DST, DXF, and AI |
Driving motor |
step |
Cooling method |
water-cooling and protection system |
Auxiliary assembly |
Exhaust fan and exhaust smoke pipe |
Controlling software |
DSP |
Compatible software |
CorelDraw AutoCAD Photoshop |
weight |
400KG |

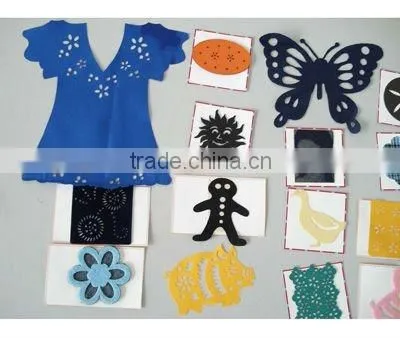

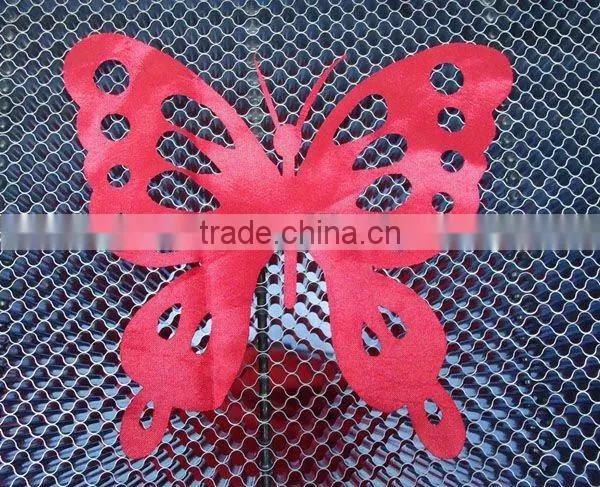

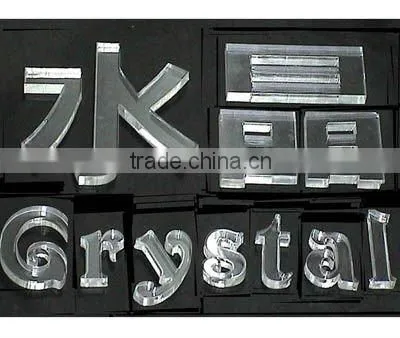

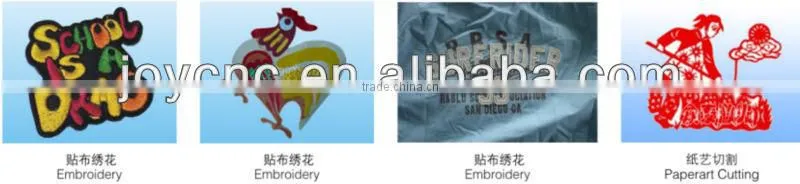

Samples:
