Specifications
fiber Laser cutting machinestationary table
smooth no need post-process
factory wholesale with low pri

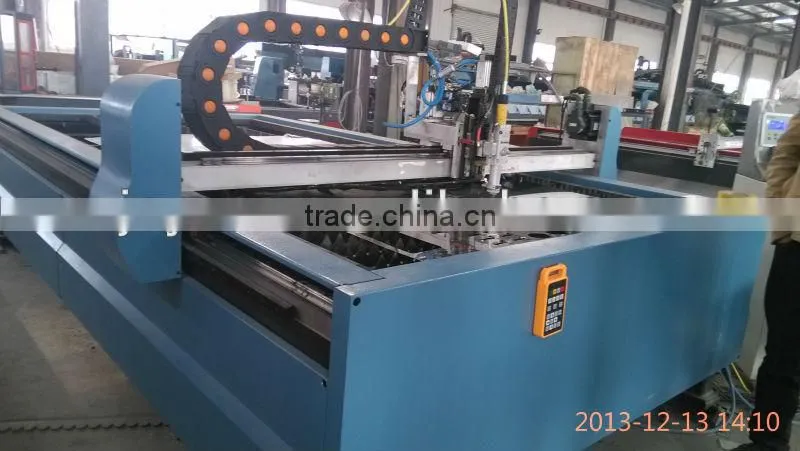

JOY1530 fiber laser cutting machine Metal cutting machines
fiber laser cutting machine Metal cutting machines
Laser standard power: fiber laser
Excellent laser beam quality, high cutting precision, high cutting speed, high efficient photoelectric conversion rate, low use-cost and maintenance cost, easy operation and convenient maintenance
Model |
JOY1530 fiber laser cutting machine |
Laser Power |
1000W |
Laser Source |
World Famous Germany Dlaser Fiber laser source |
Laser Type |
Imported Fiber Laser |
Laser Technology |
Germany Technology |
Working area |
1500*3000 mm |
Max. Cutting Thickness (Carbon Steel) |
1-16 mm |
Max. Cutting Speed |
0-12 Meters / Min (up to materials) |
Max. Location speed |
60m/min |
Laser wavelength |
1070nm |
Minimum line width |
≤0.1mm |
Location precision |
≤±0.05mm |
Re-location precision |
±0.02mm |
Max. moving speed |
100m/min |
Supporting Format |
PLT, DXF, BMP, AI |
Power demand |
380V/50Hz |
Cooling Way |
Water Cooling |
Worktable max. load |
1000KGS |
Transmission Method |
Ball Screw Transmission |
Table-driven system |
Japanese Imported Panasonic Servo Motor & Driving System |
Focus Method |
Following and Automatic Adjust Focus |
Control Method |
Offline Movement Control |
Control software |
JOY Professional Laser Cutting Software |
(1) The fiber laser cutting series are Golden Laser’s new line of metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting sheets of stainless steel, mild steel, aluminum, brass, etc.
(2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.
(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.
(4) Golden Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.
Factory directly sale with CE certificate
MOQ:1 set
Lead time:about 10 working days
Payment:TT LC W/U

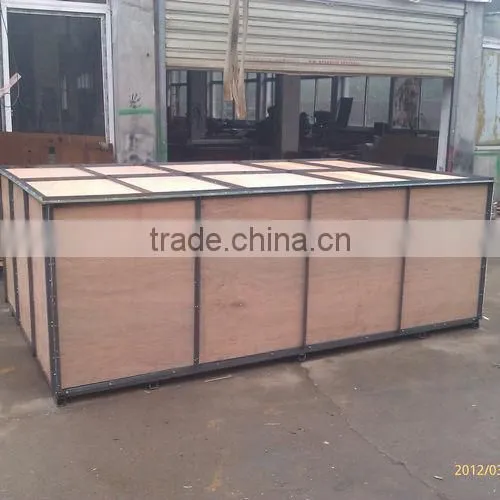

Package: protected by high quality wooden case
After sale service:1 year
