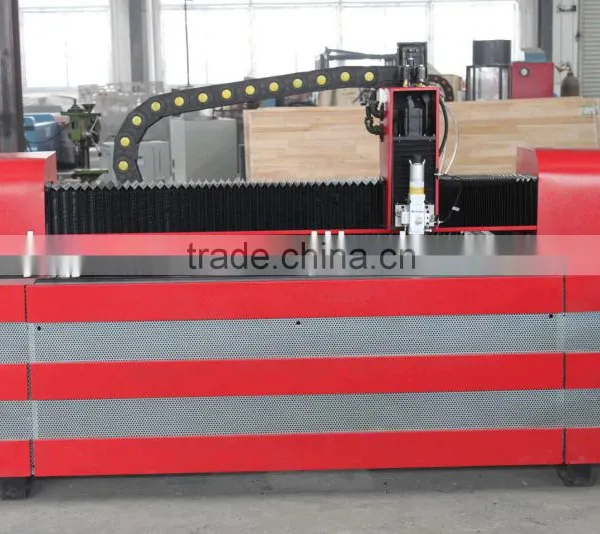

Cnc Cutting Machine Laser Fiber 500W/800W/1000W

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Hubei, China

Brand Name:

joy

Wuhan King Suntime CNC Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/qingdao/guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Hubei, China

Brand Name joy

Model Number 1530

Voltage 380V

Weight 1200

Certification CE

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

cnc cutting machine laser fiber 500W/800W/1000W
high focus, high penetrability, high quality
fiber500W
USA tech
low use cost

cnc cutting machine laser fiber 500W/800W/1000W

The laser lens choose USA high focus, high penetrability, high quality focus lens.

The cutting line width can reach 0.1mm-0.8mm.

And the laser wavelength is 1064nm.

Laser pulse width can be 0.02-0.15ms, continuous adjusting.

Laser pulse frequency is 1-500Hz, continuous adjusting.

Max cutting thickness is 5mm stainless steel (500W fiber)

USPECIFICATONSU
UMACHINEU
UITEMU		UTECHNICAL SPECIFICATIONSU
Travel Method		stationary table , Gantry style
Control Method		X, Y axis motorized controlled
Travel Amount	X-axis	1300mm
	Y-axis	2500mm
	Z-axis	18mm (it's standard) customized by requirements
Feed Rate	X-axis	2500mm/sP2P
	Y-axis	2000mm/sP2P
rapid speed	X-axis	800mm/s
	Y-axis	600mm/s


Maximum Worksheet Loading Capacity		300kg
Repeatability Positioning Accuracy		0.01mm
Least Command Increment		0.002mm
Drive Feed Method		position control / AC servo motor
Machine Table Height		600mm
Power Supply ( only for machine)		380V 50HZ

ULASER OSCILLATORU
Laser Oscillation Method		Lamp pump YAG
Laser Output	Output (Rated)	500W
	Stability	3%
	Frequency	1-300HZ
Output Beam	Wavelength	1064nm
	Mode	multi mode
	Diameter	0.1mm after focus

UCNC CONTROL UNITU
CNC Unit		Yaskawa AC servo motor
CNC Control Method		semi-close loop control
Control Functions		X, Ycontrolled (simultaneously controlled)
Input Method		USB, Net port, memory stick
Least Input Increment		0.02mm
Minimum Position detection Accuracy		0.02mm
Program Storage Capacity		128M flash memory in machine
Operating Modes		Windows XP support
Display Function		Cutting process Position information Parameters design monitor

I/O Interface		RS232C
Display		5 inch screen display
