Specifications
JOY1390 Acrylic Laser Cutting Machine1.Free cutting samples available
2.LCD Touch Panel & USB port
3.Lasercut softwa

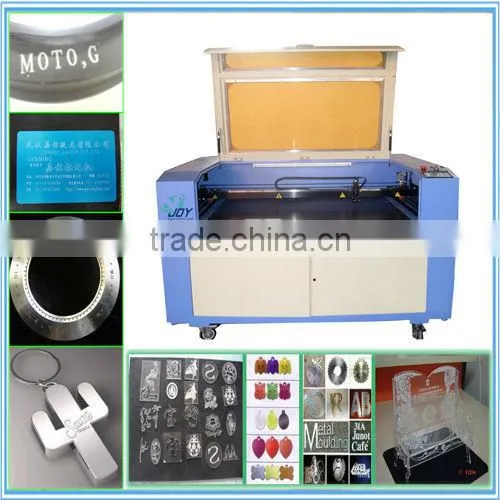

JOY1390 Acrylic Laser Cutting Machine
Laser Cutting Machine Applicable Fields:
Laser Cutting Machine for Fabric/ has been widely used for engraving and cutting on nonmetal matetial, including acrylic, wood, plexiglass, architectural models, rubber plates, bamboo products, arts& crafts, panel, lenses, wood& bamboo carving, signboards, crystal characters, packing boxes, models, toys, furniture, textile, fabric, cloth, leather, garment etc.
Laser Cutting Machine Features:
large scale Laser Cutting Machine with water chiller with selective electric-ascending and decending platform(lifting range: 0-500mm), thus can meet the different thickness of the processing needs. The X-axis guide rail applied double ones, installed two sets of laser head, and controlled by two motors. Thus the position of two laser heads can be located at will, and therefore can avoid material waste due to fixed position of the traditional double head laser can not be adjusted or inconvenient adjustments. It can also just open one laser head for full-scope carving. Meanwhile, the optical design is perfect. It avoids the laser power uneven around the worktable because of optical transmission of traditional large-format Machine, and therefore enhances the combination of high efficient double laser head and large scope engraving of single laser head.
Products Features:
- Special design adopt for this machine, laser tube work together with
laser head that can ensure long time high power, no need maintain laser
route, it can reduce malfunction rate. - Strip acrylic working, when cut acrylic it can avoid laser reflect.
- Double servo motor moving control system, high speed, smoothly and
non-sawtooth cutting, high precision. - Special design for cutting pieces can conveniently drop and fetch,
large quantity process. - Multi- selection for laser tube 60W, 70W, 100W, 120W,150W, wide application.
- Up air blower, up and down exhaust system, can satisfy multi-request
for cutting.
Technical-parameters:
Laser-type |
Hermetic and detached Co2 laser tube) |
Laser-power |
Standard collocation 80W Special collocation 60W 100W 120W 150W |
Machine frame scale |
1500×2500mm Special 300W-800W |
Cutting scale |
1250×2500mm |
Cutting speed |
500 mm/s |
Moving system |
Embed offline running control double servo motors controlling system |
Repeating location |
±0.1mm |
Working voltage |
220 V ±10% 50HZ |
Cutting platform |
Honeycomb or strip acrylic working table |
Auxiliary equipments |
Upper and nether exhausting system |
Power controlling mode |
Laser power and moving system cooperate |
Controlling software |
Original PERFECT laser software for large-scale engraving |
Samples:
Key point:
Please kindly tell us your engraving or cutting materials, and materials' size.
Then we can quickly check and recommend to you the right machine with right working area.
