Specifications

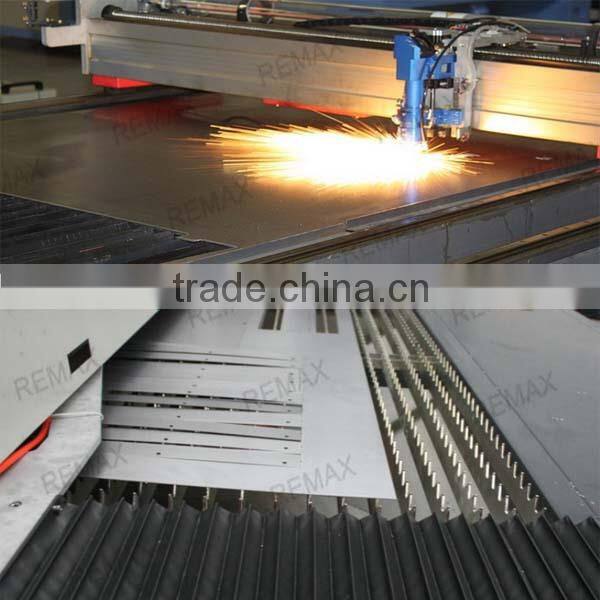

laser mix cutting machine for metal and nometal1.Work area:1300*2500mm
2.Laser power:130w RECI
3.Water cooling
laser mix cutting machine for metal and nometal
application:
Laser cutting machine mainly used for advertising industry(stainless metal and carbon steel),
sheet metal industry(carbon steel), packaging industry(die board) and so on
Applicable materials: acrylic, stainless steel, carbon steel, MDF,die board.
Applicable show: metal spectacle frame, furniture plate cutting, MDF photo
frame cutting, building model cutting.
Product Features for laser cutting machine :
1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board
2.High precision:Imported servo motor with imported ball screw tansmission greatly improve
the response speed and cutting precision of equipment, extend the time of using.
3.Constant light system: The machine uses the constant light, achieving high precision cuttingof the whole area.
4.High precision and Good stability :With precision ball screw transmission mechanism and
optimized the nc system control, it can meet the precision parts processing,stable dynamic
performance,also can work for long hours.
5.The cutting section with good quality:Mechanical follow-up cutting head system,
cutting head always follows the material to keep the cutting point location unchanged,
which insures smooth cutting section without processing again. It can adapt to flat or curved
surface sheet cutting.
6.Adopt sealed co2 laser tube , main consumable items are electric energy,water-cooling,
auxiliary gas and laser light.
7.Sample structure, easy operation, stable laser device and low maintenance cost.
Parameters:
Model |
laser cutting machine |
Working area |
1300x2500(mm) |
Laser power |
130W,150W |
Laser type |
Sealed co2 laser tube |
Working platform |
Blades with sawtooth |
Working speed |
≤400mm/s |
Resetting position accuracy |
Without red dot |
Graphic format supported |
BMP PLT DST AI DXF |
Cooling mode |
Constant water-cooling and protection system |
Working voltage |
AC220 50~60Hz 10A max |
Operating temperature |
0~45°C |
Operating humidity |
5%~95% |
Driving motor |
Servo motor(X:400W,Y:750W) |
Whole machine size |
3460x2000x1160 mm |
Exhausting Method |
Exhausted by funnel |

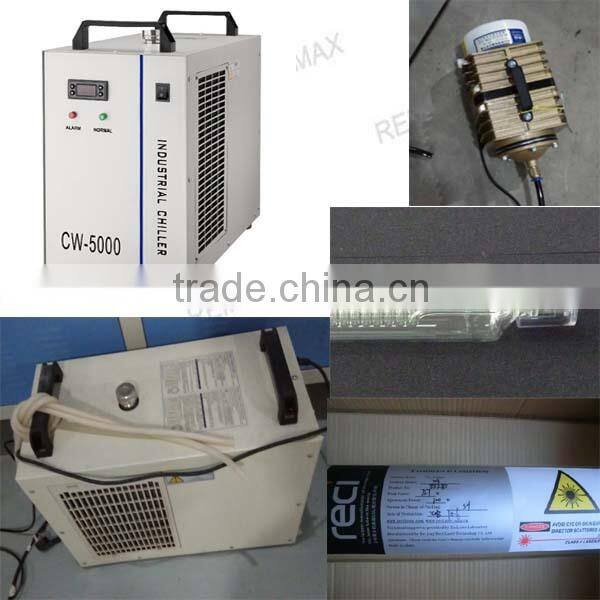

machine spare parts:

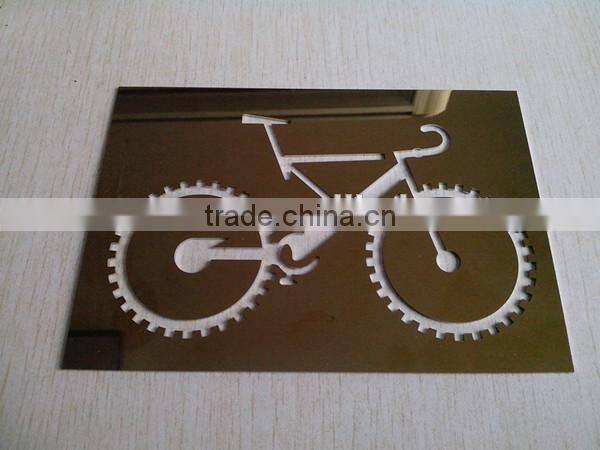

laser mix cutting machine for metal and nometal samples
Certificate:
