Design best selling high efficient cooler and separator
Specifications of high efficient cooler and separator:
1.Compact structure pellet cooler.
2. energy saving pellet cooler.
3. less investment pellet cooler.
4. easy operation and maintenance pellet cooler.
Description of high efficient cooler and separator:
This type of counter flow cooler is for biomass energy pellets and animal, livestock,poultry pellets.
It is mainly to cool 2-8mm dimension pellets, when outlet from pellet machines, the hot pellets
temperature is about 60-80 centigrade, after cooling. the temperature is not higher than
room temperature +3-5.
The cooling theory is that cold air goes inside of cooler from bottom to top, hot pellets goes to
cooler from top to bottom, as time goes on, pellets will pulse at the cooler bottom, cold air will
cool them at the bottom gradually, in this way will reduce pellet broken.If cold air also go to
cooler from top, which same as pellets, then hot pellets will meet with cold air suddenly ,
then pellets will be easily broken, especially pellets surface. In this way can cool fully and
equally, pellet broken rate is smaller than 0.2%.
It generally works with cyclone and air fan, air lock. which is used to clean dust, also it can
install a screener at the cooler bottom, which can separate dust and good pellets after cooling.

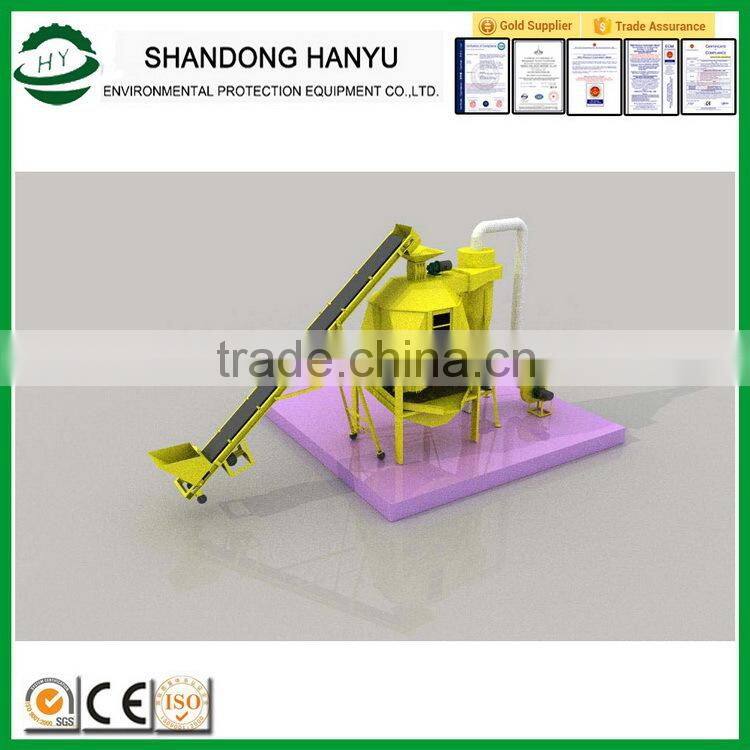

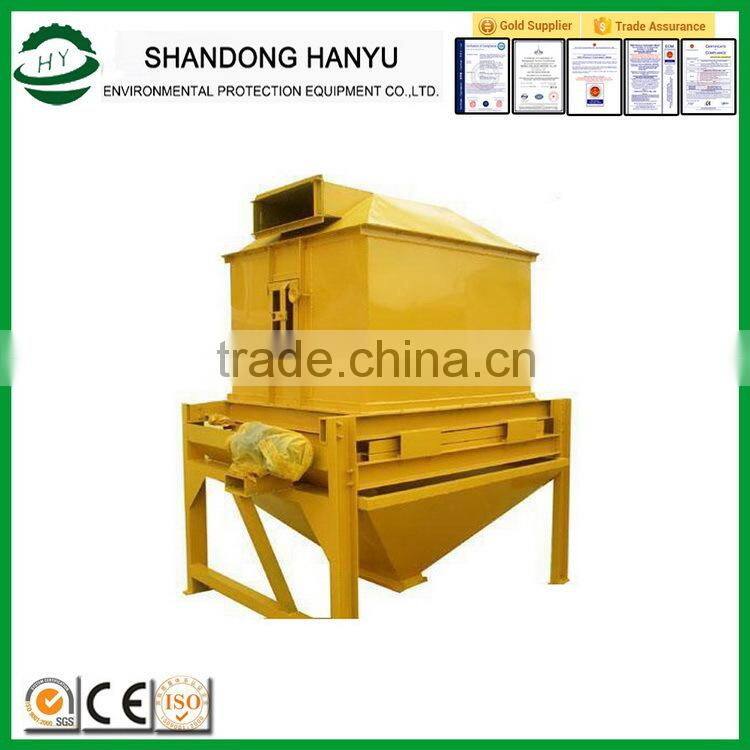

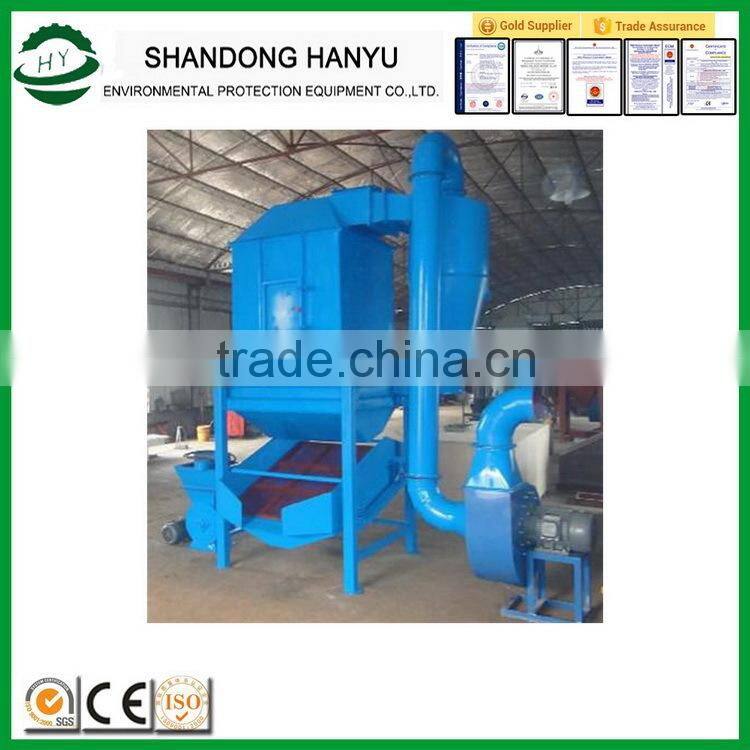

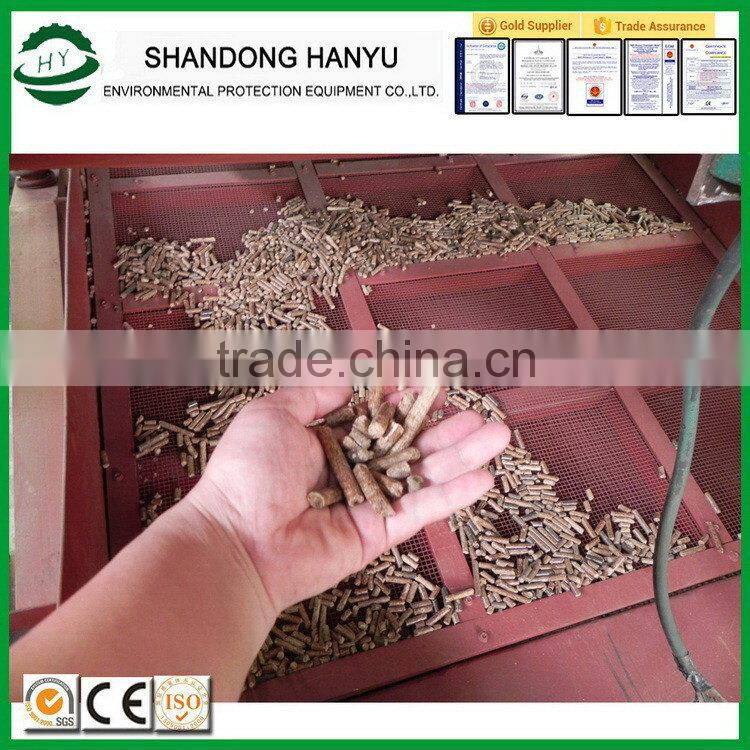

Pictures of high efficient cooler and separator:
high efficient cooler and separator diameter:
| Model | Power(kw) | Capacity(t/h) | Note |
| HYLQ-1.2 (octagonal) Vibration | 1.5+0.25 | 0.8-1 | Cooling host, Up air-lock 1, fan (5.5kw), Cyclone φ80 |
| HYLQ-1.5 shock / tow row | 1.5+0.25/1.5+1.5 | 1-2T | Cooling host, Up air-lock 1(1.5kw), fan (7.5kw), Cyclone φ80 |
| HYLQ-2.5-type vibration / tow row | 2.2+0.55/2.2+2.2 | 3-5T | Cooling host, Up air-lock 1(2.2kw), fan (18.5kw), Cyclone φ100 |
| HYLQ-4 type vibration / tow row | 3+0.37/2.2+3 | 5-8T | Cooling host, Up air-lock 1(3kw), fan (305kw), Cyclone φ130 |
| HYLQ-6-type vibration / tow row | 4+0.37/3+5.5 | 8-12T | Cooling host, Up air-lock 2(4kw), fan (45kw), Cyclone φ150 |
Services for the high efficient cooler and separator:
1. We treat customers as gods, and provide considerate services from shipment to maintenance, including professional free training, guidance, installation,and debugging.
2. After sale, we provide one year's warranty. we will help to solve any mechanical problems in time. Also engineers are available to service overseas.
Related products of pellet cooler:
Our contact informtion:
Annabelle An
(Sales manager,oversea market)
Mobile/Wechat/Whatsapp: 0086 13869161695
Skype/Email: annabelle(at)
We will supply the reliable machines with our best factory price,If you are convenient,we sincerely invite you to come to visit our company!
