Specifications
water jet cutter1,Lead screw Imported from Taiwan
2,materials: metal, china, glass, acryli
water jet cutter
Model |
Parameter |
|
|
2040 water jet cutter(work size:2.0*4.0m) 2030 water jet cutter(work size:2.0*3.0m) 1540 water jet cutter(work size:1.5*4.0m) 1530 water jet cutter(work size:1.5*3.0m) 1525 water jet cutter(work size:1.5*2.5m) 1520 water jet cutter(work size:2.0*1.5m) 1515 water jet cutter(work size:1.5*1.5m) 1313 water jet cutter(work size:1.3*1.3m) 1210 water jet cutter(work size:1.2-1.0m) |
Form of machine |
Gantry |
Processing scope(m) |
As the requirements of customer |
|
Control accuracy |
+0.05mm |
|
Max working pressure |
400mps |
|
Max flow rate of UHP water |
3.7L/m in |
|
Power supply |
220vac,50/60Hz/380vac,50/60Hz |
|
Motor power of oil pump |
37kw |
|
Z axis Distance |
150mm |
|
Control system |
AC servo system |
|
Running speed |
0-10m/min |
|
Technical parameters in detail
Name |
Main function |
|
|
NC water jet cutters platform |
Range of work(size) |
2.0*4.0m / 2.0*3.0m / 1.5*3.0m / 1.5*2.0m 1.5*4.0m / 1.3*1.3m (as the requirement of customers) |
Lifting stroke of axle Z |
150mm |
|
Resetting accuracy |
+0.02mm |
|
Lead screw |
Imported from Taiwan to ensure high-precision, stable drive and durable in use for fabrication of parts. |
|
Lead rail |
Imported from Taiwan to ensure high-precision, stable drive and durable in use for fabrication of parts. |
|
shield |
ss |
|
Platform outline border |
Whole ss |
|

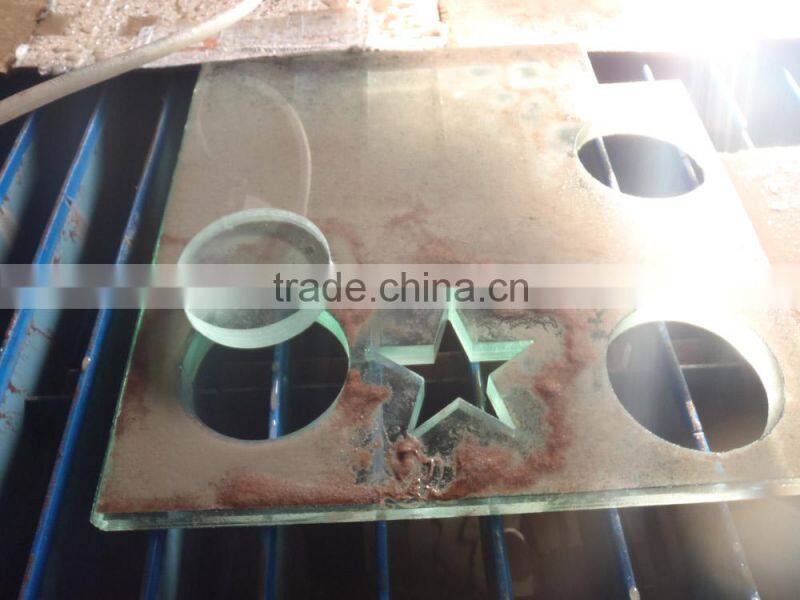

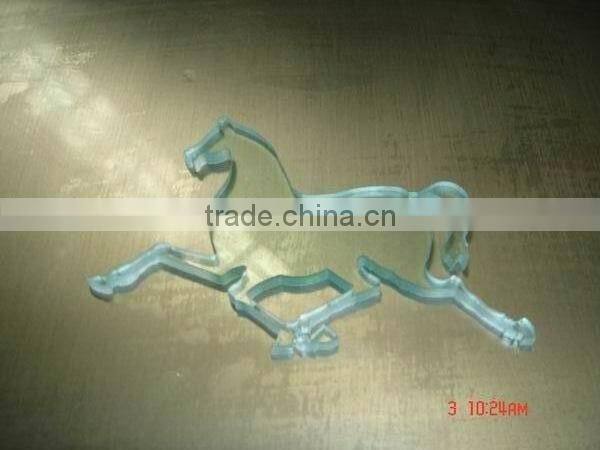

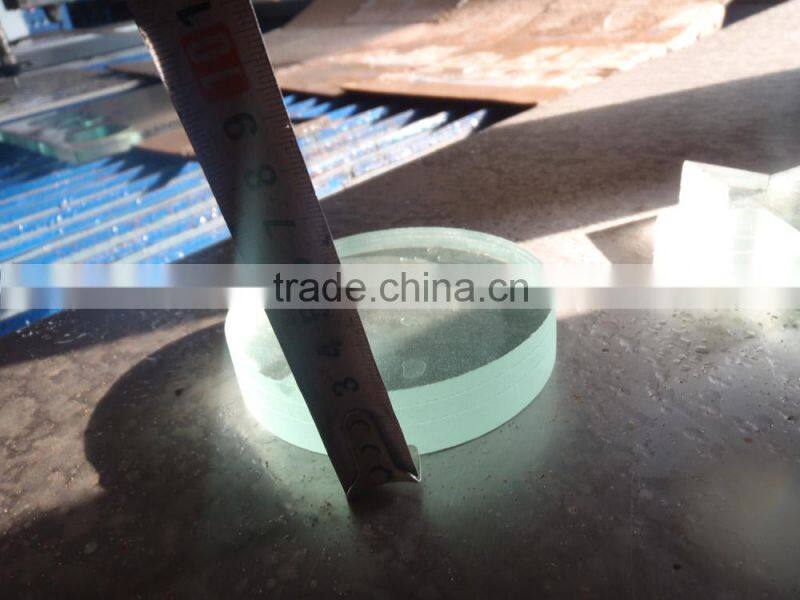

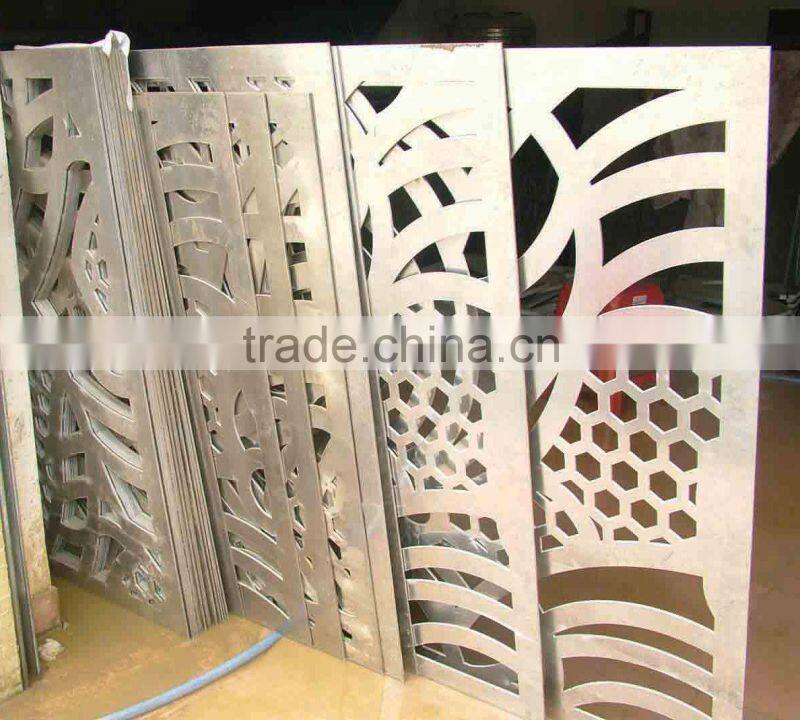

Samples as below:
Application: of water jet cutting machine:
Water Jet Cutting Machine is applicable to cutting natural marble, granite, artificial stone, ceramic, cordierite, Boil, Plastics, Chemical synthetic version, titanium alloy, copper, steel plate, aluminum sheet, cast iron, ceramic tile, chemical fiber, wood, cloth animals, chemical fiber, leather, Plastics, etc.
