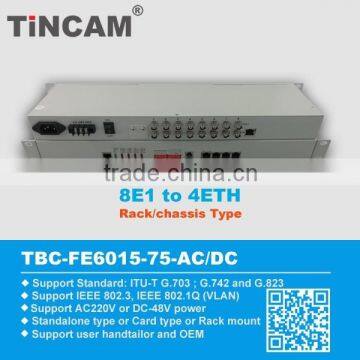

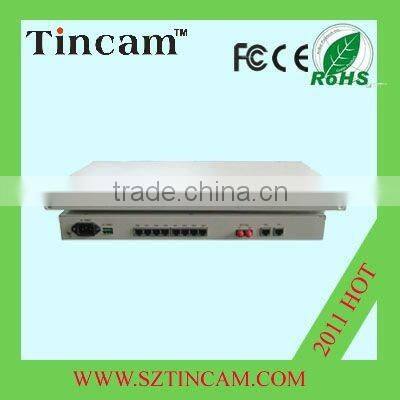

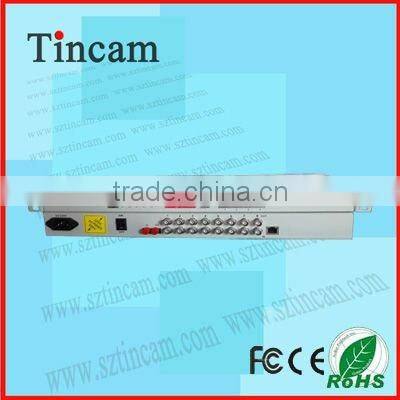

8E1 PDH Multiplexer
Negotiable
MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TINCAM
Model Number:
TBC-6240
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian/shekou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TBC-6480 16E1 PDH MultiplexerNegotiableMOQ: 2 Sets -
16E1+1000M PDH MultiplexerNegotiableMOQ: 2 Sets
-
8E1+Ethernet PDH Fiber Optical MultiplexerNegotiableMOQ: 1 Pair
-
4E1(75 or 120 Ohm) With 10/100Mbps and 2*RS232/422/485 Optical Multiplexer PDHUS$ 50 - 70MOQ: 1 Pair
-
China Manufacturer Fiber Optical Equipment:2/4/6/8 E1 to 4 Ethernet PDH MultiplexerUS$ 50 - 70MOQ: 1 Pair
Place of Origin
Guangdong, China
Brand Name
TINCAM
Model Number
TBC-6240
Specifications
1.8E1 PDH Multiplexer2.Ethernet port can transmit VLAN tag
3.Support the local/remote E1 loop back
4.Complete alarm function
Description
8E1 PDH Multiplexer can multiplex 8E1 and 2 optional port Ethernet (10/100Mbps line speed) signals in one fiber channel to transmit. It is suitable for low capacity, point-to-point application of remote transmission. The circuit part of the equipment is fully digitized. The whole equipment is reliable, stable, easy to install and maintain. It has good temperature and voltage characteristics, complete alarm functions, one RS232 asynchronous interface and remote loop back functions(from software). At the same time, it can be managed from management software Application
Specification
Optical Port
|
Port number:1
Bit rate:150Mb/s /-50ppm Distance:0 - 120Km
E1 Port
Bit rate:2.048Mbps( /-100ppm)
Line Code:HDB3, compliance with ITU-T G.703
Port number:2 optional
Duplex:Half/Full auto-negotiate
MAC address:1k
Power Supply
When ~220V, -175V ~ ~264V (AC) is allowed.
Operating Environment
Humidity:95%,no condense
Standalone Weight:2kg |
Wavelength: 1310nm, 1550nm
Connector: FC/PC Port number:8
Impedance:75ohm or 120ohm Ethernet Port Speed: 10/100Mbps line speed Frame Size:64 - 1536 bytes MAC aging time:5mins
Input voltage:When -48V, -40V ~
-60V (DC) is allowed
Overall power :5W
Temperature:0°C--45°C Size :483mm(L)×44.45mm(W)×200mm(H) |
