Single Mode 5m LSZH Fiber Optic Pigtail
US$ 20 - 40
MOQ: 1 Box
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TINCAM
Payment & Shipping
Payment Methods:
Port of Shipment:
Ports in Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
TINCAM

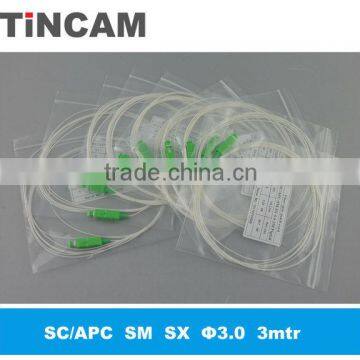

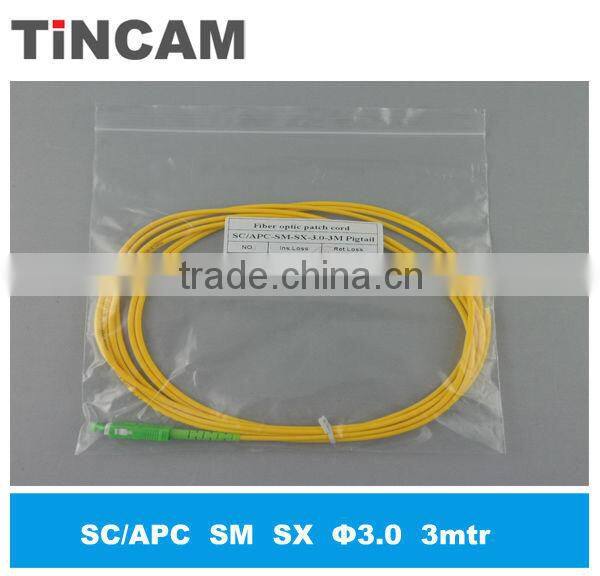

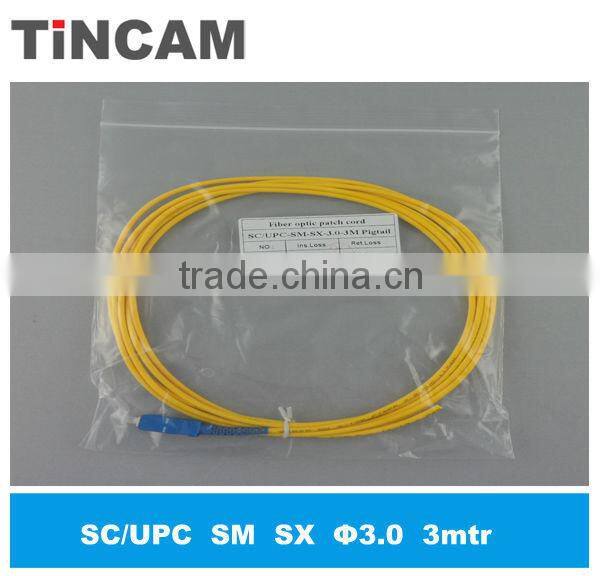

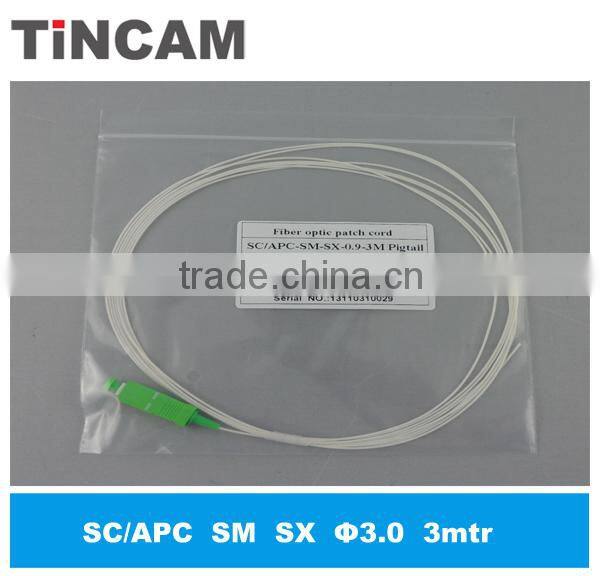

single mode 5m LSZH fiber optic pigtail
1)Specification
- Fiber optic pigtail
- Manufacturer
- 100% tested before delivery
- Custom Cable, Connector...
- Good Quality at Fair Price
2)Usage environment
- Temperature range: -40º C~+80º C
3)Photoelectricity specifications
- 1. Insertion loss: <0.3dB
- 2. Insert-pull test: <0.2dB
- 3. Interchangeability: <0.2dB
- 4. Anti-tensile force: >10N
4)Features
- 1. Excellent interchangeability
- 2. High mechanical durability
5)Applications
- 1. Communication Workshop
- 2. FTTH
- 3. Local Area Network
- 4. Fiber Sensor
- 5. CATV
- 6. Fiber Optical Communication Systemy
6)Performance Index
| Item | SM | MM | |||
| Connector Type | LC SC ST FC fiber optic pigtail | ||||
| Fiber Diameter(um) | 9/125um | 50/125um | 62.5/125um | ||
| Cable OD(mm) | 0.9 | ||||
| length | |||||
| Endface Type | PC | UPC | APC | PC | PC |
| Typical Insertion Loss(dB) | <0.30dB | <0.30dB | <0.30dB | <0.30dB | <0.30dB |
| Return Loss(dB) | >45dB | >50dB | >60dB | ||
| angle | N/A | N/A | 8±0.3° | N/A | N/A |
| Insert-pull Test(dB) | <0.20dB | <0.20dB | <0.20dB | <0.20dB | <0.20dB |
| Interchangeability(dB) | <0.20dB | <0.20dB | <0.20dB | <0.20dB | <0.20dB |
| Anti-tensile Force(N) | >10 | ||||
| Temperature Range(ºC) | -40ºC~+80ºC | ||||
