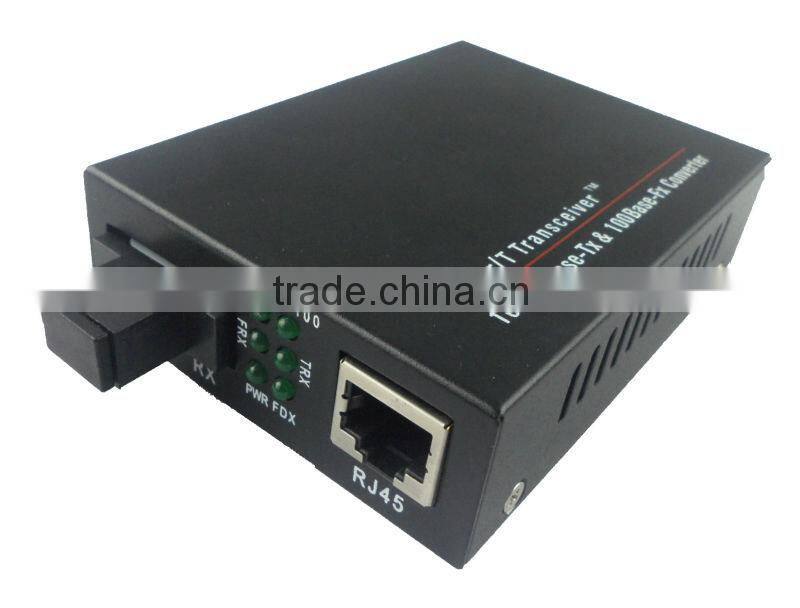

single fiber 10/100M fibre multimode

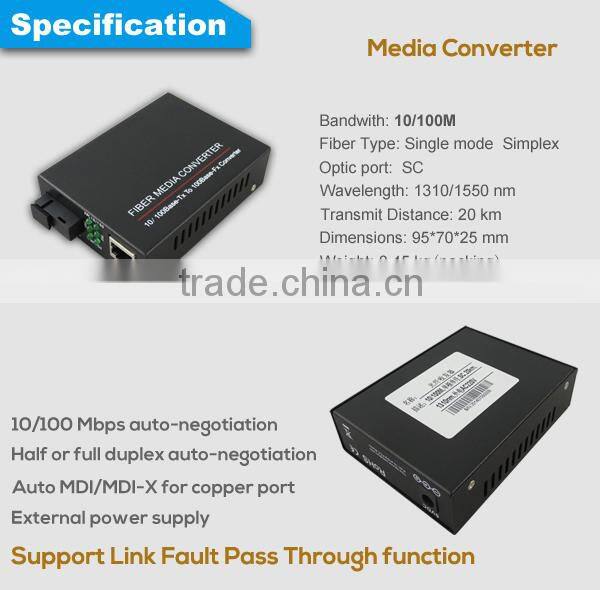

DESCRIPTION
Media Converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-TX segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding work groups that require expansion of the Ethernet network. It can extend the conventional 10M Ethernet or 100/1000M Fast Ethernet to 20Km-120Km via the fast Ethernet Fiber-optical Line. It is high performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
TECHINCAL SPECIFICATIONS
Standard Protocol |
IEEE802.3 10 Base-T standard |
|||
IEEE802.3u 10/100Base-TX/FX standard | ||||
IEEE 802.3d standard. | ||||
IEEE 802.3Q standard. | ||||
Band Width |
RJ 45 Port: 10/100Mbps |
Optical Port: 155Mbps |
||
Operation Mode |
Full /Half duplex mode |
|||
Connectors |
UTP: RJ-45 |
Fiber connector: SC/ST/FC |
||
Operation Mode |
Full /Half duplex mode |
|||

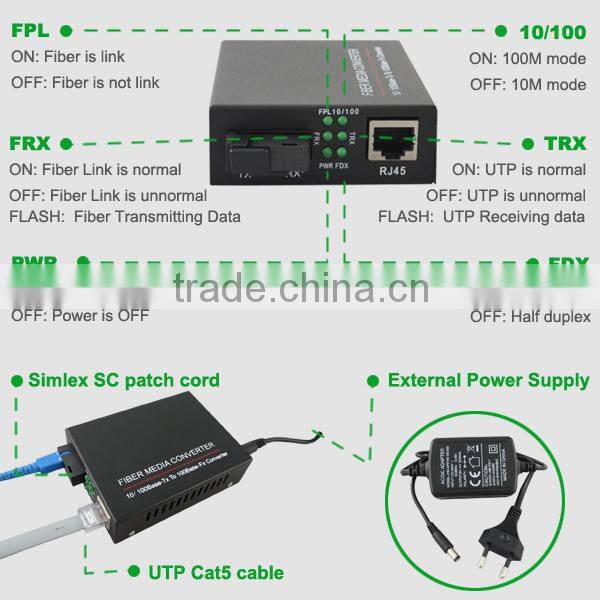

LED Indicators |
POWER, FPL,10/100, FRX, TRX , FDX. |
|||
Power Supply |
External |
DC-48V,DC24V,DC12V,DC5V |
||
Internal |
AC110-250V/50Hz |
|||
DC -32~-72V | ||||
Power Consumption |
≤5W |
|||
Environmental Parameters |
Work Temperature |
0°C~50°C (32°F~ 122 °F ) |
||
Storage Temperature |
-40°C~70°C (-40°F~ 158 °F ) |
|||
Humidity |
5%~90% non-condensing |
|||
TP Cable |
Cat5 UTP cable (the max distance up to 100m) |
|||
Fiber Cable |
8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) |
|||
50/125, 62. 5/125μm(the max distance up to 2km or 5km) | ||||
MTBF (Hours) |
>50000 |
|||
Dimensions(mm) |
External power supply |
94mm*70mm*25mm (3.7*2.8*0.98 inch) |
||
Internal power supply |
140mm*110mm*30mm (5.5 *4.3*1.2 inch) |
|||
Socket Card |
157mm*128mm*31mm (6.2*5.1*1.2 inch) |
|||
Gross Weight |
External power supply |
0.4 kg |
||
Internal power supply |
0.8kg |
|||
Socket Card |
1.0kg |
|||
Emission/Safety |
FCC Part 15 , Class A, RoHS and CE Mark |
|||

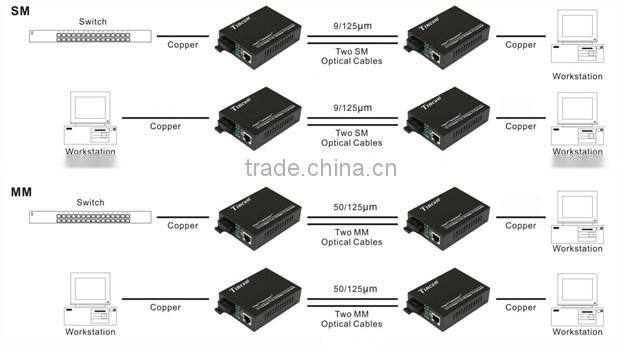

APPLICATION

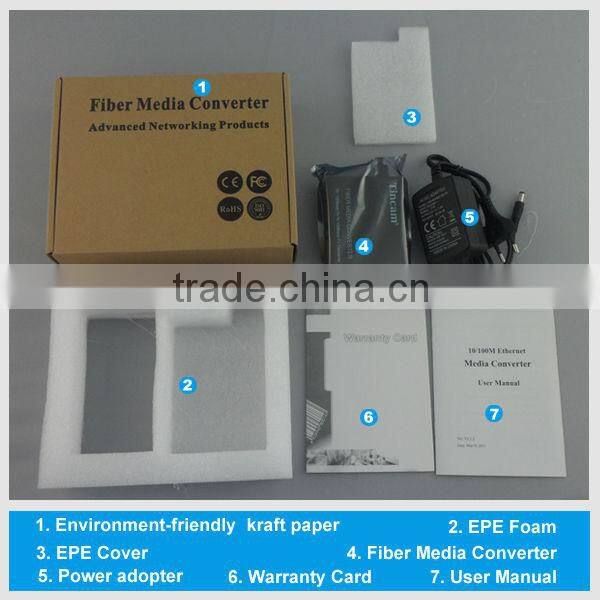

PACKING

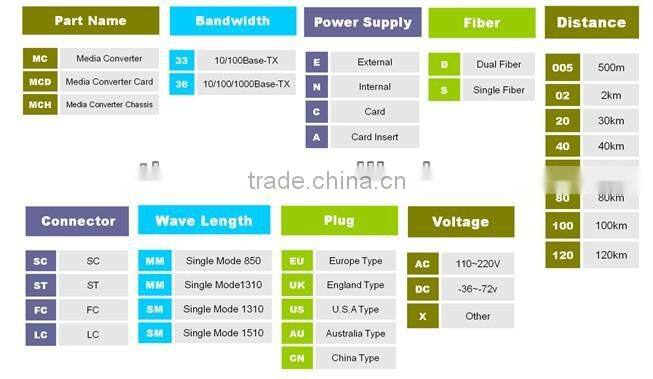

Part Number Generator
You May Interest In
Shen zhen TianBo Communication Equipment Co. LTD is specialize in Fiber Optic Data Transmission Equipment, Network Communication Product,Video Surveillance Equipment.We are a high-tech enterprise with R&D ,manufacture ,sales and service.
Devote to research and development , Concentrate On Quality ,Shen zhen TianBo cohesion a group of research, develop , design and sales team .Shen zhen TianBo’s product enjoy a good reputation in domestic and oversea fiber industry market. Tian Bo supply high quality Fiber media converter with competitive price ,which mainly including Fiber media converter ,Video/Audio Optic Transceiver ,Interface Converter ,PDH Multiplexer,Fiber optical Modem and Passive Component like PLC Splitter ,Patch cord ,Adapter ,Attenuator and FTTH wiring products .Products with high integration, superior performance, reliable, simple maintenance, etc.
Products widely used in telecommunications, mobile, Unicom, electricity, broadcasting, military, government, public security, intelligent transportation, education, banking, safe area And gain recognition from customer.
Viewing quality as the life of enterprise,which is guaranteed by the scientific management with the assistances advanced testing equipments and product under the strict guidance of ISO9001:2000,meet the ministry of information industry,and successively passed CE,FCC,RoHS authentication.
