Gigabit Ethernet Fibre Optic Media Converter
US$ 40 - 60
MOQ: 1 Pair
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TINCAM
Model Number:
TBC-MC3302E-D20
Payment & Shipping
Payment Methods:
Port of Shipment:
Ports in Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fast Ethernet Dual Fiber Media ConverterUS$ 40 - 60MOQ: 2 Pairs -
Fast Ethernet Single Mode Dual Fiber 2km Media ConverterUS$ 40 - 60MOQ: 2 Pairs
-
2U 19''16 Slots Fiber Chassis With DC40V+DC48VUS$ 80 - 200MOQ: 2 Pairs
-
2U 16slots Fiber Rack With Dual Power AC220V+AC220VUS$ 80 - 200MOQ: 2 Pairs
-
RS232/RS485/RS422 Serial Port Fiber Optic ModemUS$ 30 - 50MOQ: 2 Pieces
Place of Origin
Guangdong, China
Brand Name
TINCAM
Model Number
TBC-MC3302E-D20

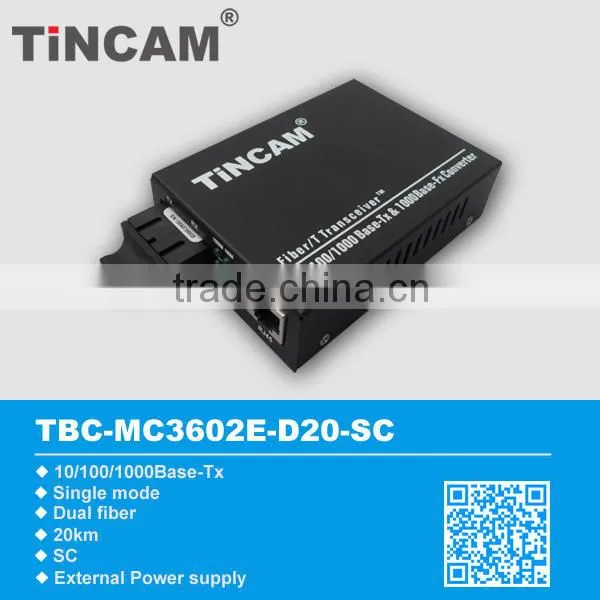

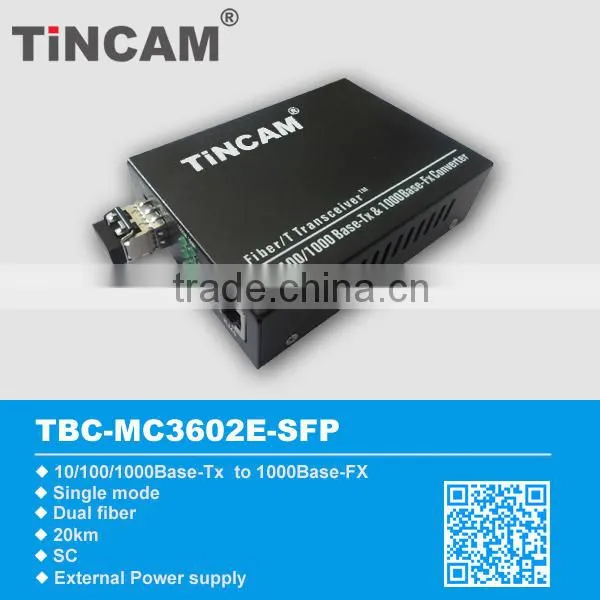

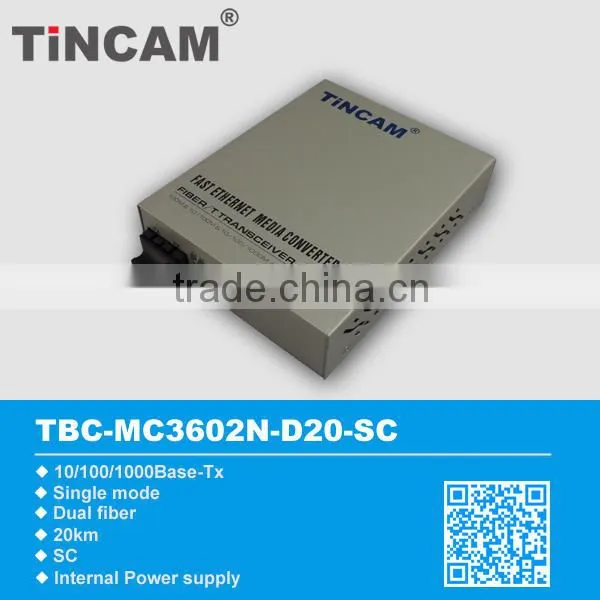

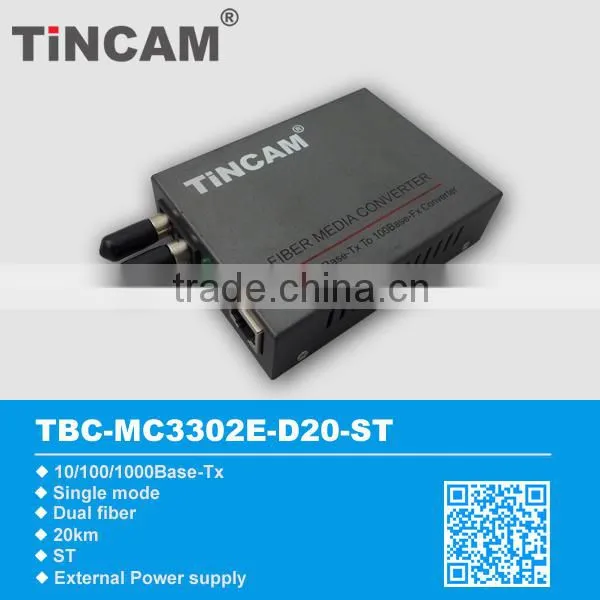

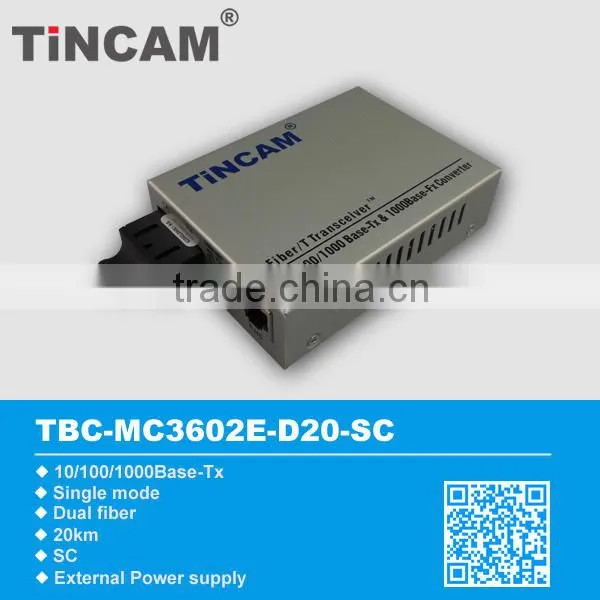

gigabit Ethernet Fibre Optic media Converter
Description
Fibre Optic Converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-TX segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network. It can extend the conventional 100M Ethernet or 100/1000M Fast Ethernet to 20Km-120Km via the fast Ethernet Fiber-optical Line. It is high performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
Featrures
- Provide one fiber connector and one UTP connector
- Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.2ab 1000Base-TX, IEEE802.3z 1000Base-FX standard
- Auto-detection of half/full duplex transfer mode for TX port
- Auto-negotiation of 10/100/1000Mbpa rate and Auto-MDI/MDIX for TX port
- Provide switch configuration of half/full duplex transfer mode for FX port
- Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
Indication light TP/ACT, FX/ACT, FDX, 1000,100 POW
Easy-to-view LED indicators provides status to easily monitor network activityInternal power suppl
Specification:
| Band Width | RJ 45 Port:10/100/100Mbps | Optical Port: 1.25Gbps |
| Standard Protocol | IEEE802.3 1000 Base-T standard | |
| IEEE802.3u 10/100/1000Base-SX/TX standard | ||
| IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree | ||
| IEEE 802.3z standard. | ||
| IEEE 802.3ab standard. | ||
| Connectors | UTP RJ-45 | SC/ST/FC Fiber connector |
| Operation Mode | Full /Half duplex mode | |
| Power Supply | External | 5V DC 2A |
| Interna | AC 100-250V/50~60Hz | |
| DC -36~-72V | ||
| Power Consumption | ≤5W | |
| LED Indicators | POW, FDX, TXLink / ACT, SPD, FXLink / ACT, FDX | |
| Environmental Parameters |
Work Temperature | 0°C~50°C |
| Storage Temperature | -40°C~70°C | |
| Humidity | 5%~90% non-condensing | |
| TP Cable | Cat5 UTP cable | |
| Fiber-optic cable | 50 / 125µm or 62.5 / 125µm multi-mode fiber cable, up to 220 / 550m | 9 / 125µm single-mode cable, provides long distance for 20 /40/ 60/ 80/120km |
| Dimensions(mm) | External power supply | 94mm*70mm*25mm |
| Internal power supply | 140mm*110mm*30mm | |
| Socket Card | 157mm*128mm*31mm | |
| MTBF (Hours) | Over 50000 | |
| Emission/Safety | FCC Part 15 , Class A, RoHS and CE Mark | |

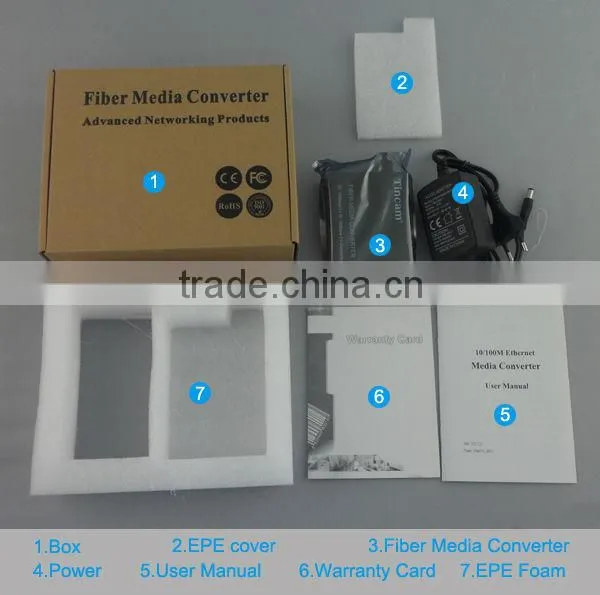

Packaging & Shipping
