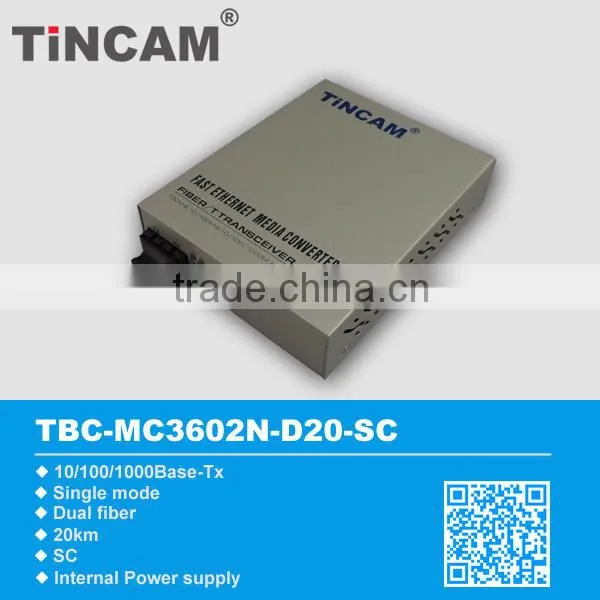

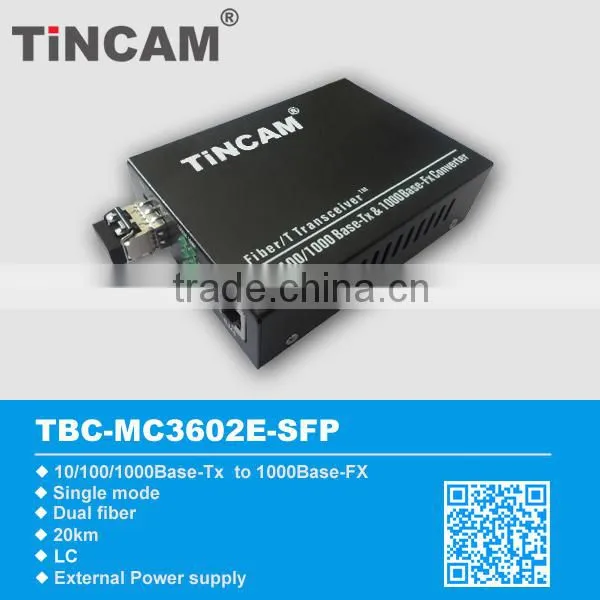

Fast Ethernet dual fiber Media Converter
DESCRIPTION
Media Converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-TX segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network. It can extend the conventional 10M Ethernet or 100/1000M Fast Ethernet to 20Km-120Km via the fast Ethernet Fiber-optical Line. It is high performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
FEATURES
n Provide one fiber connector and one UTP connector
n Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.2ab 1000Base-TX, IEEE802.3z 1000Base-FX standard
n Auto-detection of half/full duplex transfer mode for TX port
n Auto-negotiation of 10/100/1000Mbpa rate and Auto-MDI/MDIX for TX port
n Provide switch configuration of half/full duplex transfer mode for FX port
n Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber
n Compacts size for easy installation and working with Media Chassis
n Choice of fiber-connector from SC, LC and WDM, multi-mode / single-mode fiber for 1000Base SFP interface
n Easy-to-view LED indicators provides status to easily monitor network activity Internal power supply
n 1000Base-SX: 50/125ìm or 62.5/125ìm multi-mode fiber cable, up to 220/550m
n 1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
n Back pressure flow control for full duplex IEEE802.3 X and half duplex.
TECHINCAL SPECIFICATIONS
Standard Protocol |
IEEE802.3 1000 Base-T standard |
||
|
IEEE802.3u 10/100/1000Base-SX/TX standard |
||
|
IEEE802.1q, IEEE802.1p QoS |
||
|
IEEE802.1d Spanning Tree |
||
|
IEEE 802.3z standard. |
||
|
IEEE 802.3ab standard. |
||
Band Width |
RJ 45 Port: 10/100/1000Mbps |
Optical Port: 1.25Gbps |
|
Operation Mode |
Full /Half duplex mode |
||
Connectors |
UTP: RJ-45 |
Fiber connector: SC/ST/FC/LC |
|
Operation Mode |
Full /Half duplex mode |
||
LED Indicators |
POWER, FPL,10/100, FRX, TRX , FDX. |
||
Power Supply |
External |
5V DC 2A |
|
|
Internal |
AC110-250V/50Hz |
|
|
|
DC -32~-72V |
|
|
Power Consumption |
≤5W |
|
Environmental Parameters |
Work Temperature |
0℃~50℃ (32 °F ~ 122 °F ) |
|
|
Storage Temperature |
-40℃~70℃ (-40 °F ~ 158 °F ) |
|
|
Humidity |
5%~90% non-condensing |
|
TP Cable |
Cat5 UTP cable (the max distance up to 100m) |
||
Fiber Cable |
8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) |
||
|
50/125, 62. 5/125μm(the max distance up to 2km or 5km) |
||
MTBF (Hours) |
>50000 |
||
Dimensions(mm) |
External power supply |
94mm*70mm*25mm (3.7 *2.8*0.98 inch) |
|
|
Internal power supply |
140mm*110mm*30mm (5.5 *4.3 *1.2 inch) |
|
|
Socket Card |
157mm*128mm*31mm (6.2 *5.1 *1.2 inch) |
|
Gross Weight |
External power supply |
0.4 kg |
|
|
Internal power supply |
0.8kg |
|
|
Socket Card |
1.0kg |
|
Emission/Safety |
FCC Part 15 , Class A, RoHS and CE Mark |
||
