Specifications
Have three Loop Back Mode:E1 interface Loop Back (ANA)
V.35 interface Loop Back(DIG)

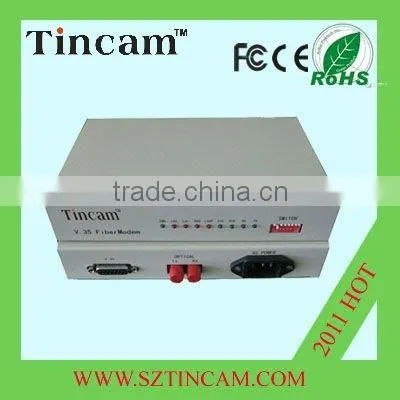

v 35 Fiber Optical Modem
Compatible with V.35 Standard DB25 v 35 Fiber Modem
Description:
This device provides one fiber interface and one V.35 interface to achieve interface conversion, rate conversion and timeslot extraction from fiber to V.35 interface. When unframed mode,The data channel rate is 2.048Mbps. The device has inter-set loop test function to facilitate the project launching and daily maintenance.
Function and Characteristic
Based on self -copyright IC
Can detect the reason of optical signal losing is that the device power-off or transmission fiber broken
The local device can forced the remote device rate follow it(valid when framed )
Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
After strict testing and practical verification system, completely comply with protocol ITU-T V.35, G.703, G.704
Have three Loop Back Mode: E1 interface Loop Back (ANA),V.35 interface Loop Back(DIG),Command the remote V.35 interface Loop Back(REM)
Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester
V.35 interface supports hot-plug, supports DTE or DCE device interconnection
Provide 3 clock types: Internal clock, External clock,E1 line clock;
AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free
Performance guideline
|
Multi-mode Fiber
|
50/125um, 62.5/125um, Maximum transmission distance: 5KM 62.5/125um single mode fiber, attenuation (3dbm/km) Wave Length: 820nm Transmitting power: -12dBm (Min) ~-9dBm (Max) Receiver sensitivity: -28dBm (Min) Link budget: 16dBm |
|
Single-mode Fiber
|
8/125um, 9/125um Maximum transmission distance: 40Km Transmission distance: 40KM 9/125um single mode fiber, attenuation (0.35dbm/km) Wave Length: 1310nm Transmitting power: -9dBm (Min) ~-8dBm (Max) Receiver sensitivity: -27dBm (Min) Link budget: 18dBm |
V.35 Interface |
Interface rate: 2048Kbps Interface Standard: Compatible with V.35 Standard Connector: DB25 Connect Mode: DCE Clock Type: Internal clock, External clock,V.35 external clock
|
Power |
Power supply: AC180V ~ 260V;DC –48V;DC +24V Power consumption: ≤5W |
Working environment |
Working temperature: -10°C ~ 50°C Storage temperature: -40°C ~ 80°C
|
Dimension |
Mini Type:216(width)X140(depth)X31(height)mm 19 inch 1U:483(width)X138(depth)X44(height)mm
|
