Specifications
A Support Console, WEB and SNMP managementB Provide environment parameter monitoring, including power supply status and device
RS232 fiber modem

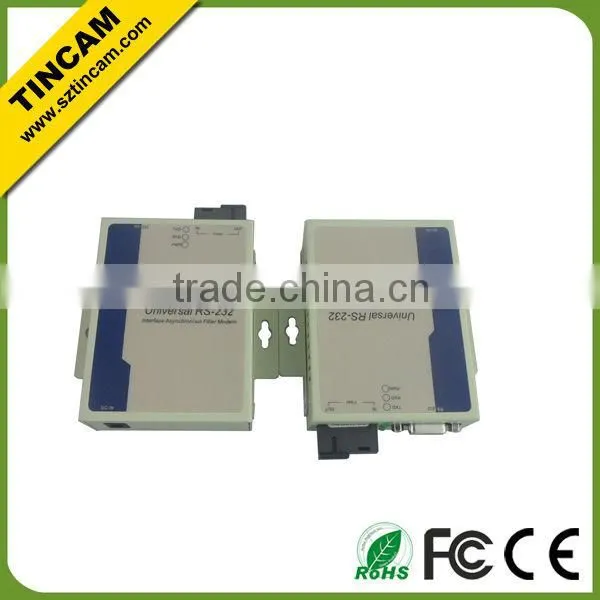

RS-232Serial Optic Fiber Modem
Model 168 is a sort of more function and economy RS-232 interface optic fiber Modem. It is the best choice to connect RTU to HOST or SCADA controller. It used optic fiber as transfer medium, increase the transfer function of system. Communication equipment abstain menace effective to lightning strike, surge, electromagnetism disturb under the scurviness environment.
Function and Characteristic
a) Support RS-232interface
b) Asynchronous, point to point, rate up to 500Kbps
c) Support 9V-40V power input, consumption 2W
d) 1500W surge protection, 15KV static protection
e) RS-485/422 port support 32 node ( can choice handtailor 128 Node)
f) Working wavelength: 850nm(multi-mode)1310nm(single mode)
g) Auto test signal rate, zero delay auto transmit.
Performance guideline
| Interface: | support EIA RS-232 | |
| Rate: | 0-500Kbps | |
| Transmit distance: | RS-232 port 15m, | |
| optical port multi-mode 2KM, single-mode20KM | ||
| Working environment: | -25°C to 70°C | |
| Interface type: | 8 bit terminal block, multi-mode choice ST/ SC/FC interface, | |
| single-mode choice FC/SC/ST interfac | ||
| Dimension | 100mm*69mm*22mm( L*W*H) | |
| Indicator light explain | Power: | Power indication |
| RxD: | Optical fiber interface receive indication | |
| TxD: | Optical fiber interface send indication | |
