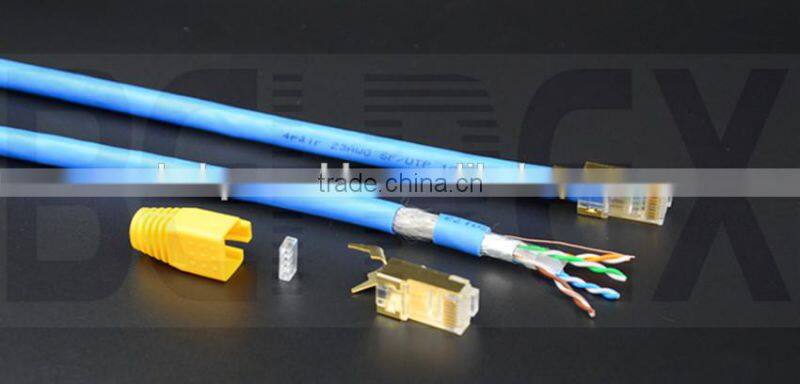

High Quality 4 Pair FTP Cat5e Cable With Fast Ethernet Speeds For Ethernet

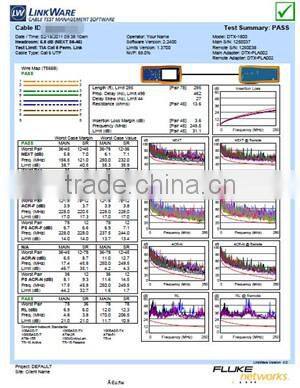

Fluke DTX 1800 Permanent Link Test
Features
TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor installation
Construction

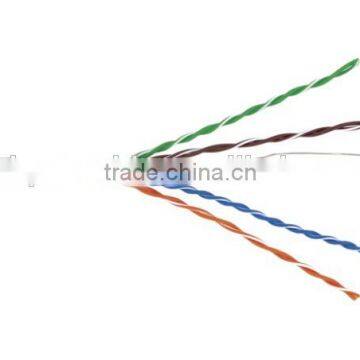

Conductor: Bare Solid Copper Pair Identification: Pair1= Blue/White Pair2= Orange/White
Conductor Dia.:0.51mm+0.05mm (24AWG) Pair 3= Green/White Pair4= Brown/White
Pair Indulation: Polyethylene Drain Wire Diameter:0.50mm
Outer Cable Diameter:6.0 ± 0.2mm
Outer Jacket: PVC/LSZH/CM/CMR/CMP Jacket
TECHNICAL MECHANICAL
Installation Temperature: 0°C to +60°C Pulling strength: 130 N
Operating temperature: -20°C to +75°C Minimum bend radius: 4 outer cable diameters
DC Resistance Unbalance :5% Dielectric Breakdown:1000 Volts DC Conductor to Conductor
Pair-to-Ground Capacitance Unbalance :330 pF/100 m Velocity of Propagation:PE=65%
Capacitance:14pF/ft nominal Maximum Skew:45ns@100 meters
PACKAGING
305m/1000ft Easy pulling box; 500m/wooden reel;1000m/wooden reel
ELECTRICAL CHARACTERISTICS
Frequency, MHz |
RL |
Attenuation, dB |
NEXT, dB |
PSNEXT, dB |
ELFEXT, dB |
PSELFEXT, dB |
0.772 |
- |
2.2 |
67 |
64 |
- |
- |
1 |
20 |
2.4 |
65,3 |
62.3 |
63.8 |
60.8 |
4 |
23 |
4.8 |
56.3 |
53.3 |
51.7 |
48.7 |
8 |
24.5 |
6.9 |
51.8 |
48.8 |
45.7 |
42.7 |
10 |
25 |
7.7 |
50.3 |
47.3 |
43.8 |
40.8 |
16 |
25 |
9.9 |
47.3 |
44.3 |
39.7 |
36.7 |
20 |
25 |
11.1 |
45.8 |
42.8 |
37.7 |
34.7 |
25 |
24.3 |
12.5 |
44.3 |
41.3 |
35.8 |
32.8 |
31.25 |
23.6 |
14.1 |
42.9 |
39.9 |
33.9 |
30.9 |
62.5 |
21.5 |
20.4 |
38.4 |
35.4 |
27.8 |
24.8 |
100 |
20.1 |
26.4 |
35.3 |
32.3 |
23.8 |
20.8 |

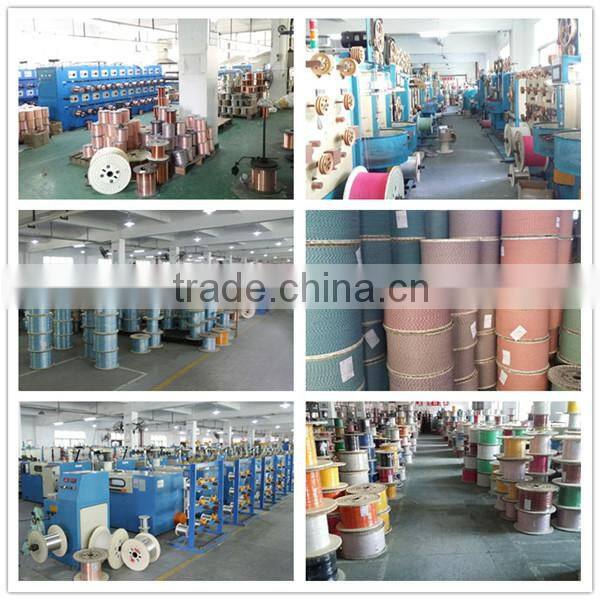

Product Procedure
Test Limit
CAT.6 DTX 1800 Fluke Permanent Link Test at250MHZ

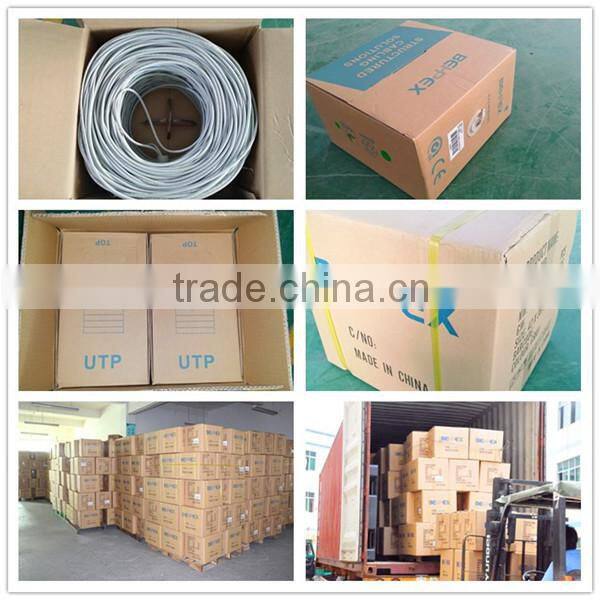

Packing
Related Products

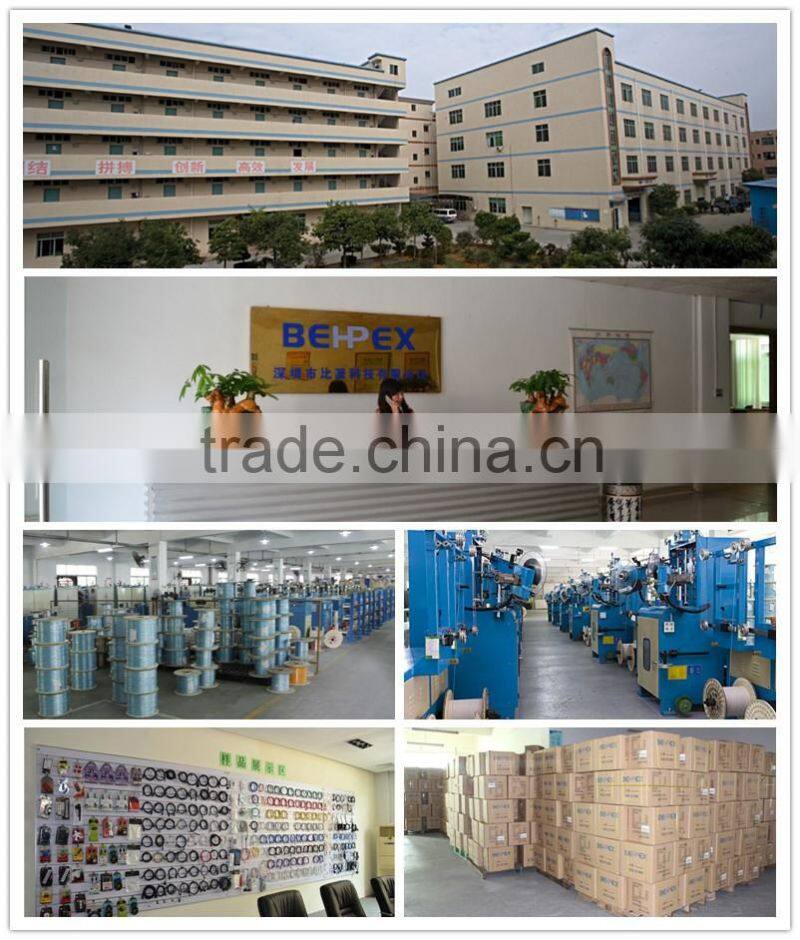

Factory Info
