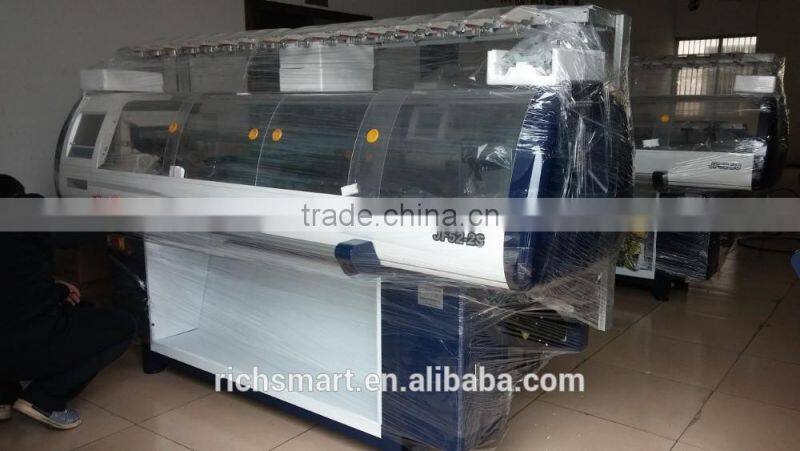

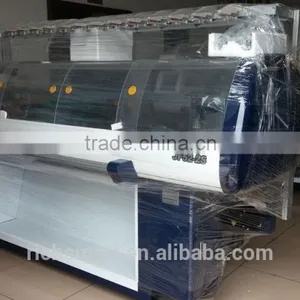

Help CenterPopular Style 52"/80" Computerized Flat Knitting Machine for Sweater
Related Products
-
2014 Newest Type 52"/60"/72" Computerized Flat Knitting Machine With ISO9001 Standard For SweaterUS$ 10,000 - 19,000MOQ: 1 Set -
2014 Newest Type 60" Computerized Sweater Knitting Machine With ISO9001 StandardUS$ 7,000 - 16,000MOQ: 1 Set
-
2014 Newest Type 60" Full Jacquard Flat Knitting Machine With ISO9001 Standard For SweaterUS$ 7,000 - 16,000MOQ: 1 Set
-
2014 Newest Type 72" Double System Computerized Flat Knitting Machine With ISO9001 Standard For SweaterUS$ 10,000 - 19,000MOQ: 1 Set
-
2014 Popular Type Double System Fully Computerized Flat Knitting Machine With ISO9001 Standard For SweaterUS$ 7,000 - 15,000MOQ: 1 Set
Knitting width:52" 60" 80"
Gauge:7G,9G,10G,12G,14G,16G,3-5-7 multi-gauge
Computer Control System:Hengqiang(the most famous in China)
Packing:Plywood case
Application:Sweater,Cap,Scarf,Collar etc.
Double system with single carriage
Main Parameters
Gauge |
3.5G,5G,7G,10G,12G,13G,14G,multi-gauge3-5-7G |
Knitting width |
52"(normal) 60" 80" 100" |
Knitting speed |
Controlled by AC servo motor with 64 sections speed optional, max 1.2m/s.with high-speed digital signal processor (DSP) to control IGBT to achieve accurate electric current output. |
Knitting system |
double system with single carriage |
Knitting function |
Knit, miss, tuck, transfer, pointelle, intarsia, jacquard, hide, or apparent shaping and other regular patterns. |
Racking system |
Controlled by AC servo motor racking within 2 inches, support fine adjustment. |
Needle detection |
Capable of all-dimensional needle detection alarming |
Encoder |
Advanced encoder adopted. |
Transfer cam |
Combined type transfer cam, both single and double system all can transfer separately or synchronously, high efficiency. |
Stitch density |
Controlled by stepping motor, 24 sections density selectable, |
Sinker system |
Controlled by stepping motor, adjustable to different knitwear |
|
Take down roller (optional) |
Computerized, controlled by stepping motor,24 levels selection of tension with adjustable scope:0-100 |
Yarn feeder |
2x8 yarn feeders, (special intarsia yarn feeders are optional). |
Protection system |
The machine will automatically alarm if yarn-breaking, knots floating, rewind, end of knitting, fail of racking, needle jack crash, error programming occur, also with safety auto-lock protection device. |
Control system |
1. LCD touch screen, graphical interface. USB and network compatible, with expanded memory of up to 2G. 2. Monitoring display: Various operating parameters can be displayed and can be adjusted anytime. 3. Design system and control system (software) are easy to update for free. |
Power supply |
Single-phase 220V and triples-phase 380V, adopt advanced CMOS technology enabling memorizing at the instant of power outages and restoring of knitting thereafter. |

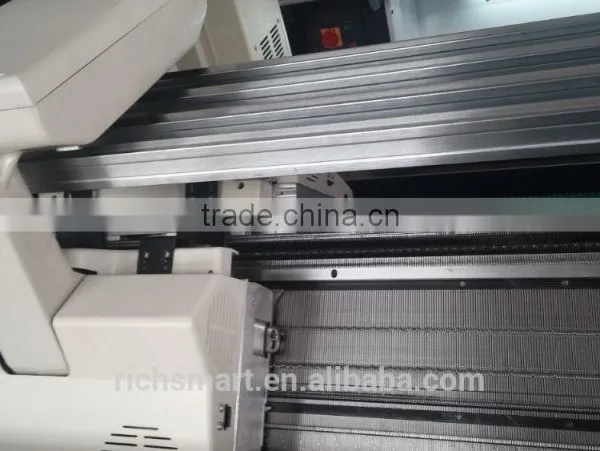

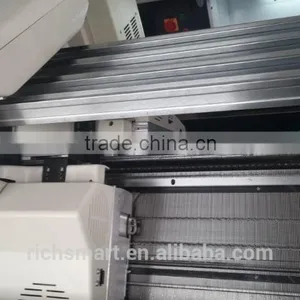

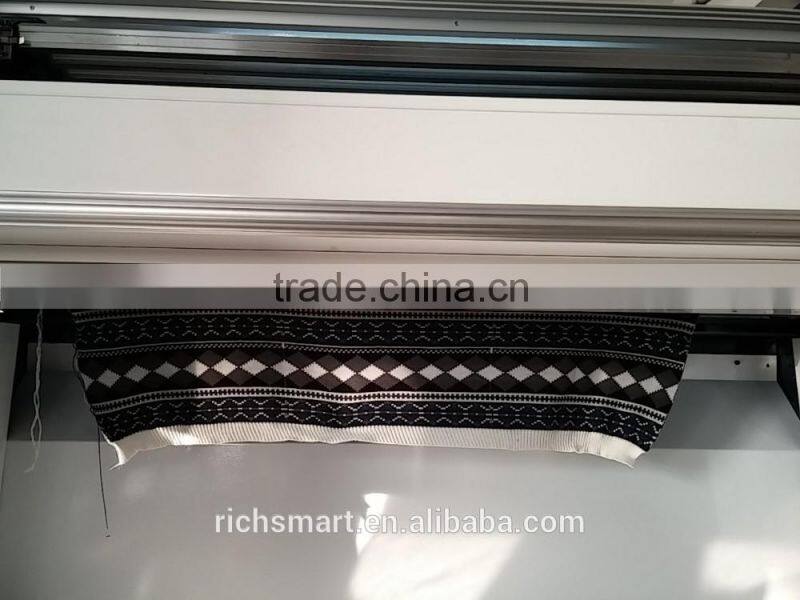

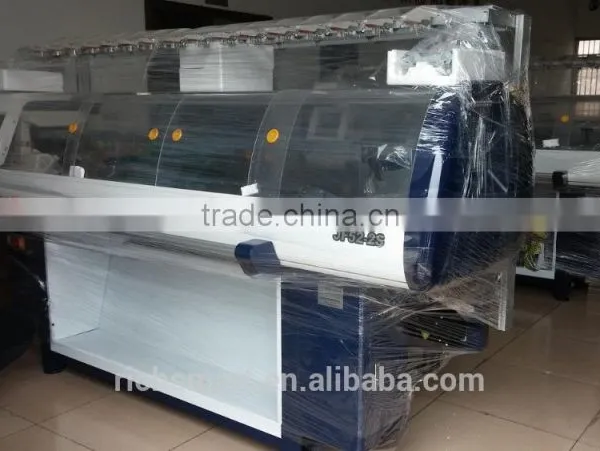

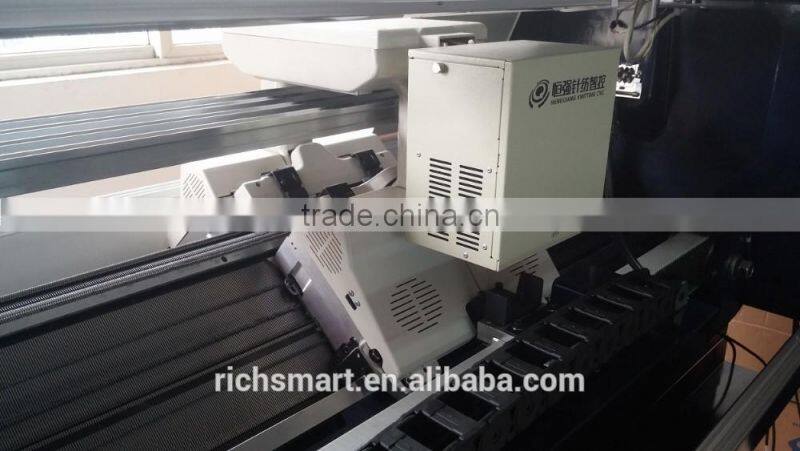

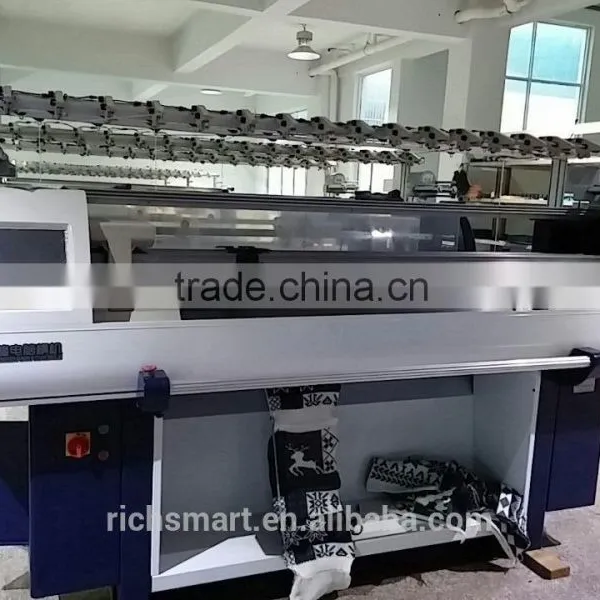

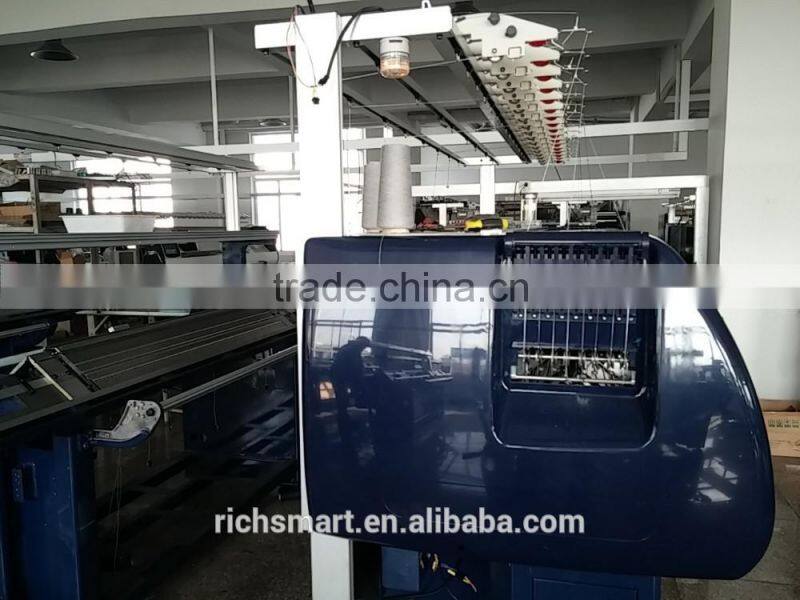

Details1
Details2
Details3
Details4
Details5
Sample pieces

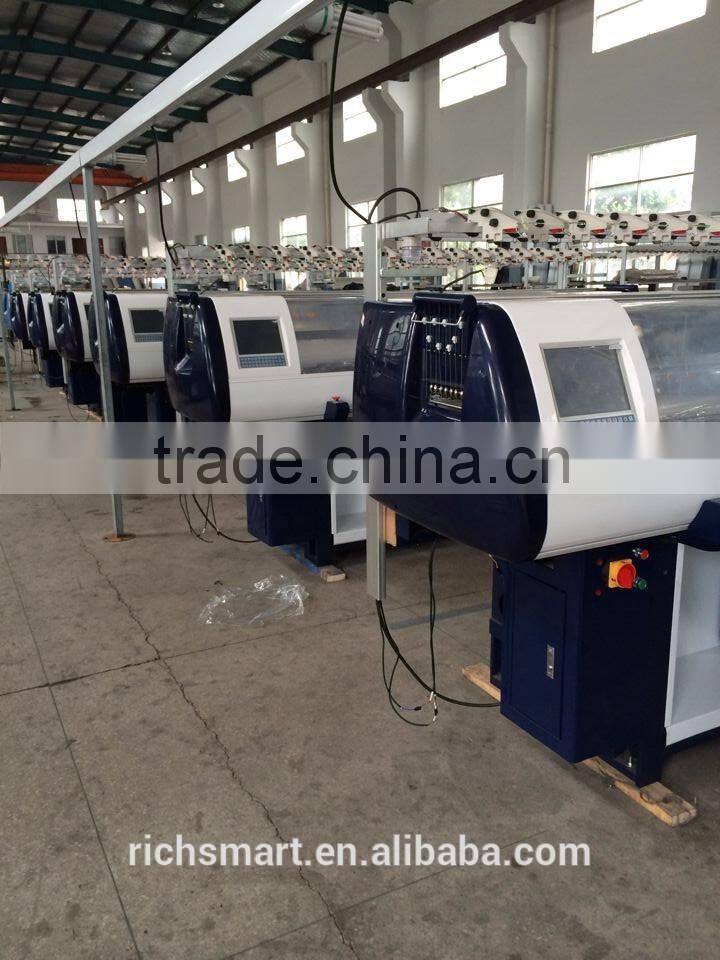

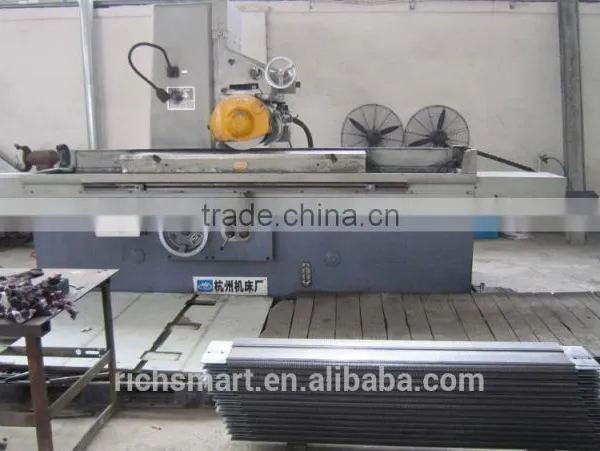

Workshop
1
2
3
