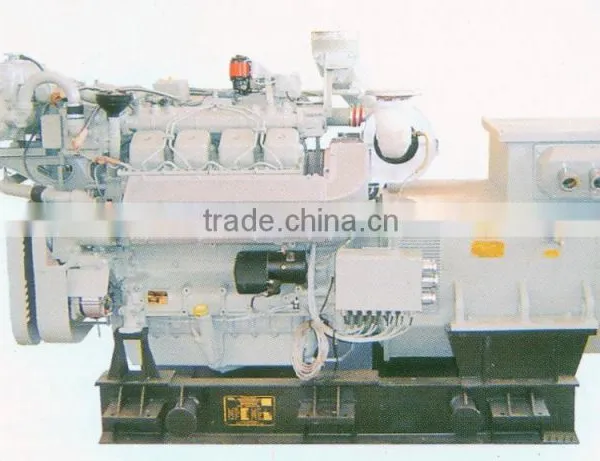

3 phase marine generatorwith MWM engine 300kw
1 factory directly sale
2 one year or 1000 working hours warranty
3 CCS approved
4 stability.reliability and easy-service
5 low opreating and maintenance cost
6 widely used,location to meet customer needs
7 Easy-installation,easy operation and maintenance
Main Parameter of marine Generator
Prime power |
300 kW |
Standby power |
375 kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Noise dB(A) @7m |
100 |
Engine model |
TBD236V8 |
Alternator model |
MP-H-300-4 |
Engine Specification
MWM Diesel Engine
Technical Data
Engine Model |
TBD314V8 |
Number of Cylinders |
8 cylinders in V |
Cycle |
4 stroke |
Aspiration |
Turbocharged and after cooled |
Bore×Stroke |
132 x140 mm |
Displacement |
15.2 L |
Compression ratio |
15:1 |
Prime Power/Speed |
330 KW/1500rpm |
Speed Governor |
electrical |
Cooling System |
By heat exchanger |
Fuel Consumption at 100% Load |
195 g/kw.h |
Starter Motor |
DC24V |
Alternator Specification
Marathon Alternator
Technical Data
Alternator model |
MP-H-300-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
300 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
Alternator option: Sunvim,Stamford.
Alternator Brand |
Alternator Model |
Phase |
Rated Speed |
Rated Prime Power |
Sunvim |
SVH354C |
3 |
1500RPM |
300 |
Stamford |
HCM4F |
3 |
1500RPM |
300 |
Control System
Control System ED211ZFD2
All FENGDE marine gensets have a control cubicle (the ENDA ED211ZFD2 as standard) mounted on a isolated support, which has the following features.
Microcomputer digital control, and reliable work
Digital display of parameters of diesel engine, and integration of measuring and monitoring
Modularization of functional configuration, and integration of product structures
Resistance to vibration, humidity, salt mist and high/low temperature
Powerful ability to resist interference, convenient installation and use, and high performance-price ratio
Remote monitoring of running parameters
Automatic zero set of lubricating oil pressure
Accumulation of running period of diesel engine

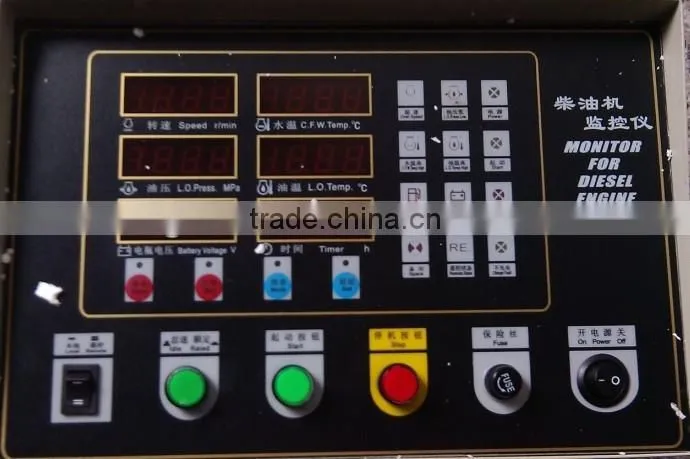

The control module display
Lube oil temperature
Lube oil pressure
Water temperature
Engine speed
Battery voltage
Engine run-time (Hours)
Certificate & Document
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
