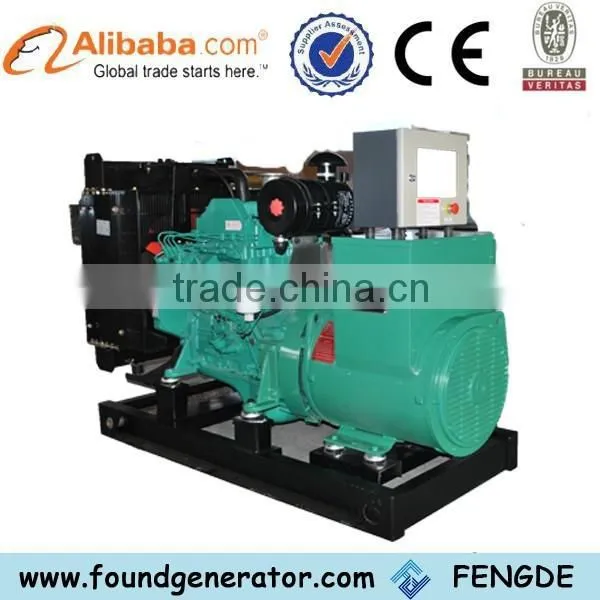

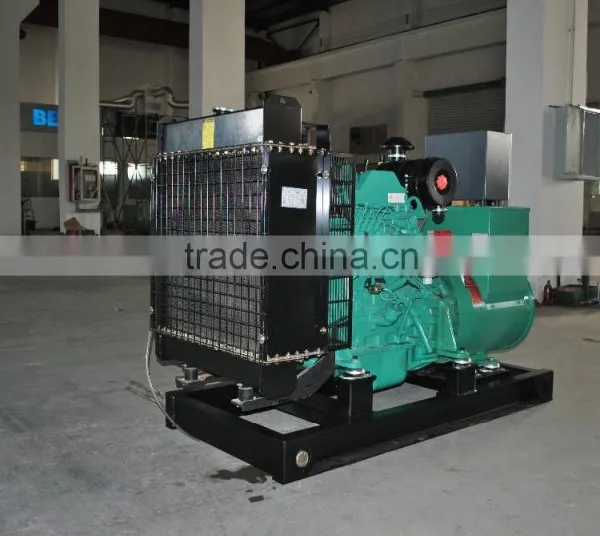

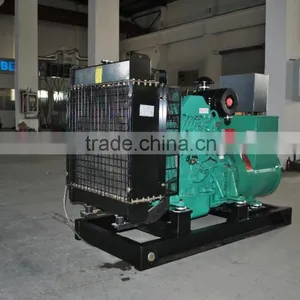

45kw Stable Power Land Diesel Generator

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

JG45GFC

Taizhou Fengde Mechanical & Electrical Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JG

Model Number JG45GFC

Output Type AC Three Phase

Speed 1500r/min

Frequency 50Hz

Rated Power 45KW/56.25KVA

Rated Voltage 400V/230V

Rated Current 81A

We are the top VIP supplier on Alibaba authorized by famous certification authority-CCS

45kw stable power land diesel generator

Genset general feature:

1.Generator can be used as Main Marine generator , Marine emergency generator or Harbor generator

2.CCS,BV approved

3.Cooled by heat exchanger / radiator

5.Marathon single-shaft alternator standard , Stamford alternator is optional

6.Parallel connection: Two and more normal marine generating sets can transfer loading without stoping ,

and can realize parallel.

7.Standard SAE coupling the engine and alternator

8.With efficiency anti-vibration devices

9.Cold rolled steel one time molded base

10.High reliability , low use and maintenance cost

1.Main technical data of gensets
1.1	Model	JG45GFC
1.2	Prime power	45KW
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	980kg
1.6	Overall dimension	1760×730×1250mm (just for reference)
2.Main technical data of engine
4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.2	Model	4BTA3.9-G2
2.3	Prime power	50KW
2.4	Governor type	Electronic
2.5	Configuration	4 cylinder in line
2.6	Cooling method	By radiator
2.7	Bore/Stroke	102×120 mm
2.8	Displacement	3.9 L
2.9	Starting method	Electric
2.10	Fuel consumption	12.9L/h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-50-4
3.3	Prime power	50KW/62.5KVA
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
