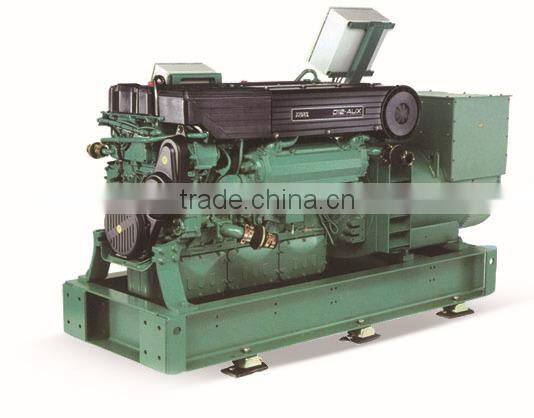

Help CenterWorld Famous Brand Volvo 70kw Marine Diesel Generator
Related Products
-
Hot Sale Volvo 62KW Diesel Generator for SaleUS$ 17,500 - 999,999MOQ: 1 Set -
Hot Sale Volvo 70KW Diesel Generator CE ApprovedUS$ 1 - 99,999MOQ: 1 Set
-
2015 CCS,ABS,BV Approved 40kw-1000kw Volvo Marine Diesel GeneratorUS$ 6,000 - 18,000MOQ: 1 Set
-
Fast Delivery!CCS,ABS,BV Certifi Volvo Inborad Marine Diesel GensetUS$ 6,000 - 18,000MOQ: 1 Set
-
2015 Factory Price&High Efficiency Volvo Marine Diesel GensetUS$ 6,000 - 18,000MOQ: 1 Set
Specifications
1,factory direct sale2,high quality
3,1000 working hours or one year warranty
4,CE,CCS approve
We are specific in this field for more than 20 years and the top vvip supplier on Alibaba!
We have our own factory and many senior engineers.
Our products can meet the needs of different voltage and frequency.
If you have any demands not hesitate to contact us!
Criterion
GB/T13032-1991
ISO9001:2008 Quality Control System
CCS approved
Engine Specification
Volvo Diesel Engine
Technical Data
Engine Model |
D5AT/77 |
Number of Cylinders |
4 cylinders in L |
Cycle |
4 stroke |
Aspiration |
Turbocharged |
Bore×Stroke |
108x 130 mm |
Displacement |
4.76L |
Compression ratio |
17.5:1 |
Prime Power/Speed |
77KW/1500rpm |
Speed Governor |
electrical |
Cooling System |
By heat exchanger |
Fuel Consumption at 100% Load |
222 g/kw.h |
Starter Motor |
DC24V |
Alternator Specification
Marathon Alternator (Standard)
Technical Data
Alternator Model |
UCM274D |
Prime power |
80KW |
Frequency/speed |
50HZ/1500rpm |
Exciter type |
Brushless, Self-excited |
Power factor |
0.8 |
Insulation Grade |
H |
Protection Grade |
IP23 |
Phase / wire |
3 phase 4 wires |
Contral System
Model:KCMII G
*engine start/stop
*engine coolant temperature
*oil pressure and temperature
*tachometer
*coolant temperature alarm
*oil pressure alarm
*battery charging indicator
*generator to be protection from overload and overheat
Certificate & Document
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
