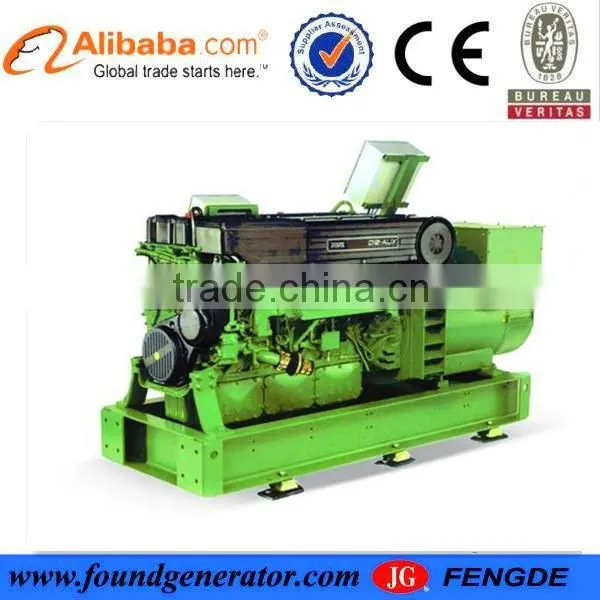

CCS,BV approved 80KW Volvo marine generator price hot sale

Specifications

1,CCS&BV certificate
2,one year warranty and global service
3,ISO9001:2008 certificate

we are the chinese top supplier and top VIP supplier on Alibaba



Authorized by famous certification authority-BV ( Bureau Veritas ) !!

Criterion

•  GB/T13032-1991
•  ISO9001:2008 Quality Control System
•  CCS approved

Engine Specification

VOLVO Diesel Engine

Technical Data



Engine Model	D5ATA/92
Number of Cylinders	4 cylinders in L
Cycle	4 stroke
Aspiration	Turbocharged
Bore×Stroke	108x 130 mm
Displacement	4.76L
Compression ratio	17.5:1
Prime Power/Speed	92KW/1500rpm
Speed Governor	electrical
Cooling System	By heat exchanger
Fuel Consumption at 100% Load	214 g/kw.h
Starter Motor	DC24V





Alternator specification



Marathon Alternator (Standard)

Technical Data

Alternator Model	UCM274D
Prime power	80KW
Frequency/speed	50HZ/1500rpm
Exciter type	Brushless, Self-excited
Power factor	0.8
Insulation Grade	H
Protection Grade	IP23
Phase / wire	3 phase 4 wires





 Control system



Model:KCMIIG

*engine start/stop

*engine coolant temperature

*oil pressure and temperature

*tachometer

*coolant temperature alarm

*oil pressure alarm

*battery charging indicator

*generator to be protection from overload and overheat
