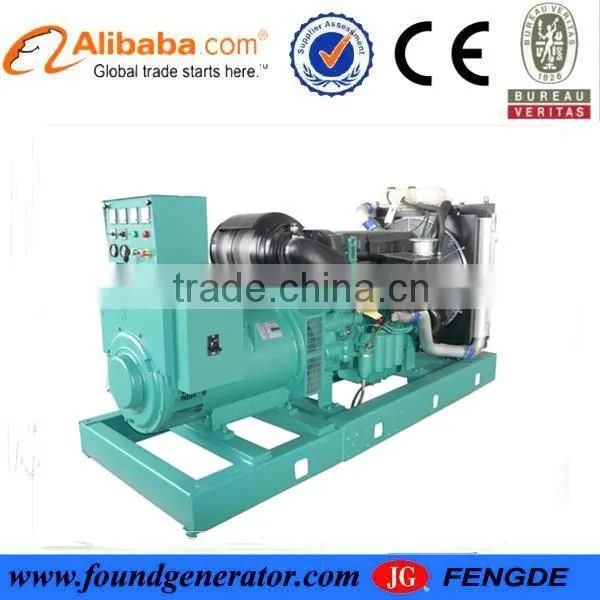

Help Center300KW Volvo Land Diesel Generator Price
Related Products
-
CE Approved 330KW Volvo Land Diesel Generator PriceNegotiableMOQ: 1 Set -
China Top Suppiler Famous Brand 400KW Volvo Land Diesel GeneratorNegotiableMOQ: 1 Set
-
Volvo CE Approved 80KW Electric Power Generator PriceUS$ 27,500 - 27,500MOQ: 1 Set
-
Volvo CE Approved 120KW Electric Power Generator PriceUS$ 27,500 - 27,500MOQ: 1 Set
-
Volvo CE Approved 150KW Electric Power Generator PriceUS$ 27,500 - 27,500MOQ: 1 Set
Specifications
1,factory direct sale2,one year warranty
3,global service
4,CE ISO certificate
We are specific in this field for more than 20 years and the top vvip supplier on Alibaba!
We have our own factory and many senior engineers.
Our products can meet the needs of different voltage and frequency.
If you have any demands not hesitate to contact us!
Criterion
ISO8528, GB/T2820
EN12601:2001, EN60034-22:1997, EN60204-1:2006
ISO9001:2008 Quality Control System
ENGINE SPECIFICATION
Volvo Diesel Engine
Technical Data
Engine Model |
TAD1241GE |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd |
Bore×Stroke |
131x150mm |
Rated speed |
1500rpm |
Displacement |
12.13 L |
Compression ratio |
17.5:1 |
Prime Power |
323KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
198g/kw.h |
Starter Motor |
24V |
ALTERNATOR SPECIFICATION
Technical Data
Brand |
Stamford |
Alternator Model |
HCI444FS |
Capacity |
304KW |
Voltage |
220/380V |
Frequency & Speed |
50HZ/1500RPM |
Exciter type |
Brushless, Self-excited |
Power factor |
0.8 |
Voltage Adjust range |
≥5% |
Voltage Regulation NL-FL |
≤±0.5% |
Insulation Grade |
H |
Protection Grade |
IP23 |
CONTROL SYSTEM
Standard: HGM180HC Key Start
Providing the standard functions as follows:
(Also can be made according to the customers’ special requirements)
*Start/Stop controller
*Ampere meter
*Voltmeter and selector switch
*Frequency meter/ Water temperature gauge/ Oil pressure gauge/ Hour counter/ Battery voltage meter
*Emergency stop pushbutton
*Alarm System: Over speed,High Engine Temperature
Low Oil Pressure,Charge Fail
*Protection System:Over speed,High Engine Temperature,Low Oil Pressure,Emergency Stop. And the other protection function pre-setting
Certificate & Document
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
