The leading manufacturer for land and marine use generator.
CE, ISO9001:2008 approved

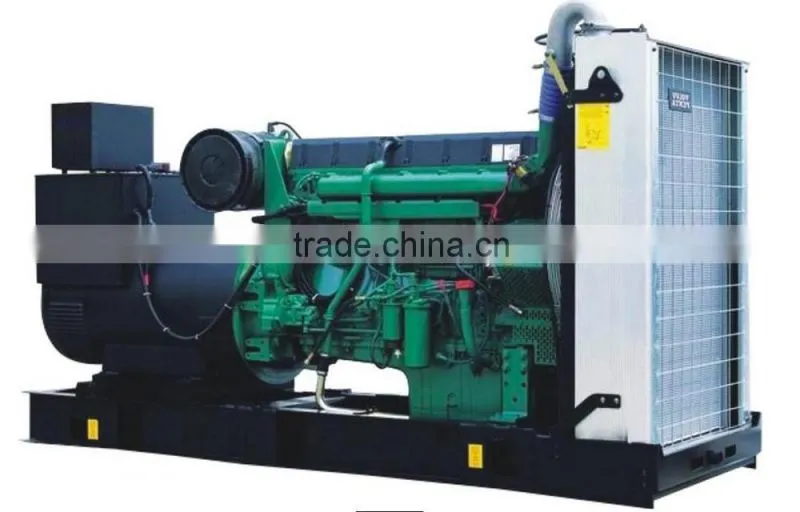

Volvo CE approved 80KW electric power generator price |
Genset general feature: |
1.Generator can be used as Main industrial generator
2. CE, ISO9001:2008 approved
3. Water Cooled by radiator
4. Adopt Volvp Engine
5.Marathon single-shaft alternator standard , Stamford/Sunvim/Siemens/Megaton alternator is optional
6.Parallel connection: Two and more normal industrial generating sets can transfer loading without stoping ,
and can realize parallel.
7.Standard SAE coupling the engine and alternator
8.With efficiency anti-vibration devices
9.Cold rolled steel one time molded base
10.High reliability , low use and maintenance cost
1.Main technical data of gensets |
1.1 |
Model |
JGV80GF |
1.2 |
Prime power |
80KW |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
1100kg |
1.6 |
Overall dimension |
1910*670*1450 mm (just for reference) |
2.Main technical data of engine |
|
Volvo engine, 4 stroke. DC start. Come with heater radiator and expansion water tank, open-cycle cooling. |
2.1 |
Brand |
Volvo |
2.2 |
Model |
TAD531GE |
2.3 |
Governor type |
Electronic |
2.4 |
Configuration |
4 cycle , 4 cylinders in line |
2.5 |
Cooling method |
water cooled by radiator |
2.6 |
Bore/Stroke |
108*130 mm |
2.7 |
Aspiration |
Turbocharged / After cooled |
2.8 |
Starting method |
electronic |
2.9 |
Fuel consumption |
218g/kw.h |
3. Main technical data of alternator |
|
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. |
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MP-80-4 |
3.3 |
Prime power |
80KW |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
3.10 |
Protection grade |
IP23 |
68KW-500KW (85KVA-625KVA) Series |

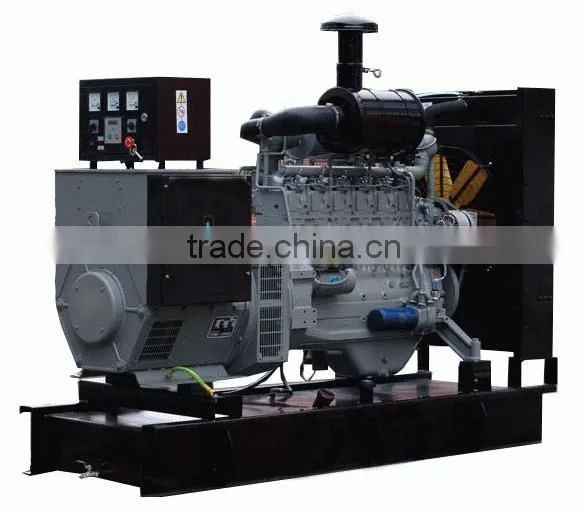

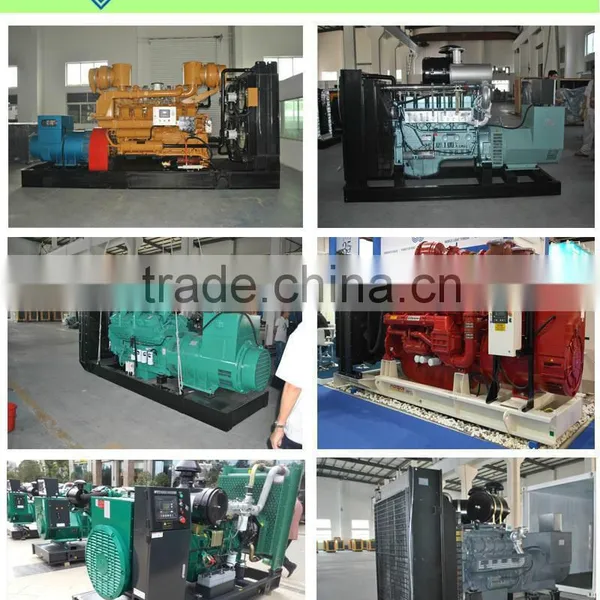

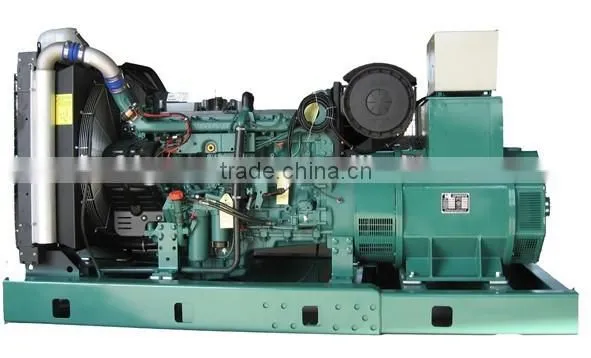

Photos of open type |
Photos of silent type |
Photos of container type |
Photos of trailer type |
Photos of truck power station |
