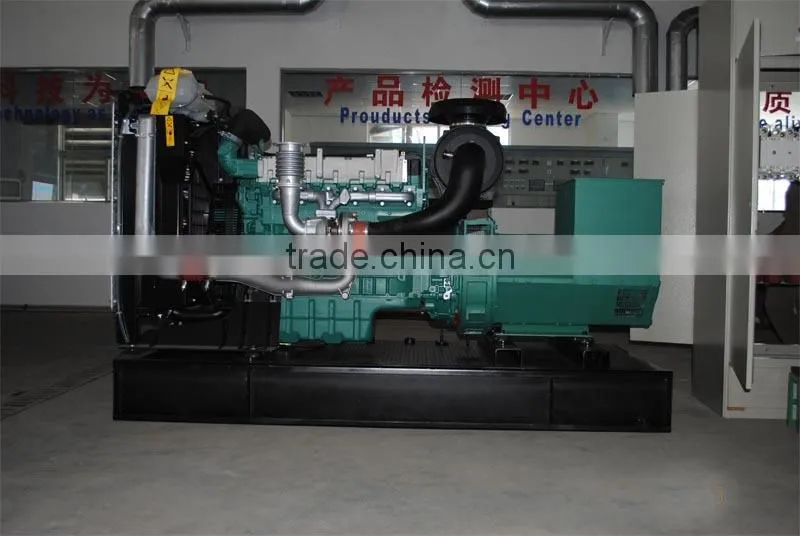

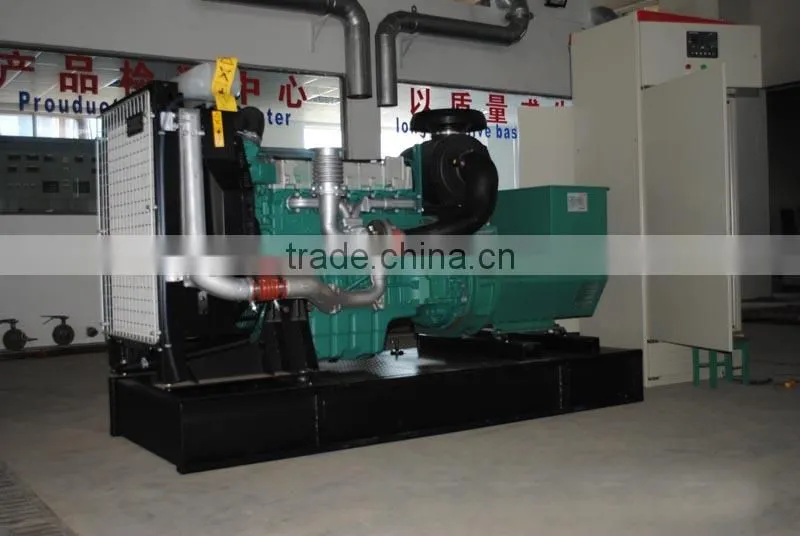

Help CenterFactory Direct Sale 450kva Volvo Diesel Generator
Related Products
-
Global Support Volvo Diesel EngineUS$ 6,500 - 20,000MOQ: 1 Set -
CE Approved 250kva Volvo Penta GensetUS$ 3,500 - 7,500MOQ: 1 Set
-
Top Volvo Agent Sale Industrial Use Volvo EngineUS$ 8,000 - 8,000MOQ: 1 Set
-
360KW Volvo Diesel Generator With CE ApprovedUS$ 9,999 - 999,999MOQ: 1 Set
-
300KW Volvo Industrial Diesel Generator With Best PriceUS$ 9,999 - 999,999MOQ: 1 Set
Specifications
1.450kva volvo diesel generator2.ISO,CE certificate
3.one year warranty
4.volvo technology
450kva volvo diesel generator specifications:
1) Coupled withVolvo diesel engine and Stamford Or Marathon alternator
2) 24V DC start motor and storage battery
3) Brushless, Self-excited, IP23, insulation class H alternator
4) 40°C radiator as standard, 50°C is optional
5) Key start panel control system as standard, digital auto-start panel is optional
6) Optional open type or silent type
All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas )!
Diesel Engine Technical Data
VOLVO Diesel Engine Technical Data
Engine Model |
TAD1345GE |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd |
Bore×Stroke |
144x165mm |
Rated speed |
1500rpm |
Displacement |
16.12 L |
Compression ratio |
17.5:1 |
Prime Power |
393KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
200g/kw.h |
Starter Motor |
24V, |
Marathon Alternator Technical Data
Alternator model |
MP-360-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
360 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP22 |
Warranty
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
Certificate & Document
1) Alternator
operation and maintenance manual 1PC
2)Engine
operation and maintenance manual 1PC
3)Generator
Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
