Famous Manufacturer 50kw Silent Diesel Generator

Famous Manufacturer 50kw Silent Diesel Generator photo-1
US$ 5,500 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JG
Model Number:
CCFJ50J
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name JG
Model Number CCFJ50J
Output Type AC Three Phase
Speed 1500rpm/1800rpm
Frequency 50hz/60hz
Rated Power 50kw
Rated Voltage 440v/440v
Rated Current 90A

Specifications

1.50kw silent diesel generator
2.global service for 12 month
3.ISO,CE certificate
4.75dB at the distance of 7 meters

1. 50kw silent diesel generator set general feature:

 1) Output range: 50kw(63kVA)

 2) Engine model: Cummins

 3) Alternator: Stamford

 4) Water-cooled
 5) 8hrs operation base tank
 6) Key start / auto start
 7) silent generator is optional
 8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
 9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%



We are the top VIP supplier on Alibaba ,



authorized by famous certification authority-BV ( Bureau Veritas ).



2.Cummins Engine parameter:

Engine Model

4BTA3.9-G2

Configuration

4 cycle , 4 cylinders in line

Aspiration

Turbocharged after water-cooled

Bore×Stroke

102 x120 mm

Rated speed

1500rpm

Displacement

3.9 L

Compression Ratio

16.5:1

Prime Power

50KW

Standby Power

55KW

Speed Governor

electrical

Cooling System

Water-cooled 40°C Radiator AStandard, 50°C IOptional.

Speed Stability (%)

5%

Fuel Consumption at 100% Load

216g/kw.h

Starter Motor

DC24V,



 Stamford Alternator technical data:



Alternator model



UCI224E

Alternator manufacturer

Stamford

Exciter type

Single bearing, Brushless, Self-excited

Rated output prime power

50 kW

Rated speed

1500 RPM

Rated frequency

50 Hz

Phase

3

Rated voltage

400 V(Available with customer requirements)

Power factor

0.8

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Insulation grade

H

Protection grade

IP23



3.Warranty:

 Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.

4.Certificate & Document:

1) Alternator  operation and maintenance manual                     1PC

2)Engine  operation and maintenance manual                     1PC

3)Generator  Overall drawings of the set                               1PC

4)Electrinic system drawing                                   1PC

5)Bench test                                              1PC

6)Packing list                                             1PC

5.picture :

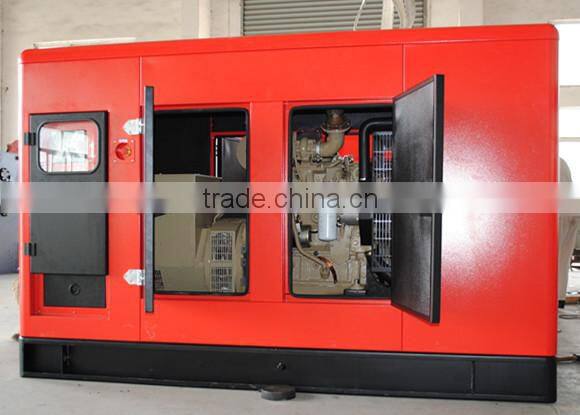

 Famous manufacturer 50kw silent diesel generator











Famous manufacturer 50kw silent diesel generator



 Famous manufacturer 50kw silent diesel generatorFamous manufacturer 50kw silent diesel generatorFamous manufacturer 50kw silent diesel generatorFamous manufacturer 50kw silent diesel generator
