Specifications
diesel generator silent type1.cummins model :6CTA8.3-G2
2.One year warranty
3.CE certificate
4.less than 80db @7 meters
Taizhou Fengde M&E manufacturing Co.,Ltd
Cummins diesel generator expert ,supply the best power solution

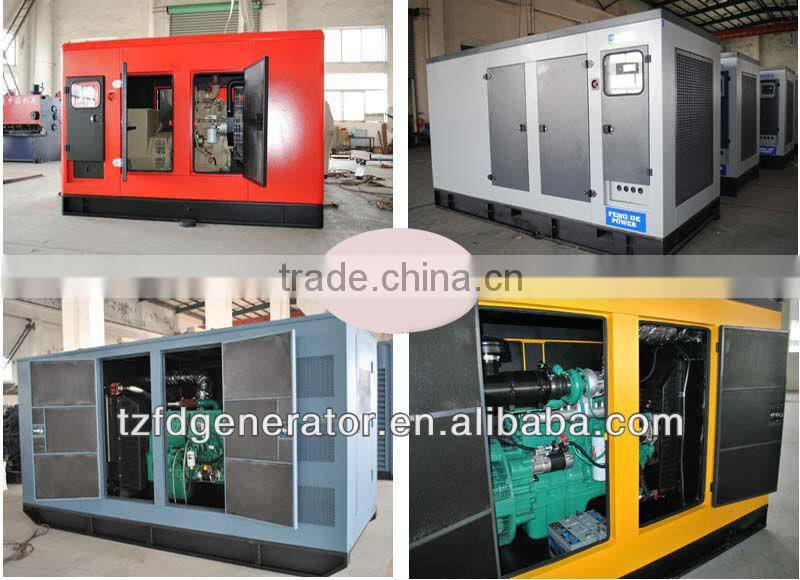

150KW diesel generator silent type
1.diesel engine model :6CTA8.3-G2
2.Marathon ,stamford ,Leroysomer alternator is optional
3.ATS/AMF is optional
Cummins diesel generator silent type specification :
Generator Model |
JGC150GF |
Prime power |
150KW |
Standby power |
163KW |
Voltage |
380V/220V |
Frequency |
50HZ/1500 rpm |
Power factor |
0.8(lag) |
Governor type |
Electric |
Cummins diesel engine specification :
Engine Model |
6CTA8.3-G2 |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbocharged after water-cooled |
Bore×Stroke |
114 x135 mm |
Rated speed |
1500rpm |
Displacement |
8.3L |
Compression Ratio |
16.5:1 |
Prime Power |
163KW |
Speed Governor |
electrical |
Cooling System |
Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
210g/kw.h |
Starter Motor |
DC24V, |
Main technical parameter of alternator
Brand |
MARATHON |
Alternator Model |
MP-160-4 |
Capacity |
160KW |
Voltage |
220/380V |
Frequency & Speed |
50HZ/1500RPM |
Exciter type |
Brushless, Self-excited |
Power factor |
0.8 |
Voltage Adjust range |
≥5% |
Voltage Regulation NL-FL |
≤±0.5% |
Insulation Grade |
H |
Protection Grade |
IP23 |
diesel generator silent type optional
