Specifications

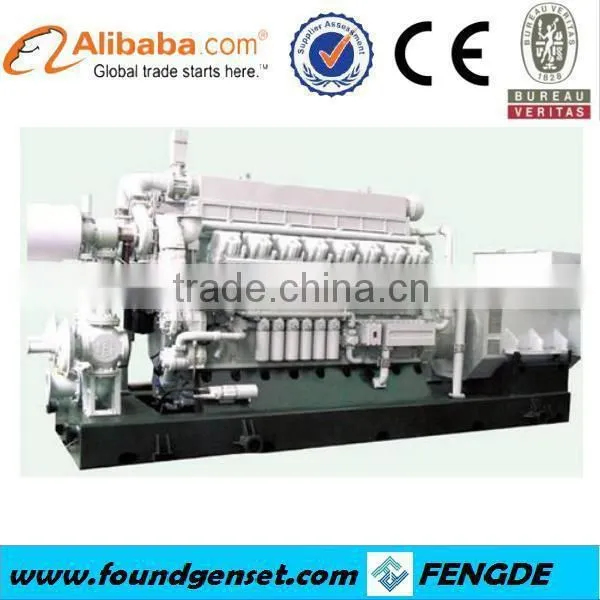

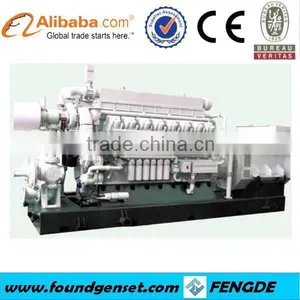

16 cylinders V type TBG series 1500KW gas operated electric generator1 TBG series engine
2 Simens alternator
3 CE,ISO
| TBG Series of natural gas generator 160KW-1500KW(200KVA-1875KVA) |

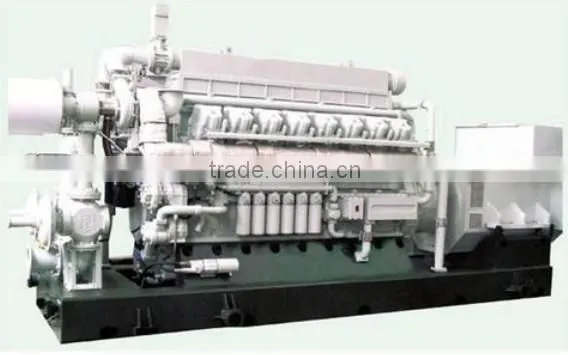

16 cylinders V type TBG series 1500KW gas operated electric generator
|
General feature for TBG series of natural gas generator
|
• Power range 160KW-1500KW,50HZ/1500rpm
• Main fuel for natural gas generator are natual gas, oil associated gas, liquefied
petroleum gas(LPG),etc. It's widely used in the region rich of oilfield and gas
resources.
• Powered by high speed high power gas engine TBG series, coupled with Simens
brushless self-excited alternator .
• Relying on the advanced international technology of Deutz diesel engine, gas engine
TBG series are developed our with its reliable performance, environmental protection
and energy saving, easy to maintenance, which has reached the international advanced level
| General feature for generator |
1) Output range: 160kW (200kVA) up to 1500kW (1875kVA),
2) Engine model: TBG236V8, TBG236V12, TBG604C, TBG620V8, TBG620V12, TBG620V16
3) Alternator: Simens
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) silent generator is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%
| 1.Main technical data of gensets |
1.1 |
Model |
JG1500GFT |
1.2 |
Prime power |
1500KW/1875KVA |
1.3 |
Prime voltage |
400/230V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
13000kg |
1.6 |
Overall dimension |
5100×1700×2480mm (just for reference) |
| 2.Main technical data of engine |
TBG engine, 4 stroke. DC start. | ||
2.1 |
Brand |
TBG |
2.2 |
Model |
TBG620V16 |
2.3 |
Prime power |
1500KW/1875KVA |
2.4 |
Governor type |
Electronic |
2.5 |
Configuration |
4 cycle , 16 cylinder in V type |
2.6 |
Cooled System |
Water-cooled |
2.7 |
Starting method |
Electric |
2.8 |
Fuel consumption |
9.8L/H |
| 3. Main technical data of alternator |
Alternator is selected the new type brushless alternator designed by Siemens Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
SIEMENS |
3.2 |
Model |
1FC6 564-4LA4 |
3.3 |
Prime power |
1500KW/1875KVA |
3.4 |
Configuration |
Brushless , self-exciting,AVR |
3.5 |
Prime voltage |
400V/230V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
| 4. Control Panel |
Providing the standard functions as follows:
(Also can be made according to the customers’ special requirements)
*Start/Stop controller
*Ampere meter
*Voltmeter and selector switch
*Frequency meter/ Water temperature gauge/ Oil pressure gauge/ Hour counter/ Battery voltage meter
*Emergency stop pushbutton
*Alarm System: Over speed,High Engine Temperature
Low Oil Pressure,Charge Fail
*Protection System:Over speed,High Engine Temperature,Low Oil Pressure,Emergency Stop. And the other protection
function pre-setting
| 5. Accessories |
Belows,flangs,battery and connection lines,muffler and operation manucal for genset/engine/alternator etc
| Open type |
| Silent type |
| Controller |
| Packing |
