Home > Products > Deutz land genset > 450kw Diesel Generator powered by Deutz engine with CE & ISO

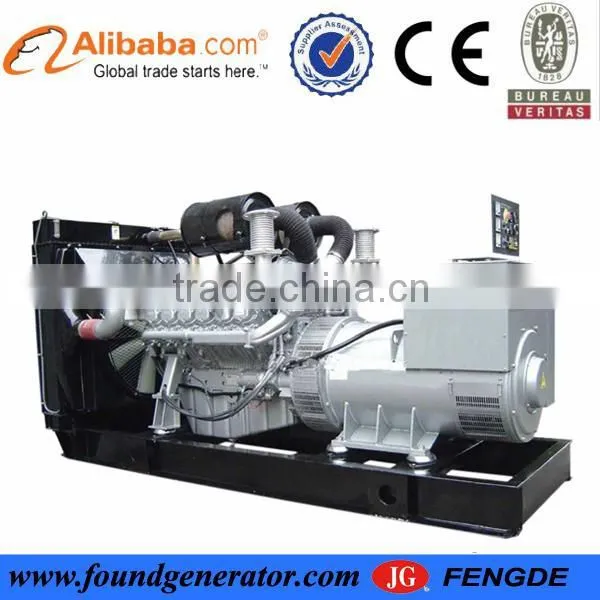

450kw Diesel Generator powered by Deutz engine with CE & ISO
- 150 Set / Sets per Month
- SHANGHAI
- T/T D/P D/A
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | JG | Model Number: | JG450GF |
Output Type: | AC Three Phase | Speed: | 1500RPM | Frequency: | 50HZ |
Rated Power: | 450KW | Rated Voltage: | 380/220V | Rated Current: | 810A |
Product Description
Specifications
450kw Diesel Generator1.CE certificate
2.Low consumption
3.Global service for 12 months free
4.with competitive price
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas )
450kw Diesel Generator
1.CE certificate
2.Low consumption
3.Global service for 12 months free
4.with competitive price
Genset Technical Data | |
Prime power | 450kW |
Standby power | 495 kW |
Rated speed | 1500 RPM |
Output frequency | 50 Hz |
Phase | 3 |
Rated voltage | 400 V |
Noise dB(A) @7m | 100 |
Engine model | BF8M1015CP-LA G5 |
Alternator model | MP-480-4A/S |
Prime Power : Prime power is available for an unlimited number of annual hours in variable load application, in accordance
with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
tandby Power Rating : The standby power rating is applicable for supplying emergency power for the duration of a utility
power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Deutz Diesel Engine Technical Data
Engine Model | BF8M1015CP-LA G5 |
Configuration | 4 cycle , 8 cylinders in "V" |
Aspiration | Turbocharged inter-cooled |
Bore×Stroke | 132x145 mm |
Rated speed | 1500rpm |
Displacement | 15.874 L |
Prime Power | 448KW |
Speed Governor | Electronic |
Cooling System | water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | ≤208g/kw.h |
Starter Motor | DC24V, |
Marathon Alternator Technical Data
Alternator model | MP-480-4A/S |
Alternator manufacturer | Marathon |
Exciter type | Single bearing, Brushless, Self-excited |
Rated output prime power | 450 kW |
Rated speed | 1500 RPM |
Rated frequency | 50 Hz |
Phase | 3 |
Rated voltage | 400 V(Available with customer requirements) |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation grade | H |
Protection grade | IP23 |
Alternator option: Sunvim,Stamford, Lrroy somer.
Alternator Brand | Alternator Model | Phase | Rated Speed | Rated Prime Power |
Sunvim | SV354D | 3 | 1500RPM | 450 |
Stamford | HCI544D | 3 | 1500RPM | 450 |
Leroy somer | LSA 47.2 M8 | 3 | 1500RPM | 450 |
Control System HGM6110
All FENGDE gensets have a control cubicle (the smart gen HGM6110 as standard) mounted on a isolated support, which has
the following features.
n Electronic digital control module with monitoring/control facility and warning indicators
n Automatic shutdown protection
n Emergency stop button (lock-down type)
n AC output circuit breaker with over-current protection
n DC circuit control switch
The control module display
n Generator voltage
n Generator voltage
n Output frequency
n Engine speed
n Battery voltage
n Engine run-time (Hours)
n Note:
n 1. The engine coolant temperature displayed by water temperature gauge
n 2. The engine oil pressure displayed by oil pressure meter
n 3. Generator current displayed by current meter, to change switch for each phase displayed separately
The control module display for failure information
n Overspeed / underspeed
n Emergency stop
n Low oil pressure
n High water temperature
n Failure to start
n Battery charger failure
Automatic shutdown
n Low engine oil pressure
n High engine water temperature
n Overspeed/underspeed
n Failure to start after three attempts
The control modules option
