Specifications
1.european brand diesel generator2.ISO,CE certificate
3.global service for 12 month
4.deutz technology

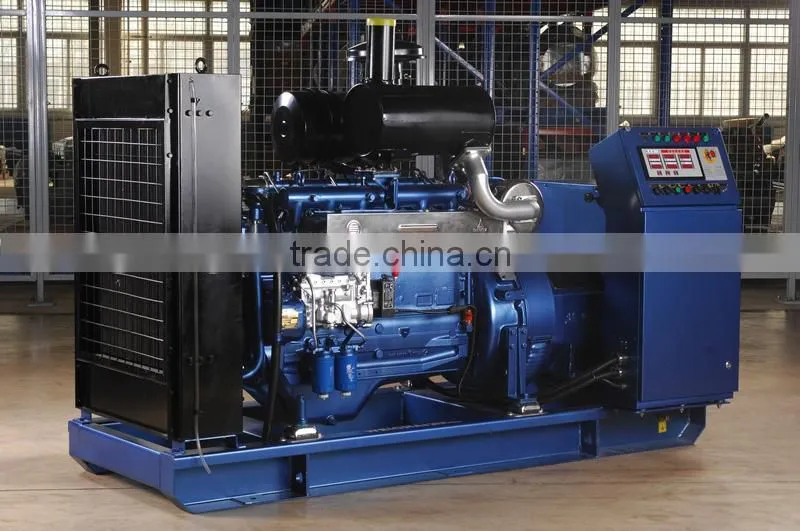

CE approved manufacturer 100kva european brand diesel generator powered by deutz engine
1.deutz generator general feature:
1. Deutz advanced technology, power range of 231-490kw;
2. The structure of inner oil duct and inner water channel is contributing to is contributing to obviously-reduced external pipelines and lowered fault possibilities, the service life is averaged at 15,000h;
3. The structure of a head for a cylinder, strong currency of parts, convenient maintenance;
4. Patented stagger crankshaft and parts optimized in noise including crankcase, accessory bracket will provide the engine with small vibration and low noise (<98dB);
5. It can be normally started at a temperature of 35°C below zero with an inlet warming device added.
2.Technical Data:
Genset Technical Data | |
Prime power |
80kW / 100kVA |
Standby power |
88kW / 110kVA |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Engine model |
TD226B-6D |
Alternator model |
GM-80-4 |
Open type Dimension
Deutz Diesel Engine
Technical Data
Engine Model |
TD226B-6D |
Configuration |
4 cycle , 6 cylinders in line |
Aspiration |
Turbochargerd |
Bore×Stroke |
105x120 mm |
Rated speed |
1500rpm |
Displacement |
6.0 L |
Prime Power |
90KW |
Speed Governor |
Mechanical/Electronic |
Cooling System |
Closed water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
≤208g/kw.h |
Starter Motor |
DC24V |
Marathon Alternator
Technical Data
Alternator model |
GM-80-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
80 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
3.Warranty:
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
