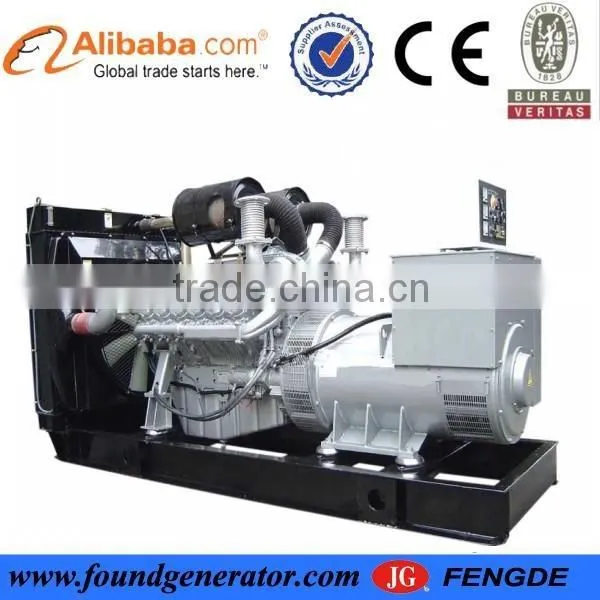

400kw electric generator by deutz engine
1) Coupled with Deutz diesel engine and Stamford Or Marathon alternator
2) 24V DC start motor and storage battery
3) Brushless, Self-excited, IP23, insulation class H alternator
4) digital auto-start panel is optional
5) Optional open type or silent type
6)All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail
Electrical generator Technical Data
Prime power |
400kW |
Standby power |
440 kW |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Noise dB(A) @7m |
100 |
Engine model |
BF8M1015CP-G2 |
Alternator model |
MP-400-4A/S |
Deutz Diesel Engine Technical Data
Engine Model |
BF8M1015CP-G2 |
Configuration |
4 cycle , 8 cylinders in "V" |
Aspiration |
Turbocharged inter-cooled |
Bore×Stroke |
132x145 mm |
Rated speed |
1500rpm |
Displacement |
15.874 L |
Prime Power |
448KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
≤208g/kw.h |
Starter Motor |
DC24V, |
Marathon Alternator Technical Data
Alternator model |
MP-400-4A/S |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
400 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
Alternator option: Sunvim,Stamford, Leroy somer.
Alternator Brand |
Alternator Model |
Phase |
Rated Speed |
Rated Prime Power |
Sunvim |
SV354D |
3 |
1500RPM |
400 |
Stamford |
HCI544C |
3 |
1500RPM |
400 |
Leroy somer |
LSA 47.2 M7 |
3 |
1500RPM |
400 |
