Specifications
Deutz Diesel Generator 400kw1.One year warranty
2.CE,ISO9001 certificate
3.maintenance-free battery

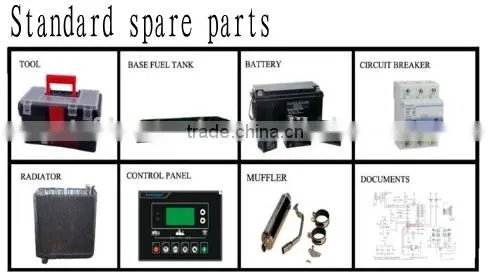

4.spare parts available
400kw diesel generator general feature:
1.Genuine Germany deutz diesel engine
2.Radiator 40°C max, fans are driven by belt, with safety guard
3.Genuine Leroy Somer, Stamford, Marathon, or ENGGA alternator
4.Choice of manual/auto and AMF control panels and protection systems
5.Digital auto-start panel
6.Anti Vibration Suspension Absorber
7.Dry type air filter, fuel filter, oil filter
8.8-hour operation base tank
9.Mould case circuit breaker
10. 24V DC start motor and storage battery
11.24V charge alternator
12.24V batteries, rack and cable
13.Ripple flex exhaust pipe, exhaust siphon, flange, and muffler
14.Comply with ISO and CE standards.
15.All generator sets are gone through rigorous testing before being released to the market place,
including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop,
high water temperature, low oil pressure, battery charging fail, emergency stop)
Main parameter of diesel generator:
Genset Technical Data | |
Prime power |
400kW / 500kVA |
Standby power |
440kW / 550kVA |
Rated speed |
1500 RPM |
Output frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V |
Engine model |
BF8M1015CP-G2 |
Alternator model |
MP-400-4A/S |
Main parameter of deutz engine:
Engine Model |
BF8M1015CP-G2 |
Configuration |
4 cycle , 8 cylinders in "V" |
Aspiration |
Turbocharged inter-cooled |
Bore×Stroke |
132x145 mm |
Rated speed |
1500rpm |
Displacement |
15.874 L |
Prime Power |
448KW |
Speed Governor |
Electronic |
Cooling System |
water-cooled |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
≤208g/kw.h |
Starter Motor |
DC24V |
Main parameter of alternator:
Alternator model |
MP-400-4 |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
400 kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |

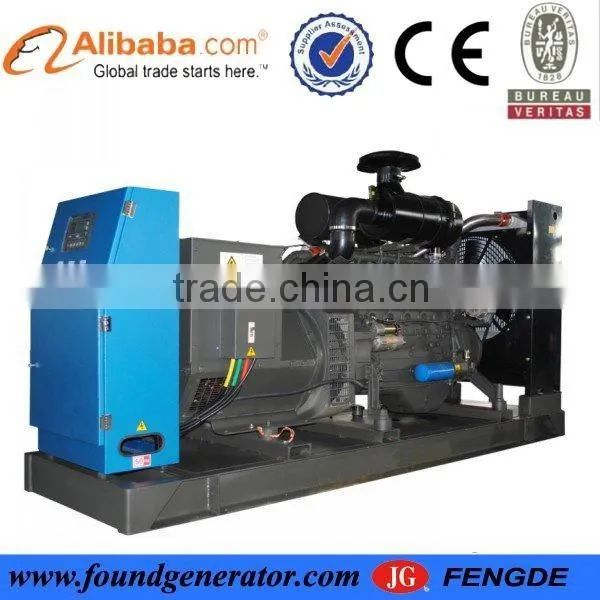

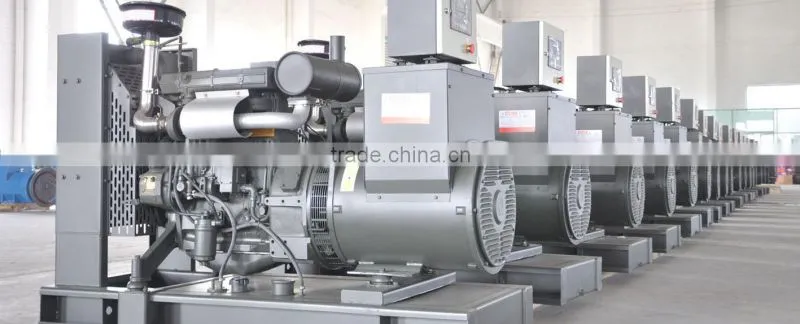

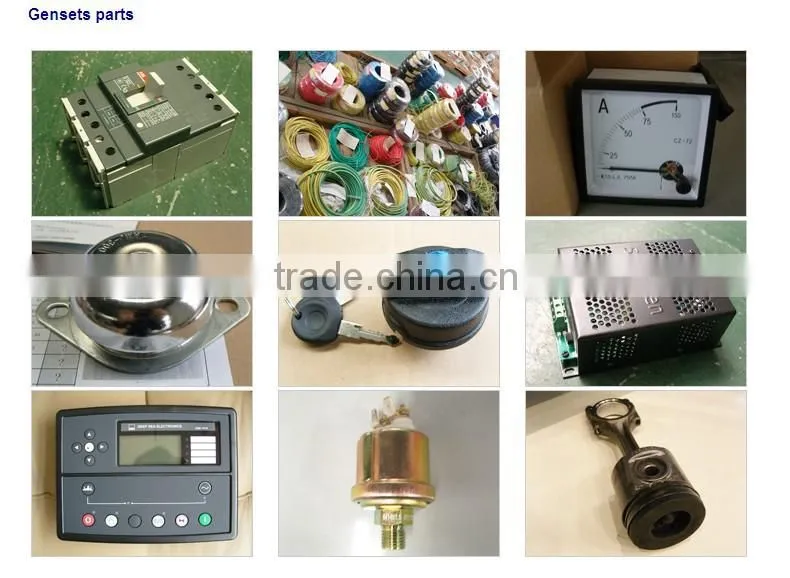

Picture of diesel generator:
