Specifications
90KW Shangchai marine generator with chinese generator supplier1/one year or 1000hrs warranty
2/Shangchai engine,industria
We are the gold supplier in Alibaba!
The leading manufacture for land and marine use generator.
CE, CCS, BV, ISO9001:2008 approved
Top sale for boat--90KW Shangchai marine generator with chinese generator supplier
|
Genset general feature:
|
1.Generator can be used as Main marine generator
2.CCS,BV, CE, ISO9001:2008 approved
3. Sea water Cooled by heat exchanger
4. Adopt Shangchai Engine
5.Marathon single-shaft alternator standard , Stamford/Sunvim/Siemens/Megaton alternator is optional
6.Parallel connection: Two and more normal industrial generating sets can transfer loading without stoping ,
and can realize parallel.
7.Standard SAE coupling the engine and alternator
8.With efficiency anti-vibration devices
9.Cold rolled steel one time molded base
10.High reliability , low use and maintenance cost
|
1.Main technical data of gensets
| ||
1.1 |
Model |
CCFJ90J |
1.2 |
Prime power |
90KW |
1.3 |
Prime voltage |
230/400V |
1.4 |
Speed |
1500 rpm |
1.5 |
Weight |
2300 kg |
1.6 |
Overall dimension |
2350*1100*1260 mm (just for reference) |
2.Main technical data of engine | ||
shangchai engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling. | ||
2.1 |
Brand |
Shangchai |
2.2 |
Model |
6135ACaf |
2.3 |
Governor type |
Electronic |
2.4 |
Configuration |
4 cycle , 6 cylinder in line |
2.5 |
Cooling method |
Sea-water cooled by heat exchanger |
2.6 |
Bore/Stroke |
135*150 mm |
2.7 |
Aspiration |
Turbocharged / After cooled |
2.8 |
Starting method |
electronic |
2.9 |
Fuel consumption |
205g/kw.h |
3. Main technical data of alternator | ||
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 |
Brand |
MARATHON |
3.2 |
Model |
MP-H-90-4 |
3.3 |
Prime power |
90KW |
3.4 |
Configuration |
Brushless , self-exciting |
3.5 |
Prime voltage |
230V/400V |
3.6 |
Frequency |
50 HZ |
3.7 |
Power factor |
0.8(lagging) |
3.8 |
Phase/wire |
3 phase 4 wires |
3.9 |
Isolation |
H |
3.10 |
Protection grade |
IP23 |
|

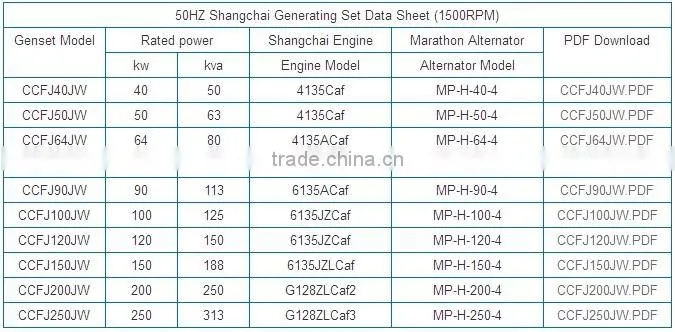

40KW-250KW (50KVA-312.5KVA) Series
|
|
Photos of open type
|
|
Photos of silent type
|
|
Photos of container type
|
|
Photos of trailer type
|
Photos of truck power station |
