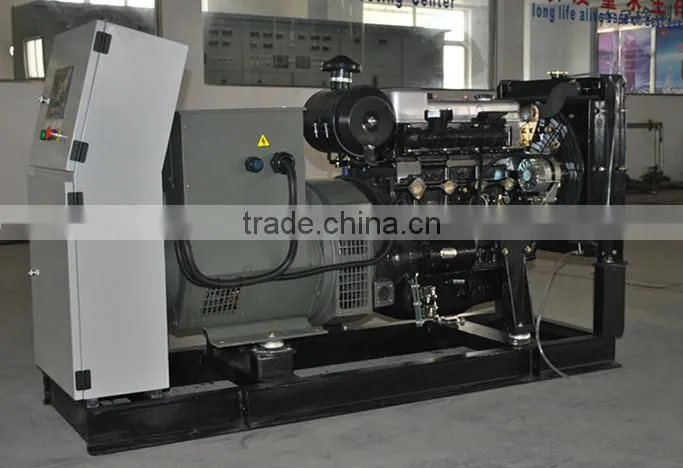

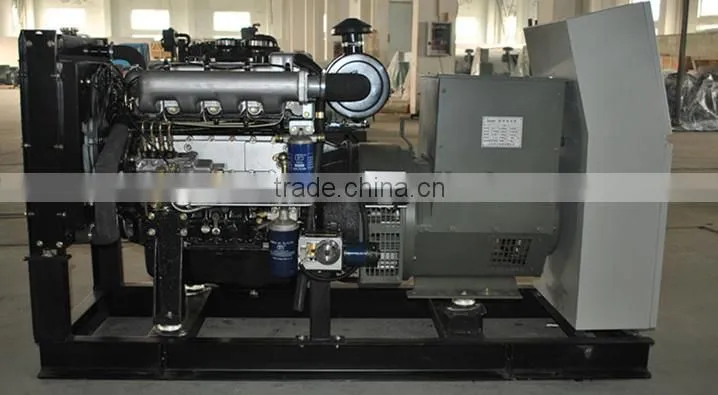

Help CenterCCS Approved Marine Diesel Generator,chinese Marine Diesel Engine
Related Products
-
ZC&CCS Approved 30Kw-300Kw Chinese Marine Electric Generators Powered by Yuchai Marine EnginesNegotiableMOQ: 1 Set -
ZC&CCS Approved 30Kw-300Kw Marine Electric Generator Diesel Powered by Yuchai Marine EnginesNegotiableMOQ: 1 Set
-
ZC&CCS Approved 30Kw-300Kw Yuchai Marine Electrical Diesel Generator Set for BoatsNegotiableMOQ: 1 Set
-
ZC&CCS Approved 30Kw-300Kw Yuchai Marine China Electricity Generator for BoatsNegotiableMOQ: 1 Set
-
ZC&CCS Approved 30Kw-300Kw Yuchai Marine Electric Generators Made in China for BoatsNegotiableMOQ: 1 Set
Specifications
1.chinese marine diesel engine2.ISO,CE,CCS certificate
3.global service for 12 month
4.EIAPP(Nox) certificate
1) Coupled with Changchai diesel engine and Stamford Or Marathon alternator
2) 24V DC start motor and storage battery
3) Brushless, Self-excited, IP23, insulation class H alternator

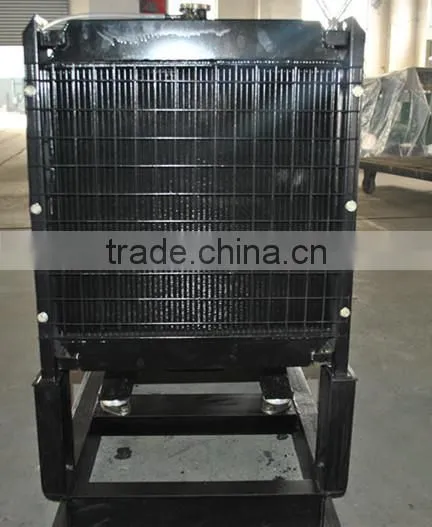

4) 40°C radiator as standard, 50°C is optional
5) Key start panel control system as standard, digital auto-start panel is optional
6) Optional open type or silent type
All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas ).
Engine Model |
12V135BZLD2 |
Number of Cylinders |
12 |
Cylinder arrangement |
In V type |
Cycle |
4 Cycle |
Aspiration |
Turbocharged after water-cooled |
Bore×Stroke |
135 x155 mm |
Prime Power/Speed |
459KW/1500rpm |
Speed Governor |
electrical |
Cooling System |
Water-cooled , 40°C Radiator As Standard, 50°C Is Optional. |
Speed Stability (%) |
≤5% |
Fuel Consumption at 100% Load |
200 g/kw.h |
Starter Motor |
DC24V, |
Alternator model |
MP-400-4A/S |
Alternator manufacturer |
Marathon |
Exciter type |
Single bearing, Brushless, Self-excited |
Rated output prime power |
400kW |
Rated speed |
1500 RPM |
Rated frequency |
50 Hz |
Phase |
3 |
Rated voltage |
400 V(Available with customer requirements) |
Power factor |
0.8 |
Voltage adjust range |
≥5% |
Voltage regulation NL-FL |
≤±1% |
Insulation grade |
H |
Protection grade |
IP23 |
packed in plywood case
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
