Specifications
HUAFENG marine generating set 30KWCCS approved
1 year warranty
Powered by HUAFENG engine and LANDIAN alternator

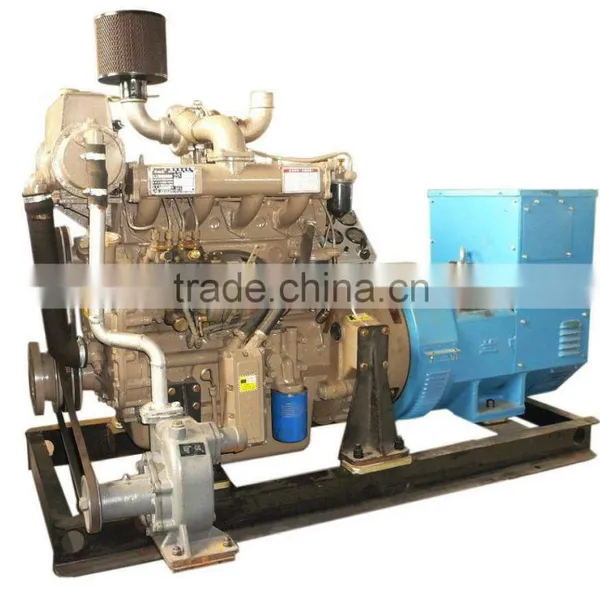

HUAFENG marine generating set
Engine main parameters
Model R4105
Type 4-storke
No. of cylinder 4
Bore 105mm
Stroke 120 mm
Rated output 40kW
Rated speed 1500 r/min
Starting measure DC 24V electric starter
Speed control machine governor
Direction of rotation anticlockwisesee from flywheel
cooling type Sea water and fresh watercooling type
Fuel oil consumption(g/kWh) ≤210g / kWh
Fuel oil winter -10 summer 0
Lub.oil 15W40-CD
Manufactory HUAFENG POWER
Technical Data of Main Alternator
Model TFX-H-30
Rated output 30kw
Rated voltage 3P 400V
Rated speed 1500r/min
Excitation type Brushless self-excting
Insulation System class H
Protection Class IP23
The set can be started easily when the temperature above 5
Range of voltage setting : 95%~105% Ue
voltage regulation
Steady-state voltage regulation ≤±2.5%
Transient voltage regulation +20%-15%
Voltage settling time 1.5 s
Voltage stability bandwidth ≤0.5%
speed regulation
Steady-state speed(frequency) regulation ≤5%
Transient speed regulation ±10%
Frequency settling time 5 s
Voltage stability bandwidth ≤0.5 %
The set can be continuously operated at 110% rated power for one hour per 12 hours
