Famous Manufacturer 10% Discount 60kva Silent Genset

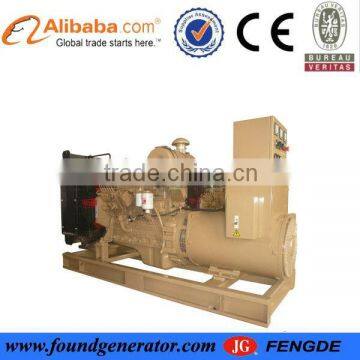

Famous Manufacturer 10% Discount 60kva Silent Genset photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JG
Model Number:
JGC50GF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name JG
Model Number JGC50GF
Output Type AC Three Phase
Speed 1500rpm
Frequency 50Hz
Rated Power 50Kw
Rated Voltage 380/220V
Rated Current 90A

We are the top VIP supplier on Alibaba ,



authorized by famous certification authority-BV ( Bureau Veritas )

60kva silent genset general feature:




  • 24V DC start motor and storage battery
  • Brushless, Self-excited, IP23, insulation class H alternator
  • 40°C radiator as standard, 50°C is optional
  • Key start panel control system as standard, digital auto-start panel is optional
  • Optional open type or silent type
  • All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)



The technical specification is contract’s accessories. The generating set that we provided according to it.





1.Main technical data of gensets

1.1

Model

JG50GF

1.2

Prime power

50KW/62.5KVA

1.3

Prime voltage

230/400V

1.4

Speed

1500 rpm

1.5

Weight

1100kg

1.6

Overall dimension

1850×850×1500mm (just for reference)

2.Main technical data of engine

2.2

Model

4BTA3.9-G2

2.3

Prime power

50KW/62.5KVA

2.4

Governor type

Electronic

2.5

Configuration

4 cycle , 4 cylinder in line

2.6

Air Intake System

Turbo/Aftercooled

2.7

Bore/Stroke

102×120 mm

2.8

Displacement

3.9 L

2.9

Starting method

Electric

2.10

Compression ratio

16.5:1

2.11

Fuel consumption

216g/kw.h

3. Main technical data of alternator

Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.

3.1

Brand

MARATHON

3.2

Model

MP-50-4

3.3

Prime power

50KW/62.5KVA

3.4

Configuration

Brushless , self-exciting

3.5

Prime voltage

230V/400V

3.6

Frequency

50 HZ

3.7

Power factor

0.8(lagging)

3.8

Phase/wire

3 phase 4 wires

3.9

Isolation

H











4. Protective function of operation



  Ÿ Low oil pressure alarm and shutdown



Ÿ High temperature alarm and shutdown



Ÿ Over speed alarm and shutdown







5. Generator standard configuration and accessory



Ÿ Engine



Ÿ Alternator



Ÿ AVMS suspension system



Ÿ Seat: Satisfactory shockproof system for installation of alternator, engine and cooling system



Ÿ Exhaust silencer for industry use, corrugated pipe and elbow required for installation



Ÿ Spare part list and user manual











6. Warranty



  Ÿ Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.



7.Certificate & Document



ŸAlternator



operation and maintenance manual                   1PC



Ÿ Engine



operation and maintenance manual                     1PC



Ÿ Generator



Overall drawings of the set                               1PC



Electrinic system drawing                                   1PC



Bench test                                             1PC



Packing list                                             1PC
