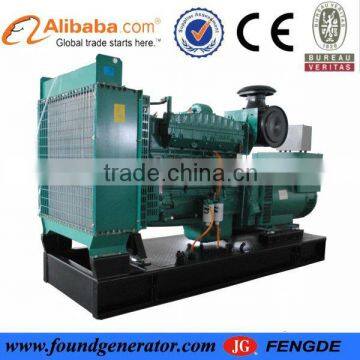

30% Discount With Factory Price for 250KW GT Power Diesel Generator

FOB Price

US$ 30,000 - 35,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

250KW gt power diesel generator
1.one year warranty
2.CE,ISO2008 certificate
3.AMF.ATS is optional
4.silent or trailer type

1.General feature of gt power diesel generator

1) Output range: 20kW (25kVA) up to 1000kW (1,250kVA),

2) Engine model:cummins engine

3) Alternator: Stamford, Marathon series

4) cummins engine :Water-cooled

5) 8hrs operation base tank

6) Key start / auto start

7) Sound-proof / weather-proof canopy is optional

8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output

9) Frequency: <3%

10) Frequency at stable state: <0.5%

11) Frequency deviation at instantaneous state: ≤+10%

12) Frequency return time: ≤3s

13) Voltage deviation at stable state: ≤±1%

14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation

1.Main technical data of gt power diesel generator
1.1	Model	JG250GF
1.2	Prime power	250KW/312.5KVA
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	2850kg
1.6	Overall dimension	3050×1050×2000mm (just for reference)
2.Main technical data of engine
Cummins engine, 4 stroke. DC start.
2.1	Brand	CUMMINS
2.2	Model	NTA855-G2
2.3	Prime power	283KW/353KVA
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Air Intake System	Tubocharged/ Aftercooled
2.7	Bore/Stroke	140×152 mm
2.8	Displacement	14 L
2.9	Starting method	Electric
2.10	Compression ratio	15:1
2.11	Fuel consumption	201g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-250-4
3.3	Prime power	250KW/312.5KVA
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
