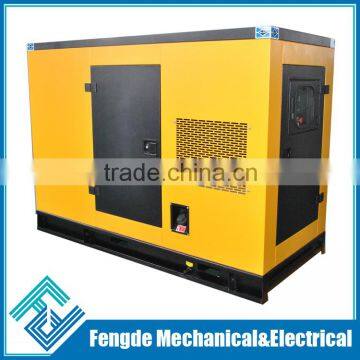

CE Approved Silent Type 20kw Diesel Generator Set

1.Main technical data of generator set

1.1

Model

JG20GF

1.2

Prime power

20KW/25KVA

1.3

Prime voltage

230/400V

1.4

Speed

1500 rpm

1.5

Weight

780kg

1.6

Overall dimension

1850×850×1300mm (just for reference)

2.Main technical data of engine

 With cummins engine,4 stroke. DC start.

2.2

Model

4B3.9-G2

2.3

Prime power

24KW/30KVA

2.4

Governor type

Electronic

2.5

Configuration

4 cycle , 4 cylinder in line

2.6

Air Intake System

Natural Aspirate

2.7

Bore/Stroke

102×120 mm

2.8

Displacement

3.9 L

2.9

Starting method

Electric

2.10

Compression ratio

16.5:1

2.11

Fuel consumption

228g/kw.h

3. Main technical data of alternator:

Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.

3.1

Brand

MARATHON

3.2

Model

GM-20-4

3.3

Prime power

20KW/25KVA

3.4

Configuration

Brushless , self-exciting

3.5

Prime voltage

230V/400V

3.6

Frequency

50 HZ

3.7

Power factor

0.8(lagging)

3.8

Phase/wire

3 phase 4 wires

3.9

Isolation

H

4. Protective function of operation

5. Generator standard configuration and accessory

6. Warranty

7.Certificate & Document
