Best Supplier Yuchai Diesel Generator Super Slient
US$ 3,999 - 19,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Boomaster yuchai
Model Number:
BYCseries
Payment & Shipping
Payment Methods:
Port of Shipment:
FuZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Top Sale Yuchai Diesel Generators Buy ChinaUS$ 7,999 - 9,999MOQ: 1 Set -
GG3000 Portable Gasoline Generator in South AfricanUS$ 150 - 170MOQ: 1 Set
-
Prices of Portable Diesel Generator in South AfricanUS$ 400 - 900MOQ: 1 Set
-
Portable Gasoline Generator on China MarketUS$ 260 - 280MOQ: 1 Set
-
GG3000 Portable Gasoline Generator New Product on China MarketUS$ 150 - 170MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Boomaster yuchai
Model Number
BYCseries
Output Type
AC Three Phase
Speed
1500/1800rpm
Frequency
60Hz
Rated Power
200kw
Rated Voltage
220v/380v 230v/400v
Rated Current
380A
Specifications
Best supplier yuchai diesel generator super slient1 .Vol /Fre: 230/400V 50Hz
2.Power factor: 0.8
Best supplier yuchai diesel generator super slient
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| Genset Specification | |
| Genset Model | BYC-100 |
| Prime Power(Kva/Kw) | 78KW/98KVA |
| Structure type | Open/Silent |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | YC6B120Z-D20 |
| Alternator Model | STG224G |
| DimensionL*W*H(mm) | |
| Open Type | 2400*880*1530 |
| Weight | 1500 |
| Silent Type | 2500*980*1630 |
| Weight(Kg) | 1550 |
| Engine Detail | |
| Engine Brand | Yuchai Diesel engine |
| Model | YC6B120Z-D20 |
| Engine speed | 1800rpm |
| Engine power | |
| …………Standby power | 86KW |
| …………Prime power | 78KW |
| Type | 4cycle,in-line,6-cylinder |
| Aspiration | Turbocharged, |
| Governor | electrical |
| Bore*Stroke | 108*125mm |
| Displacement | 6.871 Litres |
| Compression ratio | 17.5:1 |
| Alternator Detail | |
| Manufacturer | Fuzhou Boomaster Power Co.,Ltd |
| Model | STG224G |
| Output power | 78KW |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Altitude | ≤1000m |
| Overspeed | 2250rpm |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ±0.5% |
| Sustained short circuit current | 300%(3IN):10s |
| Total haarmonics (TGH/THC) | <4% |
| Wave form:Nema=TIF | <50 |
| Wave form:I.E.C=THF | <2% |
| Bearing | single |
| Coupling | Direct |
Generator soundproof/Silent and canopy
Ø Excellent ventilation
Ø Black finish stainless steel locks and hinges
Ø Zinc plated or stainless steel fasteners
Ø Body made from steel components treated with polyester powder coating
Ø Two large doors on either side
Ø Radiator fill access plate
Ø Fully guarded cooling fan and battery charging alternator
Ø Fuel fill and battery access via lockable access doors
Ø Emergency stop button on canopy exterior
Ø Lube oil drain and radiator drain to exterior
Ø Control panel viewing window
Ø Lifting points on base frame
Ø 1m<80DBA / 7m<70DBA
Generator set warranty and maintenance:
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance with low price

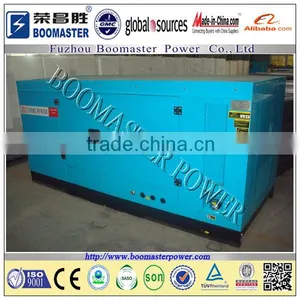

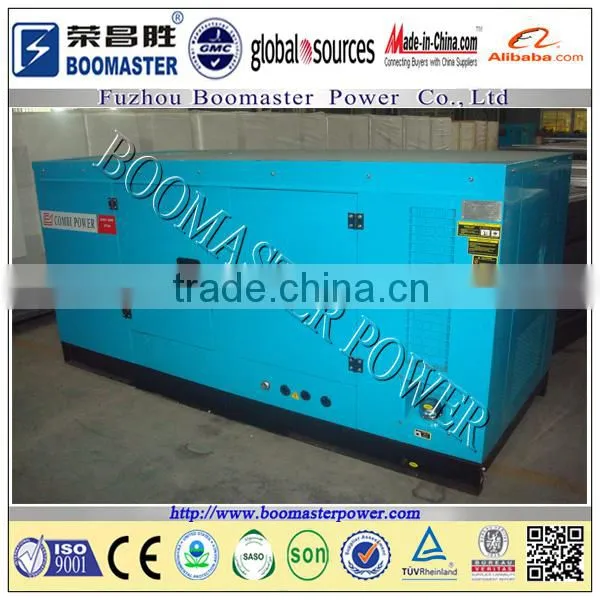

Slient yuchai power generator

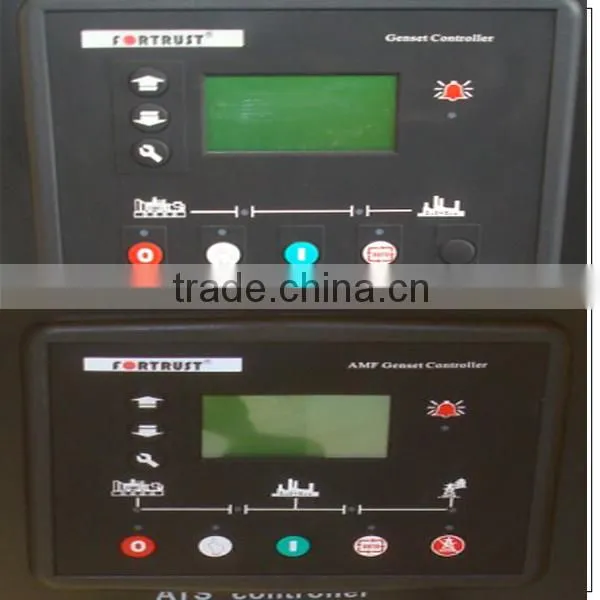

Controller
Factory
Exhibition
Certificate
