85kva Quanchai Diesel Generator Manufacture and Supplier in China
US$ 6,999 - 7,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
boomaster quanchai
Model Number:
BQ-85
Payment & Shipping
Payment Methods:
Port of Shipment:
FuZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
60kva Quanchai Diesel Generator Manufacture and Supplier in ChinaUS$ 4,999 - 5,999MOQ: 1 Set -
Good Factory of Slient Quanchai Diesel Generator 50kva With ISO9000US$ 4,999 - 5,999MOQ: 1 Set
-
Good Factory of Slient Quanchai Diesel Generator 40kva With ISO9000US$ 3,999 - 4,999MOQ: 1 Set
-
Good Factory of Quanchai Diesel Generator With Cheap 30kvaUS$ 3,999 - 4,999MOQ: 1 Set
-
Famous Manufactur ! CE Approved 25kva Quanchai Low Price of Generator With Best ServiceUS$ 2,999 - 3,999MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
boomaster quanchai
Model Number
BQ-85
Output Type
AC Three Phase
Speed
1500/1800Rpm
Frequency
50/60Hz
Rated Power
68Kw
Rated Voltage
220V/380V 230V/400V
Rated Current
129A
Specifications
1.Rated power:10kva to 250kva2.Vol /Fre: 230/400V 50Hz
3.Power factor: 0.8
4.Silent
Quanchai diesel generator manufacture and supplier
in china 85kva
Model
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |

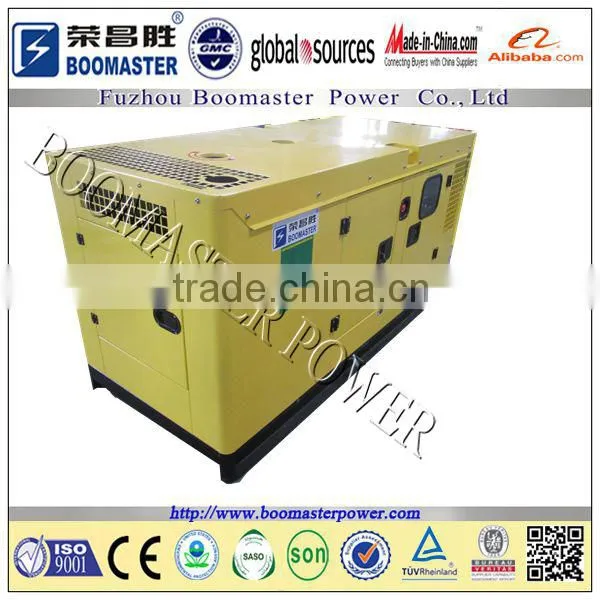

| 85Kva Quanchai diesel generator | |
| Genset Specification | |
| Genset Model | BQ-85 |
| Prime Power(Kw/Kva) | 68/85 |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | QC4112ZD |
| Alternator Model | STG224G |
| Open type DimensionL*W*H(mm) | 2100*850*1100 |
| Weight(Kg) | 1150 |
| Silent type DimensionL*W*H(mm) | 2300*1100*1300 |
| Weight(Kg) | 1250 |
| Engine Detail | |
| Manufacturer | Quanchai engine Co.,Ltd |
| Model | QC4112ZD |
| Engine speed | 1500rpm |
| Engine power | |
| …………Prime power | 85KW(50Hz) |
| Type | vertical,4 cylinder,in-line,water-cooled,four-stroke |
| Aspiration | Turbocharged |
| Governor | electrical |
| Bore*Stroke | 112*135mm |
| Alternator Detail | |
| STG224G | |
| Output power(Kw/Kva) | 68/85 |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | 0.50% |
| Total haarmonics (TGH/THC) | 4% |
| Wave form:Nema=TIF | 50 |
| Wave form:I.E.C=THF | 2% |
| Bearing | single |
| Coupling | Direct |
Generator soundproof/Silent and canopy
Ø Excellent ventilation
Ø Black finish stainless steel locks and hinges
Ø Zinc plated or stainless steel fasteners
Ø Body made from steel components treated with polyester powder coating
Ø Two large doors on either side
Ø Radiator fill access plate
Ø Fully guarded cooling fan and battery charging alternator
Ø Fuel fill and battery access via lockable access doors
Ø Emergency stop button on canopy exterior
Ø Lube oil drain and radiator drain to exterior
Ø Control panel viewing window
Ø Lifting points on base frame
Ø 1m<80DBA / 7m<70DBA
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance
