Yuchai Diesel Magnetic Free Power Generator

Name: Yuchai Diesel Magnetic Free Power Generator
Brand: Boomster
SKU: 103714719
Availability: InStock

US$ 2,400 - 42,600 MOQ: 1 Set

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Boomster

Model Number:

BYC-60

Elephant Tech Fuzhou Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Fuzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Boomster

Model Number BYC-60

Output Type AC Three Phase

Speed 1,500rpm

Frequency 50Hz/60Hz

Rated Power 50KW

Rated Voltage 220V/380 230V/400V

Rated Current 164.02A

Specifications

Engine Brand:Yuchai Diesel engine
Type:4cycle,in-line,4-cylinder
Aspiration: Turbocharged
Exciter type:Shunt

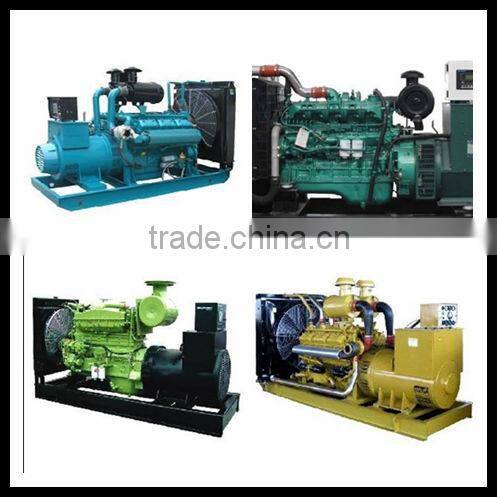

yuchai diesel magnetic free power generator

Product Overview

1) Brand-new engine,w/start motor.

2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.

3) Auto control panel with LCD display.

4) Engine mounted battery-charging alternator,Genset with battery charge of main supply.

5) Circuit Breaker,Exhaust Silencer.

6) Copper Radiator for 40°C ambient temperature and double-deck cooling,with fan guard and front guard.

7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable.

8) Skid-mounted bottom 8 hours fuel tank.

9) Extemal recessed emergency stop button for extra safety.

10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.

Genset Model	BYC-60
Prime Power(Kva/Kw)	50KW/63KVA

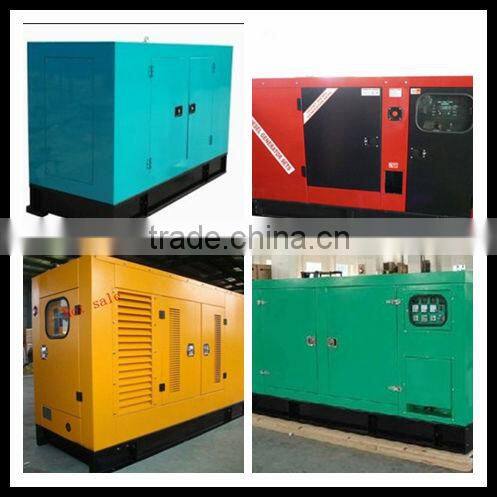

Structure type	Open/Silent
Dba"@7m	silent genset 55-78 dba @ 7m , open type75-98 dba @7m
Engine Model	YC4D80Z-D20
Alternator Model	STG224D
DimensionLWH(mm)
Open Type	23608801530
Weight	1400
Silent Type	24609801630
Weight(Kg)	1450

Engine Detail
Engine Brand	Yuchai Diesel engine
Model	YC4D80Z-D20
Engine speed	1800rpm
Engine power
…………Standby power	60KW
…………Prime power	55KW
Type	4cycle,in-line,6-cylinder
Aspiration	Turbocharged,
Governor	electrical
Bore*Stroke	108*115mm
Displacement	4.214 Litres
Compression ratio	17.5:1

Alternator Detail
Manufacturer	Fuzhou Boomaster Power Co.,Ltd
Model	STG224D
Output power	50KW
Number of phase	3
Power factor(Cos Phi)	0.8
Altitude	≤1000m
Overspeed	2250rpm
Number of Pole	4
Exciter type	Shunt
Insulation class	H
Voltage regulation	±0.5%
Sustained short circuit current	300%(3IN):10s
Total haarmonics (TGH/THC)	<4%
Wave form:Nema=TIF	<50
Wave form:I.E.C=THF	<2%
Bearing	single
Coupling	Direct

Generator optional:

Engine	Heater	Battery Charger
Fuel System	Daily Fuel Tank	Base Fuel Tank
Control System	Auto Control Panel	Remote Control Panel	Auto Transfer Switch (ATS) Control Panel
Alternator	Single phase, three phase	Brushless, carbon brush
Type	Weatherproof Type	Soundproof Type	Trailer type
Spare Parts	Fuel filer, Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List
