Specifications
silent type three phase 40kva diesel generator1.Engine model:Chinese engine
2.Alternator: brushelss with AVR
3.fast deliver

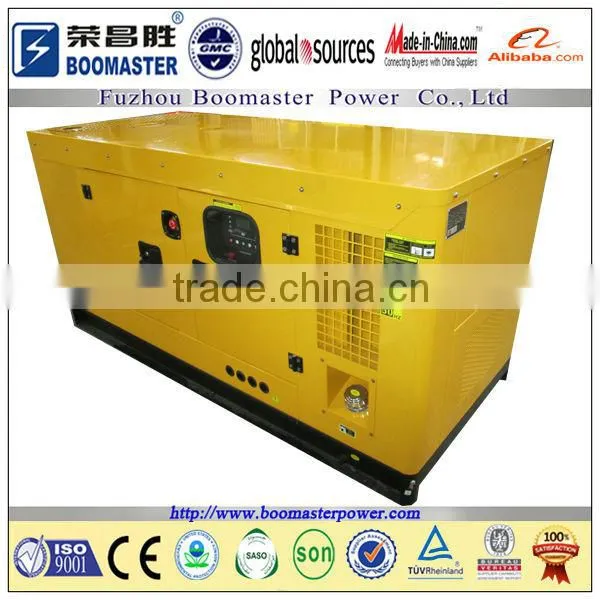

silent type three phase 40kva diesel generator
Generator Set Specification
Ø .Engine: Water cooled ,Four stock,3.4.6 cylinder Chinese engine
Ø .Alternator:brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
Ø .Soundproof canopy available
Ø .Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
Ø .Digital control panel, with LCD display.
Ø .Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
Ø .Circuit Breaker,Exhaust Silencer
Ø .Copper Radiator for 50°C ambient temperature and bouble-deck cooling,with fan guard and front guard
Ø .Antivibration pads are fixed between engine/alternator and base frame,as to ensure the compete genset running under stablilization.
Ø .Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
Ø .External recessed emergency stop button for extra safety
Ø .The colors & Brands by your requests
Ø .Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
Available model
| Model | 50Hz,400/230,COS=0.8, 3phase4wires | Parameters of Weichai diesel engine 1500rpm |
L/hr Fuel consumption (full load) |
Dimention & weight |
|||||||
| Genset output | Size(mm) | Weight(kg) | |||||||||
| Prime KW / KVA |
Standby KW / KVA |
Engine model | Engine rated power KVA / KW |
Cylinder No./Type | L×W×H | Weight | |||||
| Power by YUCHAI engine | |||||||||||
| BYU-40 | 32 | 40 | 35.2 | 44 | YC4108D | 40 | 50 | 4 | 9 | 1980X850X1250 | 940 |
| BYU-50 | 40 | 50 | 44 | 55 | YC4108ZD | 50 | 62.5 | 4 | 11 | 1980X850X1450 | 1020 |
| BYU-63 | 50 | 62.5 | 55 | 68.75 | YC6105D | 63 | 78.75 | 6 | 14.1 | 2360X880X1530 | 1400 |
| BYU-75 | 60 | 75 | 66 | 82.5 | YC6108D | 70 | 87.5 | 6 | 16.9 | 2360X880X1530 | 1450 |
| BYU-88 | 70 | 87.5 | 77 | 96.25 | YC6108ZD | 84 | 105 | 6 | 19.3 | 2400X880X1530 | 1500 |
| BYU-100 | 80 | 100 | 88 | 110 | YC6108ZLD | 98 | 122.5 | 6 | 21.5 | 2680X1080X1550 | 1620 |
| BYU-150 | 120 | 150 | 132 | 165 | YC6A190D | 138 | 172.5 | 6 | 33 | 3000X1100X1550 | 2070 |
| BYU-150 | 120 | 150 | 132 | 165 | YC6112ZLD | 150 | 187.5 | 6 | 34 | 3000X1100X1550 | 2070 |
| BYU-250 | 200 | 250 | 220 | 250 | YC6M320D | 235 | 293.75 | 6 | 53.4 | 3080X1140X1750 | 2390 |
Generator set warranty and maintenance:
Ø five hours full loading testing before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo
Ø After expiration, we provide spare parts maintenance with low price.

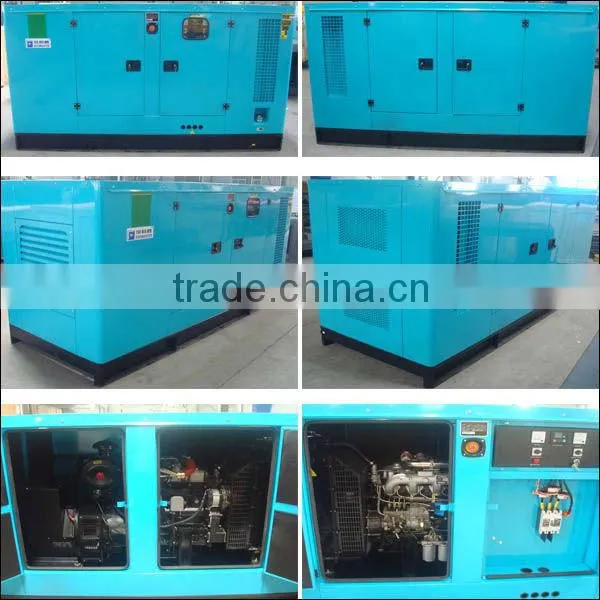

genset with Canopy:

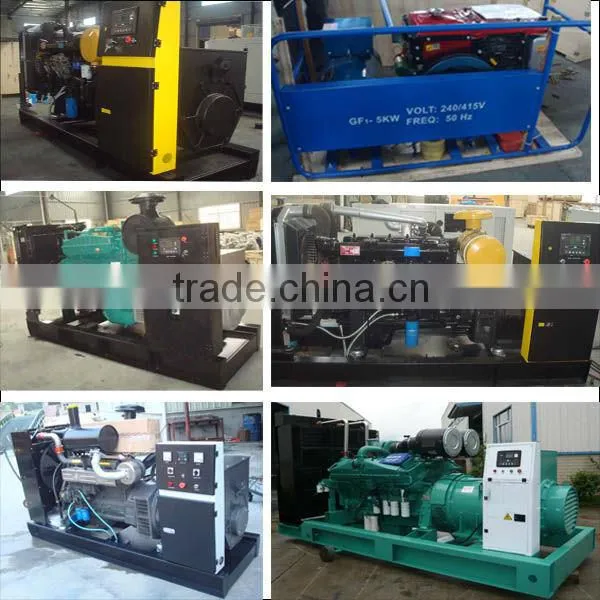

Open frame genset available :

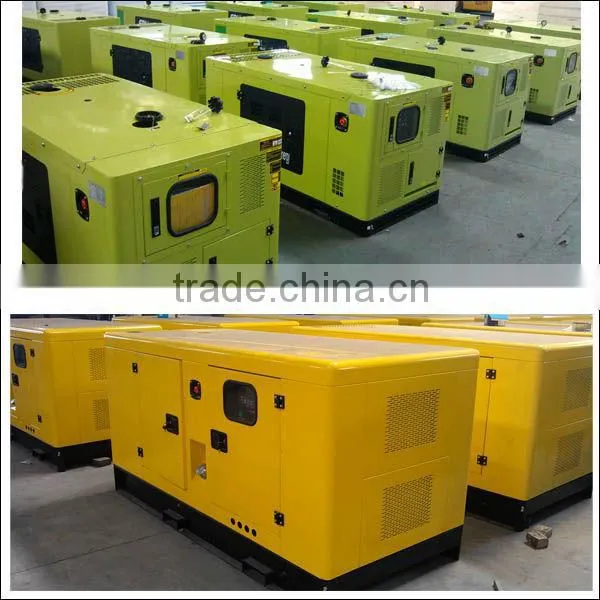

Factory photo
Exhibition
Certificate
