Specifications
1.rated power:50kw2.Vol : 230/400V
3. Power factor:0.8
4.one year warranty
China Brand 50 kw Silent Self Powered Electric Generators
Generator Supply Scope:
Ø .Standrad tool kits and complete operation/maintenance/spare parts manuals to Engine/Alternator
Ø .brand-new engine, w/ start motor.
Ø .brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR.
Ø .auto control panel, with LCD display.
Ø .Engine mounted battery-charging alternator, Genset with battery charger of mains supply.
Ø .Circuit Breaker,Exhaust Silencer
Ø .Copper Radiator for 50°C ambient temperature and bouble-deck cooling,with fan guard and front guard
Ø .Antivibration pads are fixed between engine/alternator and base frame,as to ensure the compete genset running under stablilization.
Ø .Skid-mounted bottom Fuel tank - 8hrs continous running(bigger fuel tank by your demand under extra cost)
Ø .External recessed emergency stop button for extra safety
Ø .The colors & Brands by your requests
Ø .Optional Choice:Soundproof, ATS (automatic transfer switch), AMF panel, Trailer, Parallel system by your extra choose.
Detail information
| Genset Specification | |
| Genset Model | BYC-50 |
| Prime Power(Kva/Kw) | 50/40 |
| Structure type | Open/Silent |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | YC4D85Z-D20 |
| Alternator Model | STG224D |
| DimensionL*W*H(mm) | |
| Open Type | 1982*850*1250 |
| Weight | 950 |
| Silent Type | 2082*950*1350 |
| Weight(Kg) | 1000 |
| Engine Detail | |
| Engine Brand | Yuchai Diesel engine |
| Model | YC4D85Z-D20 |
| Engine speed | 1500rpm |
| Engine power | |
| …………Standby power | 60.5KW |
| …………Prime power | 55KW |
| Type | 4cycle,in-line,4-cylinder |
| Aspiration | Turbocharged, |
| Governor | electrical |
| Bore*Stroke | 108*115mm |
| Displacement | 4.214 Litres |
| Compression ratio | 17.5:1 |
| Alternator Detail | |
| Manufacturer | Fuzhou Boomaster Power Co.,Ltd |
| Model | STG224D |
| Output power | 50KW |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Altitude | ≤1000m |
| Overspeed | 2250rpm |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ±0.5% |
| Sustained short circuit current | 300%(3IN):10s |
| Total haarmonics (TGH/THC) | <4% |
| Wave form:Nema=TIF | <50 |
| Wave form:I.E.C=THF | <2% |
| Bearing | single |
| Coupling | Direct |
Generator set warranty and maintenance:
Ø Do the full power load test for five hours before package.
Ø One year or 1000 working hours, whichever comes first, global warranty for Cummins. Deutz, UK P, Volvo, Daewoo.
Ø After expiration, we provide spare parts maintenance with low price.
Other pictures:

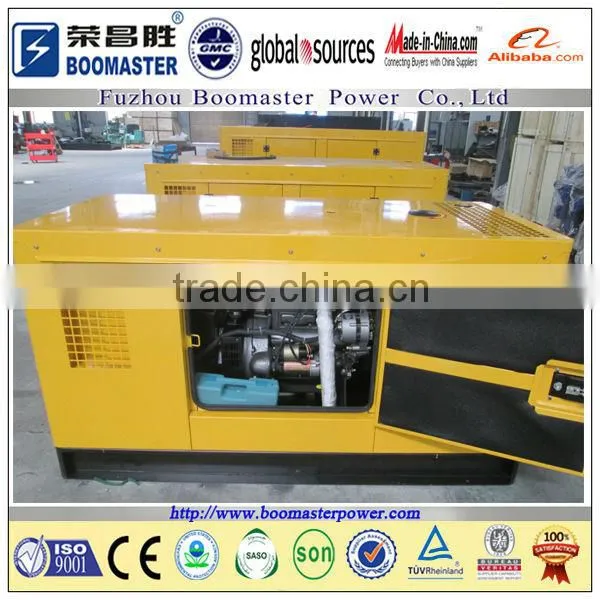

Silent diesel generator
Our factory
Certification
