Help CenterDiessel and Gas Double Fuel Fired Thermal Oil Boiler for Stenter
Related Products
-
Horizontal Furnace Oil and Gas Double Fuel Fired Thermal Oil BoilerUS$ 20,000 - 500,000MOQ: 1 Set -
Industrial Vertical Oil Gas Fired Thermal Oil Boiler for Textile Dyeing and Printing IndustryUS$ 9,000 - 500,000MOQ: 1 Set
-
Light Oil or Gas or Heavy Oil Fired Vertical Type Thermal Oil BoilerUS$ 20,000 - 500,000MOQ: 1 Set
-
Pellets Wood Burner Thermal Oil BoilerUS$ 10,000 - 300,000MOQ: 1 Set
-
Dhaka Wood Pellet Boiler Hot Oil BoilerUS$ 12,000 - 150,000MOQ: 1 Set
Class A Horizontal oil&gas fired thermal oil boiler price
Specifications

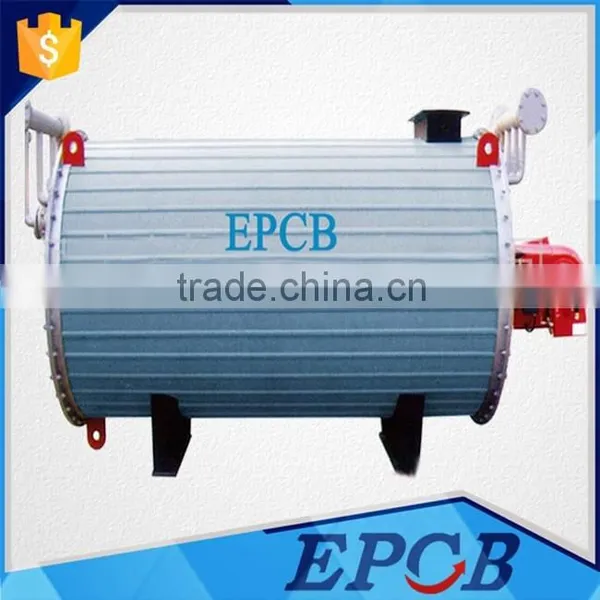

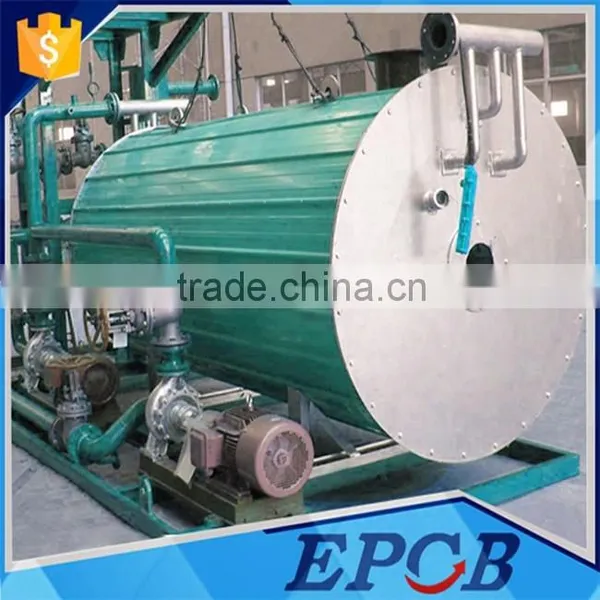

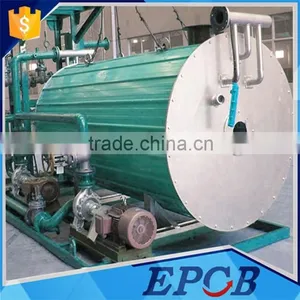

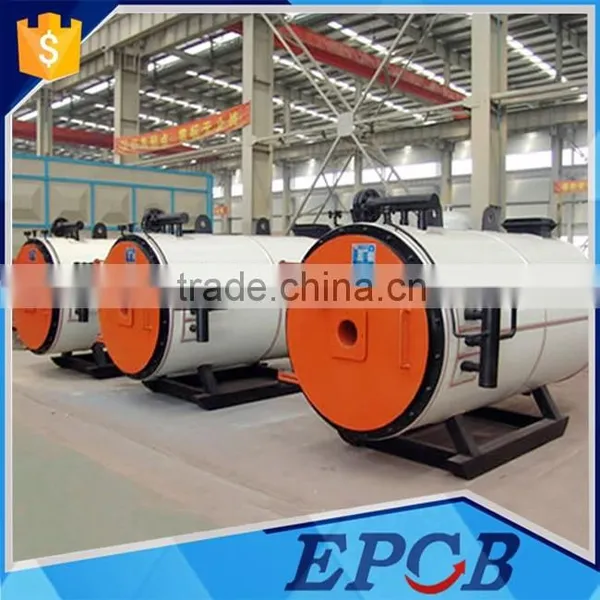

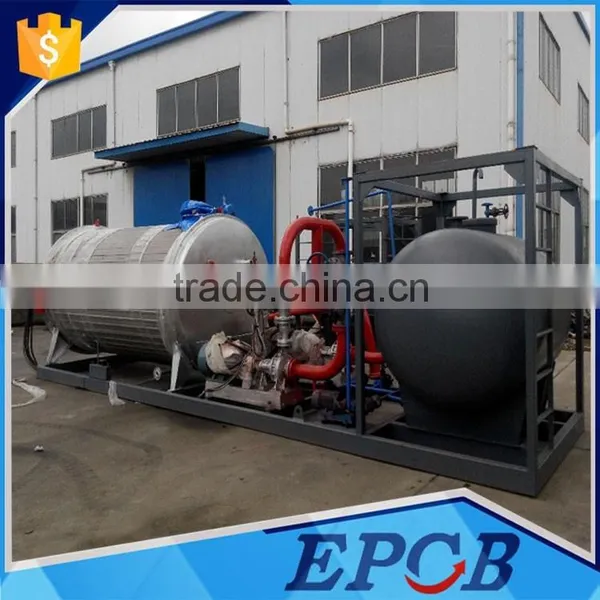

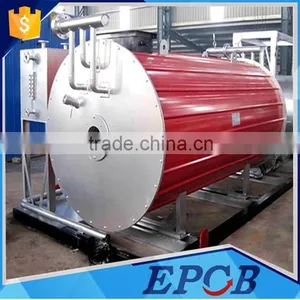

Horizontal thermal oil boiler
high temp. hot oil as heat source
Operation safety, system simple
High heat excharge efficiency
| I. Brief introduction of strength: 1. Quality: A grade boiler, A1, A2 grade pressure vessel manufacturing company. All products have passed ISO9001:2008 & ASME International Quality Management System Certification, also can provide CE, AS, GOST certification. 2. Management: In order to ensure the quality, we strictly monitor the comprehensive quality system from raw material procurement & re-testing & process to storage. All the steels and pipes are purchased from developed countries & the well-known large domestic enterprises. 3. Welding: Welding mainly uses advanced automatic welding, gas protected welding, TIG welding. Drum and other main pressure parts adopt CNC automatic welding, all of the welding 100% passed penetrant inspection. 4. Market: Our products have been exported to more than 40 countries, such as Australia, USA, Japan, Canada, Russia, Thailand, Mexico, Cyprus, Pakistan, Angola, Mongolia, etc. And supply parts for many Power Plant Projects. | |||||||||
| II. Production Description | |||||||||

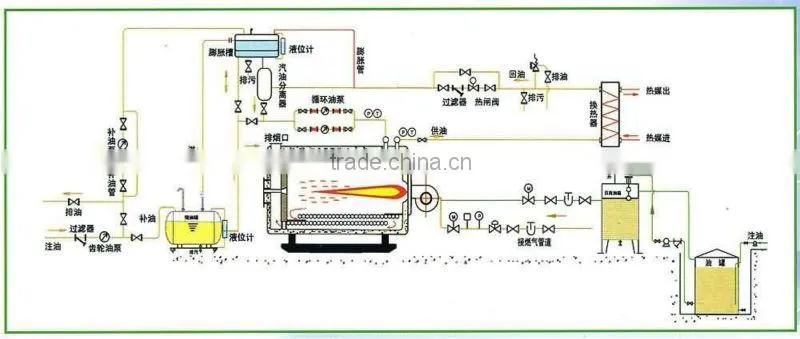

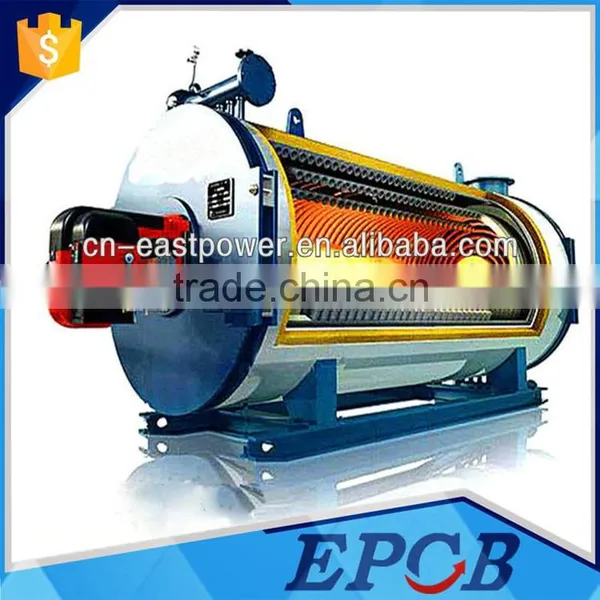

| 1-Thermal oil boiler is to use low pressure high temperature hot oil as heat source more safety than steam boiler, also it's convenient and precise for temperature control. 2-Hot oil as heat source saving water, also no need install water treatment equipment. Avoiding the terrible of high quality water of steam boiler. 3-The system of thermal oil boiler is more sample than steam boiler. 4-The position between the burner joint and the coil is sealed with good seal, large flexible space, to increase the service life of burner and enhance the heating efficiency. 5-Triple coil structure is adopted by the boiler with three-pass flue gas, compact design and space-saving. Heating efficiency of the air pre-heater enhance up to 92% or more. 6-Multiple running with safety protection make boiler’s operation more safety and simply. High temperature control precision (± l'C) and good combustion effect. 7-Automatic control functions, to extend the service life of equipment while saving human resources. | |||||||||
| Rated power | KW | 350 | 700 | 1400 | 2400 | 3500 | 4000 | 4600 | 6000 | 7000 | 9600 | 12000 |
| ×104 kcal/h | 30 | 60 | 120 | 200 | 300 | 350 | 400 | 500 | 600 | 800 | 1000 | |
| Design efficiency (%) | 83~87% | |||||||||||
| Rated working pressure (Mpa) | 1 | |||||||||||
| Max. operating temperature (°C) | 350 | |||||||||||
| Circulation oil capacity (m³/h) | 30 | 50 | 100 | 160 | 230 | 230 | 250 | 300 | 400 | 500 | 600 | |
| 60#heavy oil (Kg/h) | 40.6 | 81.2 | 162 | 270 | 406 | 473 | 541 | 676 | 812 | 1082 | 1353 | |
| Diesel (Kg/h) | 39 | 78 | 156 | 261 | 392 | 457 | 522 | 653 | 784 | 1045 | 1307 | |
| Natural gas (Nm³/h) | 47 | 95 | 190 | 317 | 476 | 555 | 635 | 793 | 952 | 1269 | 1587 | |
| LPG (Nm³/h) | 15.6 | 31 | 62.5 | 104 | 156 | 182 | 208 | 260 | 312 | 416 | 520 | |
| City Gas (Nm³/h) | 100 | 200 | 400 | 666 | 1000 | 1166 | 1333 | 1666 | 2000 | 2666 | 3333 | |
| Max. transport size | L | 2370 | 3580 | 4760 | 5200 | 5750 | 6650 | 6750 | 6980 | 7090 | 7340 | 7660 |
| W | 1470 | 1760 | 2350 | 2800 | 2880 | 2900 | 3210 | 3450 | 3680 | 4080 | 4360 | |
| H | 1680 | 1960 | 2500 | 3050 | 3340 | 3450 | 3610 | 3820 | 4110 | 4560 | 4980 | |
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Why do you choice our boiler?
1. Lower dust emission & SO2 emission & NOx emission, dust emission concentration < 30mg/m³
SO2 & NOx emission concentration < 18mg/m³
2. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
3. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
4. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
5. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
