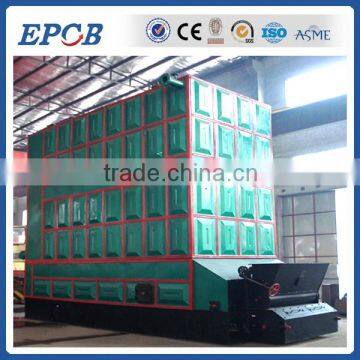

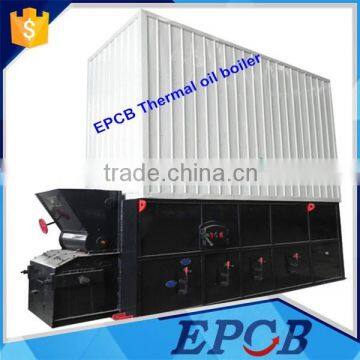

Industrial Boiler, Coal Boilers, Thermal Oil Heater, Big Boiler
A: Features of coal-fired thermal oil heater
1. Low steel consumption,high air leakage efficient, high coal leakage volume,
suitable to burn I II soft coal
2. Adoption of automatic temperature control function is made to achieve stable
heating and precise temperature adjustment.
3. It adopts perfect running control and safety monitoring device with safety,reliability
and easy operation.
4. Fast temperature rise,high thermal efficiency, with overload capacity at a certain
degree to ensure output of boiler.
B: Parameter coal fired thermal oil heater
| Horizontal China Grate Coal-fired Thermal Oil Boiler | ||||||||||||||||
| Model | YLW-1900MA-160 | YLW-2300MA-200 | YLW-3000MA-250 | YLW-3500MA-300 | YLW-4000MA-350 | YLW-4600MA-400 | YLW-6000MA-500 | YLW-7000MA-600 | YLW-8000MA-700 | YLW-9300MA-800 | YLW-10000MA-900 | YLW-12000MA-1000 | YLW-14000MA-1200 | YLW-16500MA-1400 | YLW-19000MA-1600 | |
| Rated Power | KW | 1900 | 2300 | 3000 | 3500 | 4000 | 4600 | 6000 | 7000 | 8000 | 93000 | 10000 | 12000 | 14000 | 16500 | 1900 |
| x104 kcal/h | 160 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1400 | 1600 | |
| Design Thermal Efficiency(%) | >=79 | |||||||||||||||
| Rated Working pressure(MPa) | 1 | |||||||||||||||
| Max. Working temperature('C) | 320 | |||||||||||||||
| Thermal Oil Capacity(m3) | 2.8 | 3.5 | 4.85 | 5.4 | 5.8 | 6.8 | 7.9 | 8.8 | 9.8 | 13.5 | 14.8 | 15.6 | 16.9 | 18.1 | 19.4 | |
| Circulation oil capacity (m3/h) | 165 | 200 | 225 | 280 | 280 | 300 | 340 | 400 | 400 | 520 | 600 | 680 | 800 | 800 | 800 | |
| Main valve size | DN150 | DN150 | DN150 | DN200 | DN200 | DN200 | DN250 | DN250 | DN250 | DN300 | DN325 | DN350 | DN350 | DN400 | DN400 | |
| Whole system power KW | 75 | 85 | 85 | 130 | 130 | 150 | 180 | 205 | 205 | 260 | 280 | 310 | 315 | 320 | 350 | |
| Available fuel | AI, AII, AIII soft coal | |||||||||||||||
| Weight (KG) | 21500 | 23000 | 24000 | 29500 | 32000 | 35000 | 45000 | 64000 | 66500 | 66800 | 87600 | 98000 | 128500 | 146000 | 168000 | |
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Why do you choice our boiler?
1. Lower dust emission & SO2 emission & NOx emission, dust emission concentration < 30mg/m³
SO2 & NOx emission concentration < 18mg/m³
2. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
3. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
4. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
5. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.
Our Main Product scope:
1. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
2. SZS series Horizontal Oil/gas fired boiler (4- 35T/H )
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )

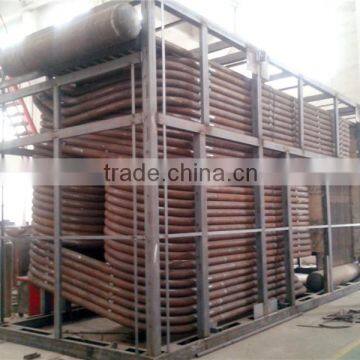

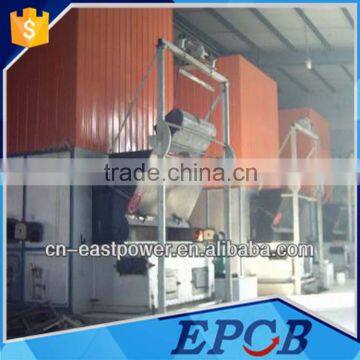

D: Details about coal fired thermal oil heater
|
|
| Natural Circulation Oil Natural Gas Boilers, Hot Water Boilers | Wood Boilers, Wood Pellet Boilers, Steam Boilers |
|
|
| YY(Q)L Series Oil Gas Fired Thermal Oil Boiler | Wood logs fixed grate boilers steam boilers |
