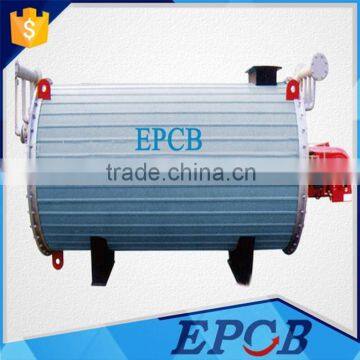

EPCB Oil Gas Combi Boiler Thermal Oil Furnace Boiler
1.Features of the product
1.Good seal,large flexible space to increase the service life of the burner

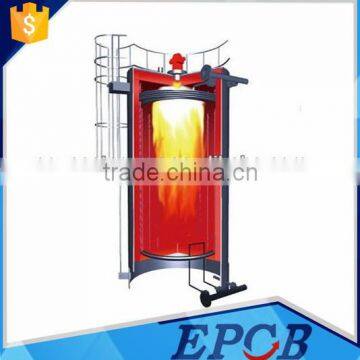

2.triple coil structure is adopted by the boiler with three-pass flue gas, campact design and space-saving.
3.High efficiency of the air pre-heater enhance up to 92% or more.
4. Multiple running with safety protection make boiler's operation more safety and simply.
5.High temperature control precision and good combustion effect.
6.Automatic control functions, to extend the service life of equipment while saving human resources.
2. Advantages of gas boiler and service
1),100%safety, running stably, excellent water level and pressure control, fully automatic operation
2), Boiler running life > 20years.
3), Good after-sale service. It is free for you to get the damaged spares in warranty period(1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4), We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5), Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
3.Technical Parameters for thermal oil boiler :
| YY(Q)W Type of Horizontal Oil(gas)-fired Thermal Oil Heater | ||||||||||||||||||
| Model | Y(Q)W-180-Y(Q) | Y(Q)W-240-Y(Q) | Y(Q)W-350-Y(Q) | Y(Q)W-600-Y(Q) | Y(Q)W-870-Y(Q) | Y(Q)W-1200-Y(Q) | Y(Q)W-1400-Y(Q) | Y(Q)W-1800-Y(Q) | Y(Q)W-2400-Y(Q) | Y(Q)W-3000-Y(Q) | Y(Q)W-3500-Y(Q) | Y(Q)W-4000-Y(Q) | Y(Q)W-4600-Y(Q) | Y(Q)W-6000-Y(Q) | Y(Q)W-7000-Y(Q) | Y(Q)W-9600-Y(Q) | Y(Q)W-12000-Y(Q) | |
| Rated Thermal Power | KW | 180 | 240 | 350 | 600 | 870 | 1200 | 1400 | 1800 | 2400 | 3000 | 3500 | 4000 | 4600 | 6000 | 7000 | 9600 | 12000 |
| x104 kcal/h | 15 | 20 | 30 | 50 | 75 | 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 800 | 1000 | |
| Design Thermal Efficiency(%) | >=83% | |||||||||||||||||
| Rated Working pressure(MPa) | 1.0 | |||||||||||||||||
| Max. Working temperature('C) | 320 | |||||||||||||||||
| Thermal Oil Capacity(m3) | 0.15 | 0.23 | 0.32 | 0.44 | 0.8 | 0.86 | 1.1 | 1.48 | 2.2 | 3.5 | 4.6 | 4.9 | 5.7 | 7.2 | 8.4 | 9.6 | 12.6 | |
| Circulation oil capacity (m3/h) | 18 | 20 | 30 | 60 | 80 | 100 | 100 | 150 | 200 | 200 | 230 | 230 | 250 | 300 | 400 | 500 | 580 | |
| 60# heavy oil (kg/h) | 20 | 27 | 40.2 | 67 | 100 | 134 | 162 | 203 | 270 | 338 | 406 | 472 | 540 | 672 | 815 | 1080 | 1350 | |
| Diesel (kg/h) | 19 | 26 | 39 | 65 | 98 | 130 | 154 | 196 | 260 | 326 | 393 | 454 | 520 | 650 | 785 | 1043 | 1302 | |
| Natural gas (Nm3/h) | 23 | 31 | 47 | 79 | 119 | 158 | 190 | 236 | 315 | 395 | 476 | 555 | 635 | 790 | 950 | 1265 | 1583 | |
| Liquefied petroleum gas (Nm3/h) | 7.7 | 10.5 | 15.3 | 26 | 38 | 51 | 62.3 | 77 | 103.5 | 130 | 155 | 178 | 207 | 260 | 310 | 415 | 521 | |
| Max. transport size | L (mm) | 1500 | 1950 | 2300 | 2920 | 3620 | 4100 | 4250 | 4400 | 4700 | 4980 | 5250 | 6190 | 6250 | 6480 | 6580 | 6850 | 7100 |
| W (mm) | 1100 | 1240 | 1450 | 1560 | 1780 | 2000 | 2150 | 2300 | 2600 | 2650 | 2780 | 2920 | 3050 | 3150 | 3380 | 3780 | 4050 | |
| H (mm) | 1500 | 1520 | 1680 | 1790 | 2050 | 2250 | 2300 | 2850 | 2850 | 3150 | 3250 | 3360 | 3300 | 3400 | 3600 | 4260 | 4600 | |
| Weight (T) | 1.5 | 1.65 | 2.7 | 3.9 | 5.2 | 7.5 | 8.2 | 10 | 12.9 | 17.5 | 20 | 20.8 | 29.2 | 42.5 | 49 | 59 | 63 | |
| Chimney Diameter | 250 | 300 | 300 | 350 | 350 | 400 | 400 | 400 | 500 | 500 | 650 | 650 | 650 | 700 | 700 | 850 | 1000 | |
Our Services:
1. 100%safety, running stably, excellent water level and pressure control, fully automatic operation.
2. Boiler running life > 20years.
3. Good after-sale service. It is free for you to get the damaged spares in warranty period (1 year) if there is any questions. Assure that we can supply you spares in boiler’s all life.
4. We can arrange engineer to your company for installation and commissioning and training. If you need us at any time, we can send our technicians and prepare in a short time.
5. Special paint is used after assembly. Paint is particularly used in your climate area, which is anti-corrosion, anti-abrasion and color-fastness.
Why do you choice our boiler?
1. Lower dust emission & SO2 emission & NOx emission, dust emission concentration < 30mg/m³
SO2 & NOx emission concentration < 18mg/m³
2. We supply 2 units Water Pump (one duty one standby) which from the famous pump manufacturer.
3. Boiler can achieve automatic temperature control & pressure control & feed water control & feed fuel control & safety indication.We also freely supply you a set of inner parts of Electric controller for standby.
4. Boiler with stainless cladding, anti-corrosion & anti-rust & beautiful appearance.
5. Comprehensive after-sales service. We can design layout drawings of boiler system according to your actual requirement.Also can dispatch engineer to guide installation & commissioning.
Our Main Product scope:
1. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
2. SZS series Horizontal Oil/gas fired boiler (4- 35T/H )
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Pingdu Qingdao established in 1993.
Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
Q: Do you have any Certificate?
A: Yes. Each of our boiler has China GB certificate. If you need CE ASME or AS, we can help you to get it.
Q: How to buy it?
A: Please contact me by email or online, let me know your factory situation, I will give you some advice which model mostly suitable to you.
Q: What about the delivery?
A: We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us
Q: How can I pay you?
A: T/T, LC is very well used.
Q: What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
Q: Could you offer some wear parts?
A: Yes, some chain grate bars, electric equipments in control panel box for example.
Q: What about the maintenance?
A: I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
|
|
